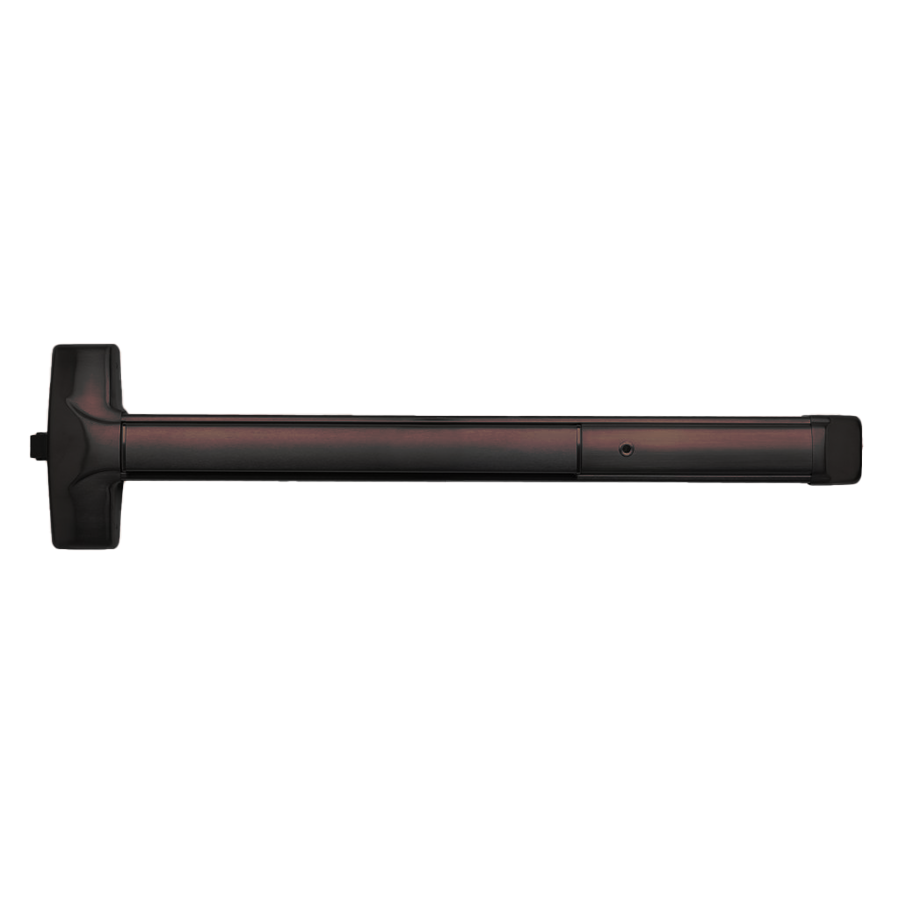

Detex 10-LD-695-48 Advantex Wide Stile Rim Exit Device, No Trim, 48in, Dark Bronze

Detex Corporation 10-LD-695-48 Advantex Wide Stile Rim Exit Only Device offers a robust solution for panic and fire exit needs, specifically designed for single and double doors with mullions. With its super-heavy-duty construction, this device ensures long-lasting performance in high-use and high-abuse environments. The patented mounting plate and strike locator system streamline installation, eliminating the need for complicated templates and enabling a quick setup that saves time and money. Its minimal door prep requirement further enhances convenience, making it an ideal choice for professionals. The heavy-duty angled end cap is engineered to deflect damage away from the device, ensuring durability. This exit device features a stainless steel deadlocking, Pullman-type latch bolt, and is tested to exceed 1,000,000 cycles, surpassing Grade 1 UL testing standards. The finish, a dark bronze painted surface, is not only aesthetically pleasing but also environmentally friendly, thanks to the PVD coating process. The Detex 10-LD-695-48 model is non-handed and adaptable to various door types, including wood, hollow metal, and fiberglass. With its easy maintenance and re-keying capabilities, it stands as a reliable option for effective safety and accessibility in commercial and residential settings.

Advantex Wide Stile Rim Exit Only Device, No Trim, Less Dogging, 48in, 695/SP313 Dark Bronze Painted

The 10 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Patented mounting plate and strike locator system replaces paper templates
• Fast and easy installation saves time and money
• Minimal door prep saves time and money
• Outside trims are easily changed or re-keyed without removing device from door
• Heavy duty angled end cap deflects damage away from device

Features:

• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• Tested beyond 1,000,000 cycles - Twice the cycling required for Grade 1 UL testing
• Non-handed
• Stainless steel deadlocking, Pullman-type latch bolt
• Field sizeable
• 1/8 turn hex or cylinder dogging

Mechanical Options:

• F - 3-Hour Fire Rated
• H - Hurricane Rated
• AM - Anti-Microbial Coating
• CD - Cylinder Dogging
• HD - Hex Dogging (Std.)
• LD - Less Dogging
• SLR - Silencer
• 99 - Surface Strike (Std.)
• 98 - Semi Mortise Strike
• EC1 - Heavy duty angled end cap (Std.)
• EC2 - Flush end cap
• 24 - Fits 24" Door Width
• 30 - Fits 30" Door Width
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Latch Retraction with Request to Exit Switch (ER EX)
• Delayed Egress - Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Integration (EI)
• Electric Unlock (EU)
• Latch Bolt Signaling (LX)
• Latch Bolt Signaling for High Voltage (LXV)
• Electric Switching (ES)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• GB1 - Glass Bead Kit
• SN1 - Sex Nut Kit (2 per package)
• SSK - Security Torx Screw Kit
• Trim Functions (see Outside Trims)

Technical Information:

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4" doors
• Minimum Stile - 4-5/8" with standard 99 strike; 4-1/8" with optional 98 strike
• Fasteners - Machine and Self- Drilling Screws standard

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Brushed Brass
• 611/US9 - Polished Bronze
• 612/US10 - Brushed Bronze
• 613/US10B - Oil Rubbed Bronze
• 628/US28 - Aluminum Satin
• 629/US32 - Polished Stainless Steel
• 630/US32D - Brushed Stainless Steel
• 693/SPBLK - Black, Painted
• 695/SP313 - Dark Bronze, Painted
