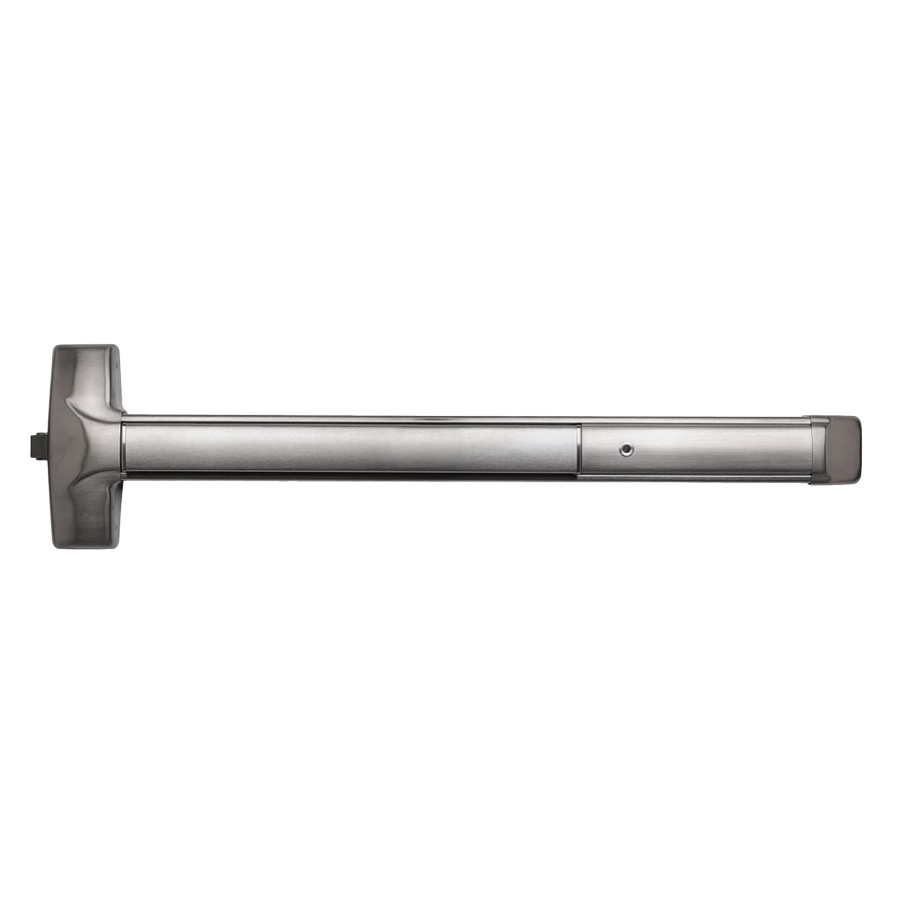

Detex 10-W-630-36 Advantex Weatherized Wide Stile Rim Exit Device, 36in, Satin Stainless Steel

Detex Corporation 10-W-630-36 Advantex Weatherized Wide Stile Rim Exit Only Device offers robust security and reliable performance for high-use environments. This super-heavy-duty panic and fire exit hardware is designed for both single and double doors, ensuring compliance with stringent safety standards, including UL panic and fire exit hardware ratings. Constructed for durability, the device features a stainless steel deadlocking Pullman-type latch bolt and is made with components resistant to temperature, dust, driving rain, and salt fog. The patented mounting plate and strike locator system simplify installation, minimizing door preparation time and cost. With a hex dogging mechanism, outside trims can be easily changed or re-keyed without removing the device from the door. Engineered to withstand over 1,000,000 cycles, this exit device exceeds Grade 1 UL testing requirements, making it ideal for high-traffic areas. Its weatherized design ensures reliable operation in inclement weather, while the heavy-duty angled end cap deflects damage away from the device, further enhancing its longevity. Available in a sleek satin stainless steel finish, this exit device not only provides safety but also complements various architectural styles. Choose the Detex 10-W-630-36 for a dependable, stylish solution to your exit hardware needs.

Advantex Weatherized Wide Stile Rim Exit Only Device, No Trim, Hex Dogging, 36in, 630/US32D Satin Stainless Steel

The 10xW Series weatherized rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of single doors and gates and double doors and gates with mullions that are or may be exposed directly to the weather. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available. In addition to listing as UL panic and fire exit hardware device, this device conforms to UL1034- 34 Temperature Section 34, UL1034-54 Dust Section 54, MIL-STD 810F, Method 506.4 (driving rain test); and MILSTD 810F, Method 509.4 (salt fog test).

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse or inclement weather environments
• Minimal door prep saves time and money
• Fast and easy installation saves time and money
• Patented mounting plate and strike locator replaces paper templates
• Outside trims are easily changed or re-keyed without removing device from door
• Heavy duty angled end cap deflects damage away from device

Features:

• Stainless steel deadlocking, Pullman-type latch bolt
• Assembled using components resistant to temperature, dust, driving rain and salt fog
• 1/8 turn hex or cylinder dogging
• Field sizeable
• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• Non-handed
• Fasteners made of stainless steel 316 material
• Tested beyond 1,000,000 cycles - Twice the cycling required for Grade 1 UL testing

Mechanical Options:

• H - Hurricane Rated
• AM - Anti-Microbial Coating
• BP-3 Mounting plate
• BP-5 Mounting Plate
• CD - Cylinder Dogging
• HD - Hex Dogging (Std.)
• LD - Less Dogging
• EC1 - Heavy duty angled end cap (Std.)
• EC2 - Flush end cap
• 99 - Surface Strike (Std.)
• 98 - Semi Mortise Strike
• 24 - Fits 24" Door Width
• 30 - Fits 30" Door Width
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width

Electrical Options:

• Electric Unlock (EU)
• Request to Exit Weatherized (EX W)
• Request to Exit Weatherized for High Voltage (EXV W)

Accessories:

• GB1 - Glass Bead Kit
• SN1 - Sex Nut Kit (2 per package)
• SSK - Security Torx Screw Kit
• Trim Functions (see Outside Trims)
• GTPLKIT - Adjustable Gate Plate

Technical Information:

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4" doors
• Minimum Stile - 4-5/8" with standard 99 strike; 4-1/8" with optional 98 strike
• Fasteners - Machine and Self-Drilling Screws standard stainless steel 316 material
• Recommended Plate Size
• Gate - 1/8" thick plate, galvanized, or painted steel or 1/4" thick aluminum plate, minimum height - 10"
• Strike - 1/8" thick plated, galvanized, painted steel plate, angle iron, or 1/4" thick aluminum plate, minimum Height - 5"
• Stop - 1/8 thick plated, galvanized, or painted angle iron or 1/4" thick aluminum angle plate, minimum Height - 2"

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Brushed Brass
• 611/US9 - Polished Bronze
• 612/US10 - Brushed Bronze
• 613/US10B - Oil Rubbed Bronze
• 628/US28 - Aluminum Satin
• 629/US32 - Polished Stainless Steel
• 630/US32D - Brushed Stainless Steel
• 693/SPBLK - Black, Painted
• 695/SP313 - Dark Bronze, Painted
