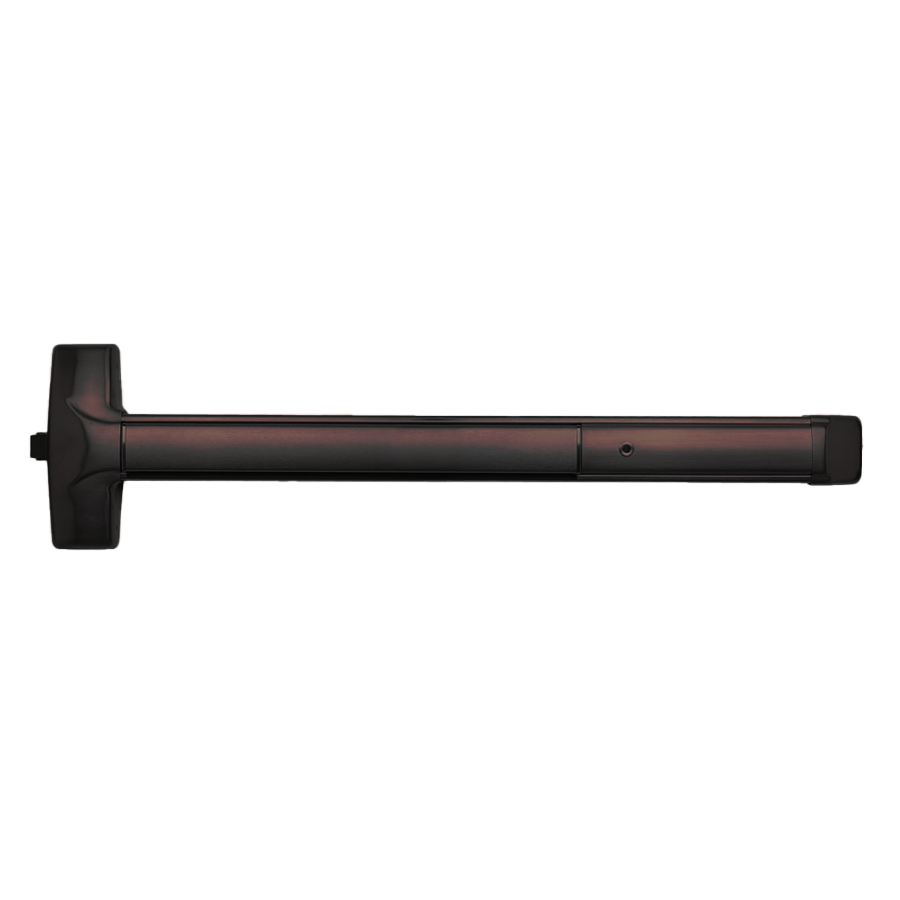

Detex 10-W-695-48 Advantex Weatherized Wide Stile Rim Exit Device, No Trim, 48in, Dark Bronze

Detex Corporation 10-W-695-48 Advantex Weatherized Wide Stile Rim Exit Only Device is engineered for superior performance in high-use environments, particularly those exposed to inclement weather. This heavy-duty panic and fire exit device is suitable for single and double doors and gates, ensuring safety and accessibility. Its patented mounting plate and strike locator system streamline installation, eliminating the need for complicated paper templates and saving time and resources. Constructed to withstand the elements, this exit device is tested to meet stringent UL standards for temperature, dust, driving rain, and salt fog, ensuring reliable operation even in harsh conditions. The 10-W-695-48 features a stainless steel deadlocking Pullman-type latch bolt, and its heavy-duty angled end cap protects against damage. With hex dogging as standard, the device provides quick access when needed. It accommodates standard door thicknesses of 1-3/4" to 2-1/4" and is non-handed for versatile installation. The dark bronze finish not only offers a sleek appearance but also enhances durability. Additionally, all fasteners are made from stainless steel 316 material, ensuring long-lasting performance. With over 1,000,000 cycle testing, this exit device is built to exceed the demands of any busy facility, making it an ideal choice for professionals seeking reliability and quality in security hardware.

Advantex Weatherized Wide Stile Rim Exit Only Device, No Trim, Hex Dogging, 48in, 695/SP313 Dark Bronze Painted

The 10xW Series weatherized rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of single doors and gates and double doors and gates with mullions that are or may be exposed directly to the weather. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available. In addition to listing as UL panic and fire exit hardware device, this device conforms to UL1034- 34 Temperature Section 34, UL1034-54 Dust Section 54, MIL-STD 810F, Method 506.4 (driving rain test); and MILSTD 810F, Method 509.4 (salt fog test).

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse or inclement weather environments
• Minimal door prep saves time and money
• Fast and easy installation saves time and money
• Patented mounting plate and strike locator replaces paper templates
• Outside trims are easily changed or re-keyed without removing device from door
• Heavy duty angled end cap deflects damage away from device

Features:

• Stainless steel deadlocking, Pullman-type latch bolt
• Assembled using components resistant to temperature, dust, driving rain and salt fog
• 1/8 turn hex or cylinder dogging
• Field sizeable
• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• Non-handed
• Fasteners made of stainless steel 316 material
• Tested beyond 1,000,000 cycles - Twice the cycling required for Grade 1 UL testing

Mechanical Options:

• H - Hurricane Rated
• AM - Anti-Microbial Coating
• BP-3 Mounting plate
• BP-5 Mounting Plate
• CD - Cylinder Dogging
• HD - Hex Dogging (Std.)
• LD - Less Dogging
• EC1 - Heavy duty angled end cap (Std.)
• EC2 - Flush end cap
• 99 - Surface Strike (Std.)
• 98 - Semi Mortise Strike
• 24 - Fits 24" Door Width
• 30 - Fits 30" Door Width
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width

Electrical Options:

• Electric Unlock (EU)
• Request to Exit Weatherized (EX W)
• Request to Exit Weatherized for High Voltage (EXV W)

Accessories:

• GB1 - Glass Bead Kit
• SN1 - Sex Nut Kit (2 per package)
• SSK - Security Torx Screw Kit
• Trim Functions (see Outside Trims)
• GTPLKIT - Adjustable Gate Plate

Technical Information:

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4" doors
• Minimum Stile - 4-5/8" with standard 99 strike; 4-1/8" with optional 98 strike
• Fasteners - Machine and Self-Drilling Screws standard stainless steel 316 material
• Recommended Plate Size
• Gate - 1/8" thick plate, galvanized, or painted steel or 1/4" thick aluminum plate, minimum height - 10"
• Strike - 1/8" thick plated, galvanized, painted steel plate, angle iron, or 1/4" thick aluminum plate, minimum Height - 5"
• Stop - 1/8 thick plated, galvanized, or painted angle iron or 1/4" thick aluminum angle plate, minimum Height - 2"

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Brushed Brass
• 611/US9 - Polished Bronze
• 612/US10 - Brushed Bronze
• 613/US10B - Oil Rubbed Bronze
• 628/US28 - Aluminum Satin
• 629/US32 - Polished Stainless Steel
• 630/US32D - Brushed Stainless Steel
• 693/SPBLK - Black, Painted
• 695/SP313 - Dark Bronze, Painted
