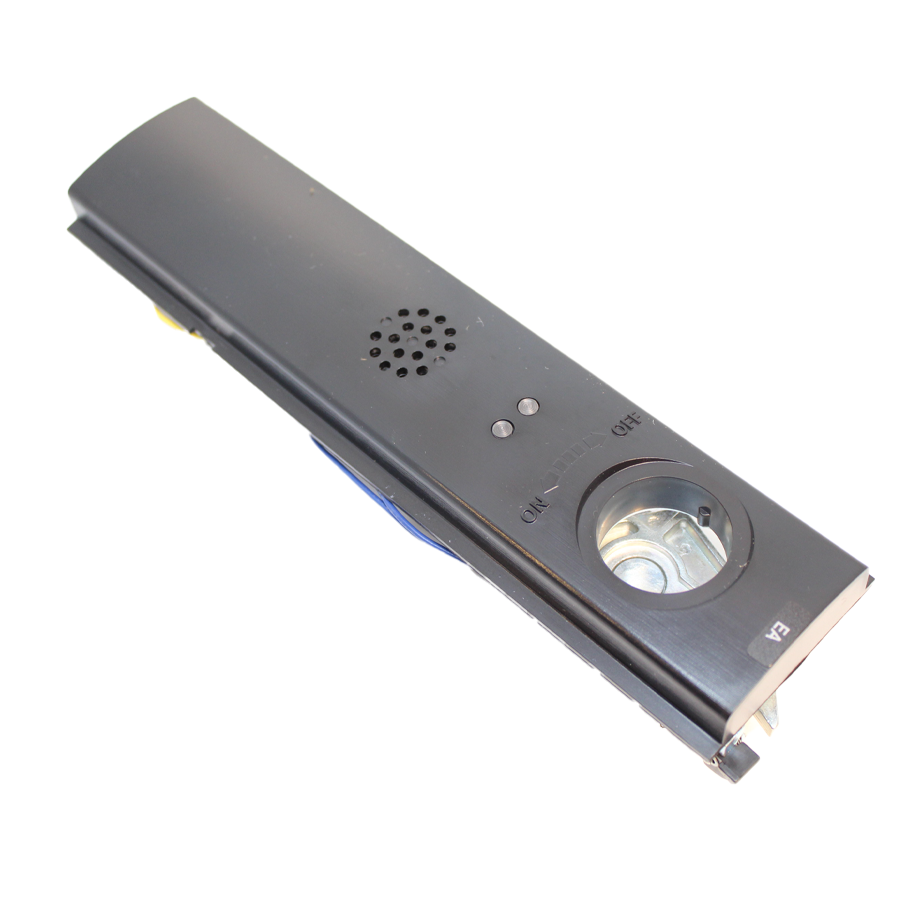

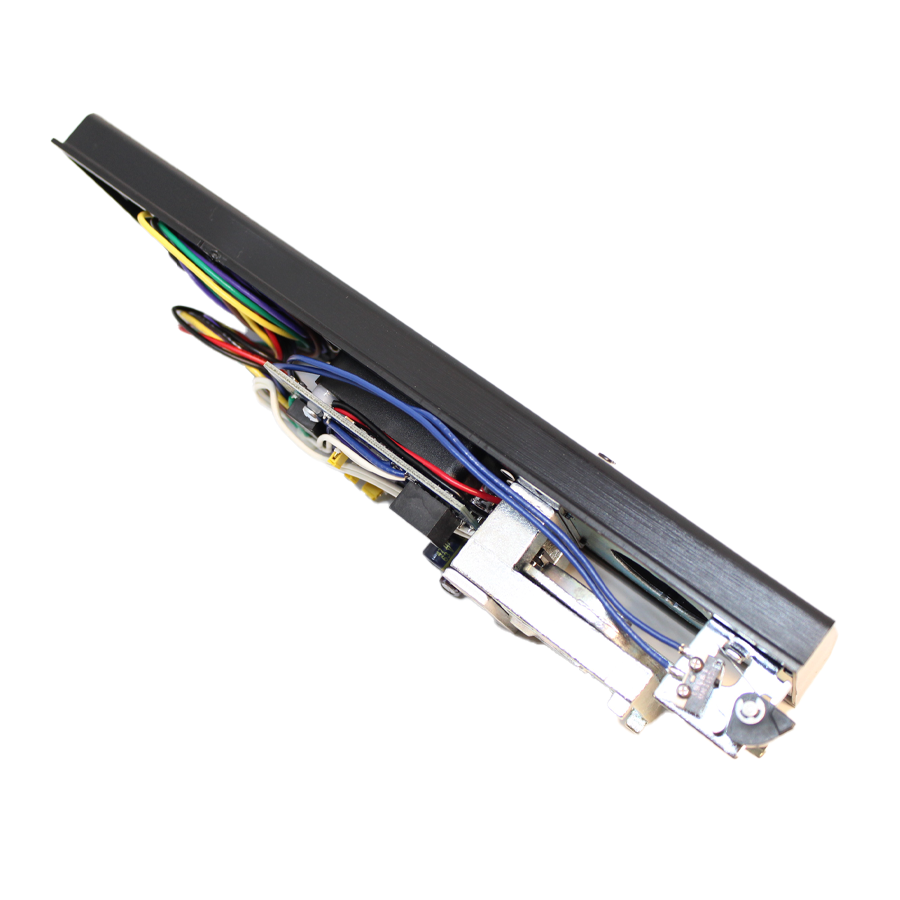

Detex 104358-1 Value Series 36in Exit Alarm Assembly with Filler Plate - Hardwired

Detex Corporation 104358-1 Value Series Exit 36in Filler Plate with Built-in EA is a robust solution designed for doors requiring a hardwired, alarmed panic device. This innovative assembly features a built-in Exit Alarm (EA) that emits a powerful 100dB sound when unauthorized exits occur, alerting management to potential security breaches. The device supports remote signaling, allowing integration with external horns, strobes, or other security systems, enhancing its effectiveness. Installation is straightforward, thanks to the patented mounting plate and strike locator, which eliminate the need for paper templates. Built to fit standard door thicknesses of 1-3/4" to 2-1/4", it accommodates various door types, including wood, hollow metal, fiberglass, and aluminum. The durable design ensures years of reliable service, minimizing replacement costs. Additional features include a non-handed design, a stainless steel deadlocking Pullman latch bolt, and a flexible conduit kit that enhances functionality. The remote bypass option allows authorized personnel to exit without triggering the alarm, ensuring both security and convenience. This exit alarm assembly not only deters theft but also meets stringent building code requirements, making it an essential addition to any commercial property. With its attractive finish options and compatibility with the Value Series devices, the Detex 104358-1 is a smart choice for effective loss prevention.

Value Series Exit 36in, Filler Plate with Built in EA - Hardwired Exit Alarm Assembly

The Exit Alarm (EA) device option is designed for doors that require a hardwired, alarmed panic device with remote signal and bypass. When the alarm sounds a remote signal can be sent to turn on a remote horn, strobe or other security device. The alarm can also be bypassed using a remote button, keypad, card reader or other access control device. The alarm, with approximately 100dB, will sound when someone attempts to exit, alerting management that an unauthorized exit has occurred. With electric switching that monitors the pushpad, the EA provides a high level of security while also meeting all life safety concerns.

Benefits:

• Priced to be the best value for durable and attractive loss prevention panic hardware.
• Reduces employee and customer theft.
• Fits almost any door in any décor.
• Fast and easy installation saves time and money.
• Angled end cap deflects damage away from device.
• Patented mounting plate and strike locator replaces paper templates.
• Durable design provides years of trouble free protection, saving on replacement costs.
• Controls foot traffic, deters unauthorized exits, prevents loss and meets building code requirements.

Features:

• Remote Signal - Form C signaling when alarm sounds.
• Remote Bypass input allows authorized use without an alarm.
• Stainless steel, 3/4" deadlocking Pullman type latch bolt.
• Non-handed, field sizeable.
• 100 decibel alarm.
• 1/8 turn cylinder dogging.
• Single mortise cylinder (sold separate) provides arming and dogging.
• Armed and disarmed field selectable status indicator.
• Heavy duty ribbed aluminum rail extrusion.
• Visual and audible arming indicators.
• FC3 - Flexible 3’ Conduit Kit, mounts to device end cap.
• Delayed arming allows arming after door closes.
• State of art electronics offer reliable security and instantaneous alarm.
• Field selectable key rearm or 2 min. auto rearm.
• Accommodates all types of mortise cylinders with a standard Yale cam (collar required for 7-pin IC cylinders).
• 120V to 12VAC Transformer and 9V Battery Backup.

Specifications:

• Door Types: Wood, Hollow Metal, Fiberglass or Aluminum.
• Door Thickness: Fits standard 1-3/4" - 2-1/4" (for other thicknesses contact factory).
• Single Door Stile: Fits 3-1/2" minimum stile doors with 99 surface strike (std.) with mullion.
• Pairs of Doors Stile: Fits 4" minimum stile doors with 99 surface strike.
• Doors Stile: Fits 2" narrow stile doors - specify NS.
• Machine and Self Drilling Screws (std.)
• 94 Double door strike for double door without mullion.

Accessories:

• SN1: Sex Nut Fasteners.
• NSK: Narrow Stile Conversion Kit - Converts V40 to fit narrow stile glass door applications.

Mechanical Options:

• CD: Cylinder Dogging (Std.)
• LD: Less Dogging (mortise cylinder required for arming).
• IC7: 7 pin small format interchangeable cylinder housing pre-installed at factory.
• MC65: Mortise cylinder pre-installed at factory.
• KS: Key Stop - key removed only when armed.
• 36: Fits 36" Door Width (Std.)
• 48: Fits 48" Door Width.
• F: 3-Hour Fire Rated.
• H: Hurricane Rated.
• 99: Surface Strike (Std.)
• 98: Semi Mortise Strike.
• LF: Less Flex Conduit.
• FC10: Flexible 10’Conduit Kit, mounts to device end cap.
• PT5: Concealed mortise mount power transfer.
• EH8: Five-knuckle energy transfer hinge - 8 wires.

Electrical Options:

• LBM: Latch Bolt Monitoring.
• SI: Status Indicator LED’s indicate armed status.
• 1, 5 second arming delay (15 second - standard).
• 10 or 20 minute auto rearm ( 2 minute - standard).

Finishes:

• 628 - Aluminum Satin
• 711 - Black, Aluminum
