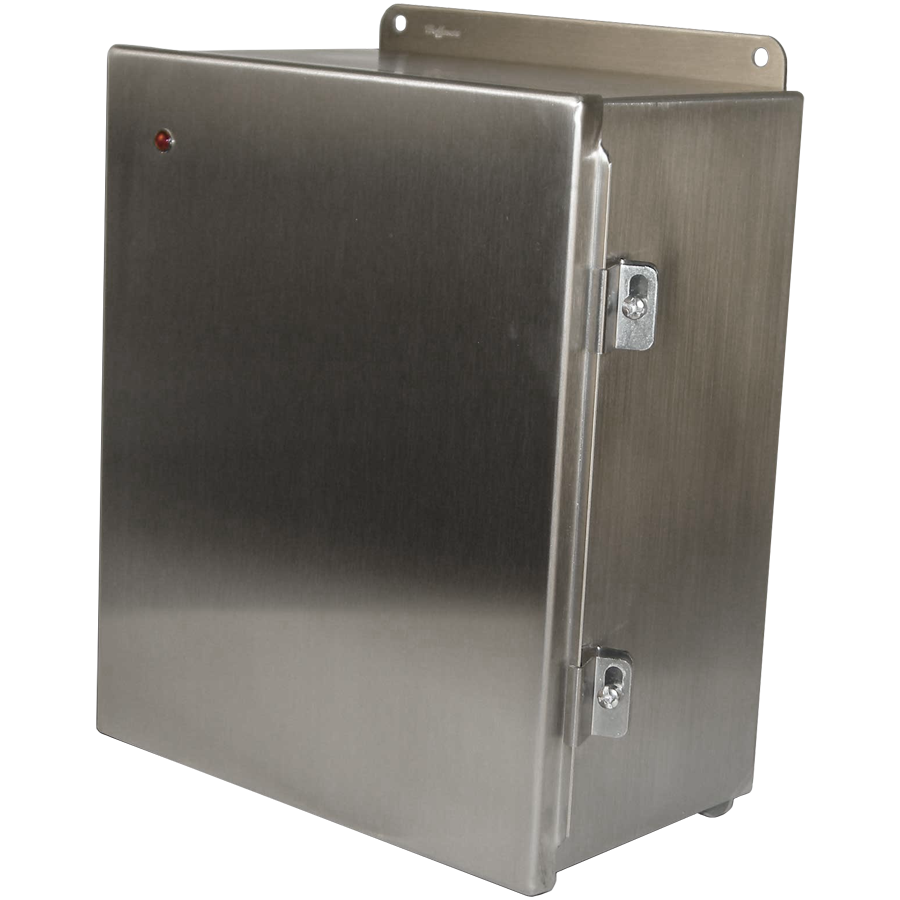

Detex 106595-1 Delayed Egress Logic Controller, with NEMA 4X Enclosure, Indoors/Outdoors

Detex Corporation 106595-1 Delayed Egress Logic Controller offers a comprehensive solution for managing electrified hardware with ease and reliability. This universal logic and power supply controller is designed to control up to two doors, making it ideal for applications such as standard egress, delayed egress, and interlocks. Housed in a durable NEMA 4X enclosure, it is suitable for both indoor and outdoor installations. The 106595-1 controller is equipped with a 2A DC power output, ensuring robust operation at the door. It features a standard battery backup circuit, providing up to 4 hours of uninterrupted power (battery sold separately), which is crucial during power outages. Local and remote signaling connections are conveniently housed in one unit, simplifying installation. With configurable output relays for locks, local alarms, and remote alarms, this controller is adaptable to various security setups. Its status LEDs facilitate easy troubleshooting, while labeled connections enhance clarity during wiring. The controller supports dual voltage selection (12/24VDC) and is compatible with access control components, making it a versatile choice for professional security systems. Overall, the Detex Corporation 106595-1 Delayed Egress Logic Controller combines functionality and reliability, ensuring that your security needs are met with precision.

Delayed Egress Logic Controller, with NEMA 4X Enclosure, Indoors/Outdoors

The 106595-1 is a universal logic and power supply controllers that allow for total control over all electrified hardware. The controller receives input from a switch, access control or any dry contact device and processes it into the desired output. One controller can manage applications for up to two doors, such as standard egress, delayed egress and interlocks. All connections for local or remote signaling are contained in one box. The 106595-1 logic controllers provide at least 2A of DC power at the door. A battery backup/charging circuit is standard with each controller to deliver an uninterrupted source of power for up to 4 hours (battery sold separately). Enclosure is NEMA 4X rated.

Features:

• Power supply and controller all in one NEMA 4X box
• Controls up to 2 separate doors for standard egress or 2-door interlock applications
• 1 controller required for each independent delayed egress application
• Output relays for locks, local alarm and remote alarms
• Relays may be configured to wet or dry connections
• Status LEDs toggle on or off for easy troubleshooting
• Connections are labeled with either numbering scheme or label with text to identify circuits
• Single AC line voltage required to activate
• Dual voltage selection (12/24VDC)
• 9VDC, 100mA output terminal tap
• Fuse protection
• Battery backup circuit (std)

Specifications:

• Access control compatible
• Tamper switch
• M12 module provides 12VDC @ 400mA for access control components
• Battery backup, 12VDC or 24VDC, 4AH
• Pre-wired terminal strip with labels for easy identification (11-800)
• 110VAC input
• 12 or 24 VDC output, 2A
• Lock relay 2A
• Remote relay 2A
• Controls 2 doors within 100 feet using 18ga stranded wires
• Bolt position/door position switches relay 2A
• Local alarm relay 5A

Models:

• 106595-1LT: TRC (less transformer)
• 106595-2: Garden center/WDE
• 106595-2LT: Garden center/WDE (less transformer)
• 106595-3: TRC - coastal
• 106595-3LT: TRC - coastal (less transformer)
• 106595-5: BE-561 in NEMA 4X enclosure
