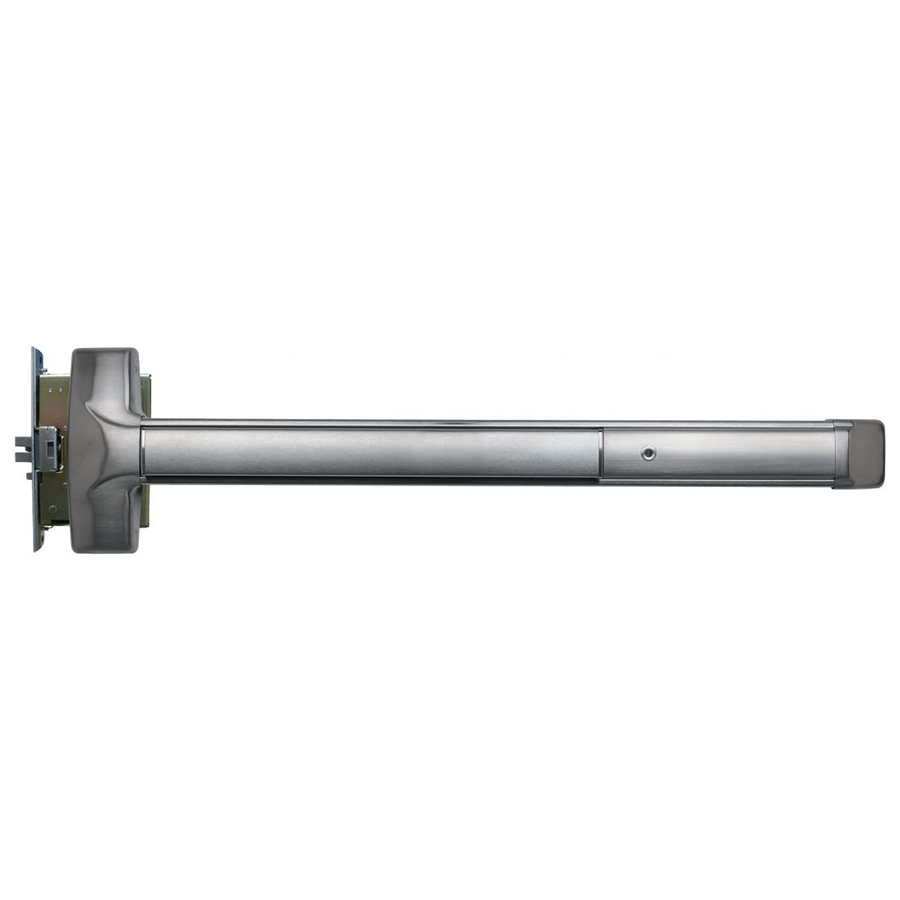

Detex 30-630-36 Advantex Mortise Exit Device, No Trim, Hex Dogging, Satin Stainless Steel

Detex Corporation 30-630-36 Advantex Mortise Exit Only Device is engineered for superior performance in high-traffic environments, making it a reliable choice for panic and fire exit hardware on both single and double doors. This device features a robust design, ensuring durability and years of trouble-free service. The heavy-duty angled end cap effectively deflects potential damage, contributing to its longevity. The patented mounting plate and strike locator system simplify installation, allowing for a quick retrofit to other manufacturers without extensive door preparation. This exit device boasts a 3/4" projection stainless steel latch bolt with anti-friction and deadlocking capabilities, enhancing security and functionality. It is non-handed and field sizeable, accommodating various door types including wood, hollow metal, and fiberglass. With a satin stainless steel finish, the 30-630-36 not only looks professional but also resists wear and tear. It meets various certifications, including A156.3 and UL Listed 3 Hour, ensuring compliance with industry standards. The device's hex dogging mechanism allows for easy operation, while minimal door prep saves time and cost during installation. Choose the Detex Corporation 30-630-36 for a blend of reliability, ease of use, and long-lasting performance in any commercial setting.

Advantex Mortise Exit Only Device, No Trim, Hex Dogging, 630/US32D Satin Stainless Steel

The 30 Series mortise lock exit device is super-heavy-duty panic and fire exit hardware for use on all types of single and double doors. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments.
• Heavy duty angled end cap deflects damage away from device
• Easy retrofit to other manufacturers
• Minimal door prep saves time and money
• Outside trims are easily changed or rekeyed without removing device from door
• Fast and easy installation saves time and money
• Patented mounting plate and strike locator replaces paper templates

Features:

• 3/4" Projection Stainless Steel latch bolt
• Anti-friction, deadlocking, latch bolt
• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• 1/8 turn dogging
• Non-handed, field sizeable

Mechanical Options:

• F - 3-Hour Fire Rated
• AM - Anti-Microbial Coating
• HD - Hex Dogging (Std.)
• CD - Cylinder Dogging
• LD - Less Dogging
• 90 ANSI Strike (Std.)
• 91 ANSI Flat Lip Strike
• 92 Double Door Short Open Back Strike
• 93 - Double Door Long Open Back Strike
• 24 - Fits 24" Door Width
• 30 - Fits 30" Door Width
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width
• EC1 - Heavy duty angled end cap (Std.)
• EC2 - Flush end cap

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Latch Retraction (ER)
• Delayed Egress - Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• SN1 - Sex Nut Kit (2 per package)
• GB16 - Glass Bead Kit
• KS - Key Stop - key removed only when armed

Technical Information:

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4" doors
• Minimum Stile - 4-3/4"
• Machine and Self-Drilling Screws (Std.)
• Optional Sex Nuts for wood or composite doors
• Security Torx screws available

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Brushed Brass
• 611/US9 - Polished Bronze
• 612/US10 - Brushed Bronze
• 613/US10B - Oil Rubbed Bronze
• 628/US28 - Aluminum Satin
• 629/US32 - Polished Stainless Steel
• 630/US32D - Brushed Stainless Steel
• 693/SPBLK - Black Painted
• 695/SP313 - Dark Bronze Painted
