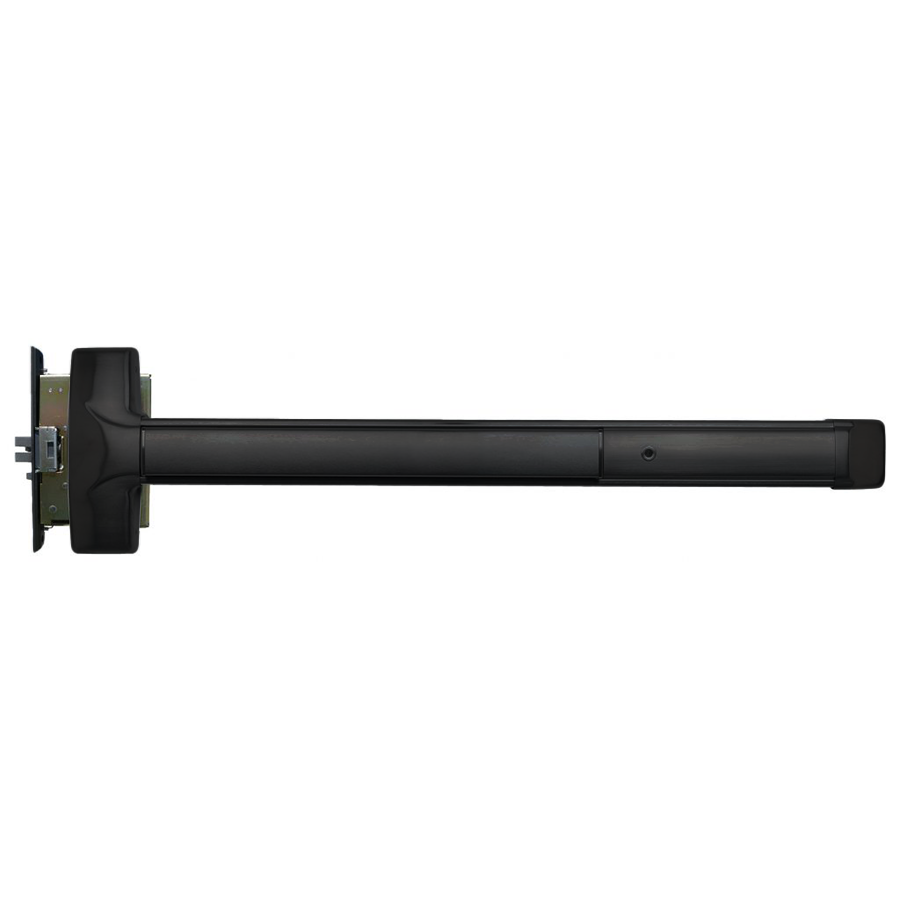

Detex 30-693-36 Advantex Mortise Exit Device, No Trim, Hex Dogging, 36in, Black Powder Coated

Detex Corporation 30-693-36 Advantex Mortise Exit Only Device is designed for maximum durability and performance in high-use environments. With its robust, heavy-duty construction, this exit device is ideal for both single and double doors, offering reliable panic and fire exit hardware that meets stringent safety standards. Featuring a patented mounting plate and strike locator system, installation is simplified, ensuring accurate and efficient setup without the hassle of traditional templates. The heavy-duty angled end cap deflects damage, prolonging the device's lifespan while the stainless steel latch bolt provides strong security with a smooth operation. With 1/8 turn dogging and a non-handed, field-sizeable design, the 30 Series accommodates a variety of door types and widths, making it an excellent choice for diverse applications. This exit device is available in a sleek black powder-coated finish, enhancing its aesthetic appeal while ensuring resilience against wear. It meets A156.3, ADA, ANSI, and UL Listed 3 Hour certifications, guaranteeing compliance with safety regulations. Additionally, the device allows for easy retrofitting to other manufacturers and features minimal door preparation, saving time and costs during installation. Choose the Detex 30-693-36 for a trusted solution in exit hardware that balances functionality and style.

Advantex Mortise Exit Only Device, No Trim, Hex Dogging, 36in, 693/SPBLK Black Powder Coated

The 30 Series mortise lock exit device is super-heavy-duty panic and fire exit hardware for use on all types of single and double doors. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments.
• Heavy duty angled end cap deflects damage away from device
• Easy retrofit to other manufacturers
• Minimal door prep saves time and money
• Outside trims are easily changed or rekeyed without removing device from door
• Fast and easy installation saves time and money
• Patented mounting plate and strike locator replaces paper templates

Features:

• 3/4" Projection Stainless Steel latch bolt
• Anti-friction, deadlocking, latch bolt
• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• 1/8 turn dogging
• Non-handed, field sizeable

Mechanical Options:

• F - 3-Hour Fire Rated
• AM - Anti-Microbial Coating
• HD - Hex Dogging (Std.)
• CD - Cylinder Dogging
• LD - Less Dogging
• 90 ANSI Strike (Std.)
• 91 ANSI Flat Lip Strike
• 92 Double Door Short Open Back Strike
• 93 - Double Door Long Open Back Strike
• 24 - Fits 24" Door Width
• 30 - Fits 30" Door Width
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width
• EC1 - Heavy duty angled end cap (Std.)
• EC2 - Flush end cap

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Latch Retraction (ER)
• Delayed Egress - Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• SN1 - Sex Nut Kit (2 per package)
• GB16 - Glass Bead Kit
• KS - Key Stop - key removed only when armed

Technical Information:

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4" doors
• Minimum Stile - 4-3/4"
• Machine and Self-Drilling Screws (Std.)
• Optional Sex Nuts for wood or composite doors
• Security Torx screws available

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Brushed Brass
• 611/US9 - Polished Bronze
• 612/US10 - Brushed Bronze
• 613/US10B - Oil Rubbed Bronze
• 628/US28 - Aluminum Satin
• 629/US32 - Polished Stainless Steel
• 630/US32D - Brushed Stainless Steel
• 693/SPBLK - Black Painted
• 695/SP313 - Dark Bronze Painted
