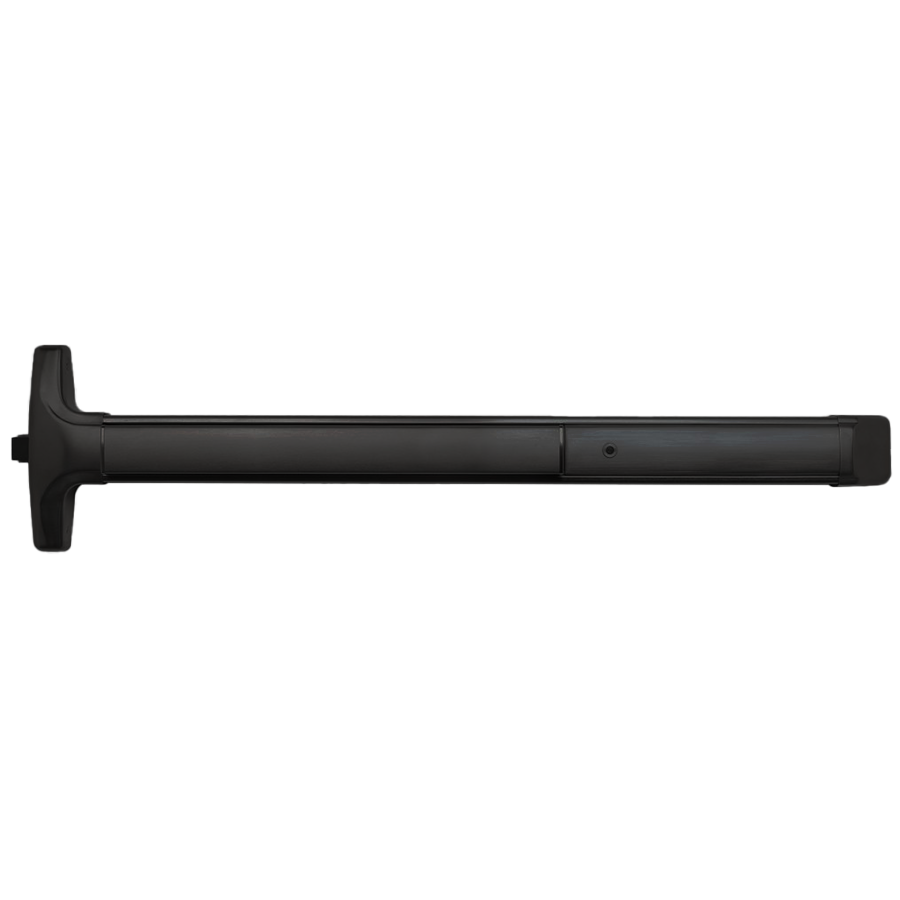

Detex 40-693-36 Advantex Narrow Stile Rim Device, Hex Dogging, 36in, Black Powder Coated

Detex Corporation 40-693-36 Advantex Narrow Stile Rim Device delivers robust security and exceptional functionality for narrow stile doors. Designed for high-use environments, this super-heavy-duty panic and fire exit hardware is perfect for both single and double doors with mullions. Its patented mounting plate and strike locator system simplify installation, ensuring accuracy and efficiency. This exit device features durable construction with a stainless steel deadlocking, Pullman-type latch bolt, providing long-lasting performance. The heavy-duty angled end cap is engineered to deflect damage, enhancing the device's longevity. The non-handed design and minimal door preparation save valuable installation time and costs. Key features include 1/8 turn hex dogging for ease of use, as well as a variety of mechanical options such as 3-hour fire rated and hurricane rated configurations. The device fits standard door widths of 36 inches and accommodates various materials including wood, hollow metal, and aluminum. With a sleek black powder-coated finish, the 40-693-36 not only blends seamlessly into various architectural styles but also meets rigorous certifications including A156.3 and UL Listed standards. Ideal for commercial applications, this exit device is a reliable choice for ensuring safety and compliance in any building.

Advantex Narrow Stile Rim Device, No Trim, Hex Dogging, 36in, 693/SPBLK Black Powder Coated

The 40 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of narrow stile single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments.
• Patented mounting plate and strike locator replaces paper templates
• Minimal door prep saves time and money
• Heavy duty angled end cap deflects damage away from device
• Outside trims are easily changed or rekeyed without removing device from door
• Fast and easy installation saves time and money

Features:

• Stainless steel deadlocking, Pullman-type latch bolt
• Non-handed
• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• 1/8 turn dogging
• Field sizeable

Mechanical Options:

• F - 3-Hour Fire Rated
• H - Hurricane Rated
• AM - Anti-Microbial Coating
• HD - Hex Dogging (Std.)
• CD - Cylinder Dogging
• LD - Less Dogging
• 98 - Semi Mortise Strike (Std.)
• 99 - Surface Strike
• 24 - Fits 24" Door Width
• 30 - Fits 30" Door Width
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width
• EC1 - Heavy duty angled end cap (Std.)
• EC2 - Flush end cap

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Integration (EI)
• Electric Latch Retraction (ER)
• Delayed Egress - Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Unlock (EU2W)
• Latch Bolt Signaling (LX)
• Latch Bolt Signaling for High Voltage (LXV)
• Electric Switching (ES)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• GB2 - Glass Bead Kit
• SN1 - Sex Nut Kit (2 per package)
• SSK - Security Torx Screw Kit
• Trim Functions

Technical Information:

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4" doors
• Minimum Stile - 4-3/4"
• Machine and Self-Drilling Screws (Std.)
• Optional Sex Nuts for wood or composite doors
• Security Torx screws available

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Brushed Brass
• 611/US9 - Polished Bronze
• 612/US10 - Brushed Bronze
• 613/US10B - Oil Rubbed Bronze
• 628/US28 - Aluminum Satin
• 629/US32 - Polished Stainless Steel
• 630/US32D - Brushed Stainless Steel
• 693/SPBLK - Black Painted
• 695/SP313 - Dark Bronze Painted
