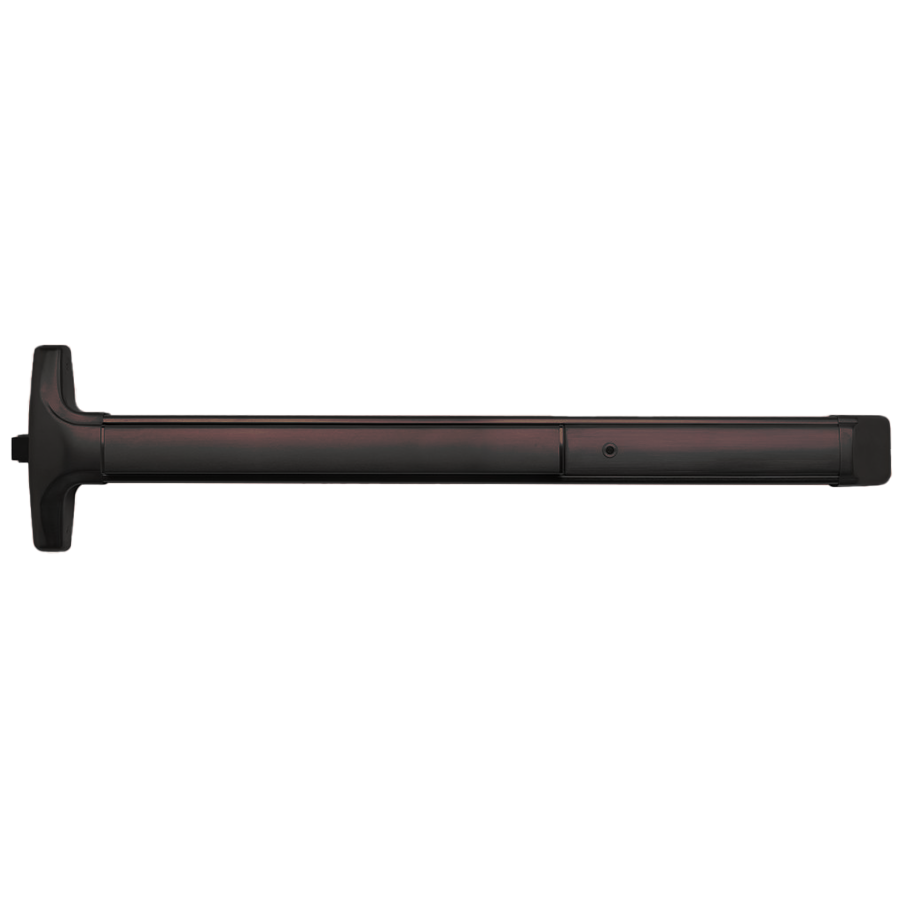

Detex 40-695-36 Advantex Narrow Stile Rim Device, No Trim, Hex Dogging, 36in, Dark Bronze

Detex Corporation 40-695-36 Advantex Narrow Stile Rim Device offers an exceptional solution for panic and fire exit hardware, specifically designed for narrow stile single and double doors, including those with mullions. This robust device boasts a tough and durable construction, ensuring years of reliable service even in high-use environments. The patented mounting plate and strike locator system simplify the installation process, eliminating the need for cumbersome paper templates and saving both time and money. The stainless steel deadlocking, Pullman-type latch bolt enhances security, while the device’s non-handed design allows for flexible installation. Its heavy-duty angled end cap effectively deflects damage, prolonging the life of the unit. Moreover, changing or rekeying outside trims is straightforward, requiring no removal from the door. This model is compatible with standard door thicknesses of 1-3/4" to 2-1/4" and fits a 36" door width. It is UL listed and meets A156.3, ADA, ANSI, and BHMA certifications, ensuring compliance with industry standards. Finished in a sleek dark bronze paint, the 40-695-36 combines functionality with aesthetic appeal, making it an ideal choice for commercial and residential applications alike.

Advantex Narrow Stile Rim Device, No Trim, Hex Dogging, 36in, 695/SP313 Dark Bronze Painted

The 40 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of narrow stile single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments.
• Patented mounting plate and strike locator replaces paper templates
• Minimal door prep saves time and money
• Heavy duty angled end cap deflects damage away from device
• Outside trims are easily changed or rekeyed without removing device from door
• Fast and easy installation saves time and money

Features:

• Stainless steel deadlocking, Pullman-type latch bolt
• Non-handed
• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• 1/8 turn dogging
• Field sizeable

Mechanical Options:

• F - 3-Hour Fire Rated
• H - Hurricane Rated
• AM - Anti-Microbial Coating
• HD - Hex Dogging (Std.)
• CD - Cylinder Dogging
• LD - Less Dogging
• 98 - Semi Mortise Strike (Std.)
• 99 - Surface Strike
• 24 - Fits 24" Door Width
• 30 - Fits 30" Door Width
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width
• EC1 - Heavy duty angled end cap (Std.)
• EC2 - Flush end cap

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Integration (EI)
• Electric Latch Retraction (ER)
• Delayed Egress - Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Unlock (EU2W)
• Latch Bolt Signaling (LX)
• Latch Bolt Signaling for High Voltage (LXV)
• Electric Switching (ES)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• GB2 - Glass Bead Kit
• SN1 - Sex Nut Kit (2 per package)
• SSK - Security Torx Screw Kit
• Trim Functions

Technical Information:

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4" doors
• Minimum Stile - 4-3/4"
• Machine and Self-Drilling Screws (Std.)
• Optional Sex Nuts for wood or composite doors
• Security Torx screws available

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Brushed Brass
• 611/US9 - Polished Bronze
• 612/US10 - Brushed Bronze
• 613/US10B - Oil Rubbed Bronze
• 628/US28 - Aluminum Satin
• 629/US32 - Polished Stainless Steel
• 630/US32D - Brushed Stainless Steel
• 693/SPBLK - Black Painted
• 695/SP313 - Dark Bronze Painted
