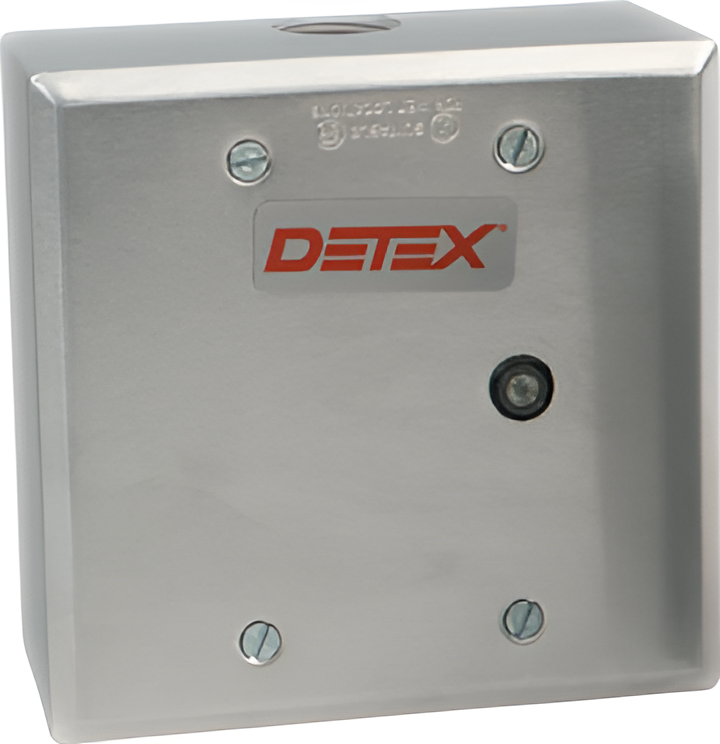

Detex BE-961-6 24VAC to 9VDC Battery Eliminator for ECL-230D/X, ECL-600 V40 Exits

Detex Corporation BE-961-6 Battery Eliminator efficiently converts 24VAC to 9VDC, providing a reliable power source for ECL-230D, ECL-230X, ECL-600 exit control locks, and V40 alarmed exit devices. This innovative solution eliminates the need for batteries, reducing maintenance costs and contributing to a more environmentally friendly approach by preventing unnecessary battery disposal. With easy wall installation adjacent to the protected door, the BE-961-6 features a 10-foot flexible armored cable, allowing seamless connectivity to security devices without hindering door operation. An LED indicator provides a visual status of power, ensuring you are always informed of your system's functionality. For enhanced security, the connecting cable can be concealed within the door using a continuous electric hinge. Designed with a current output capacity of 0.5 amps, the BE-961-6 is housed in a durable cast aluminum case, measuring 4-5/8 inches wide by 4-5/8 inches long and 2 inches deep. This battery eliminator is compatible with various ECL series devices, making it an essential component for any effective access control system. With a 3-Year Limited Manufacturer’s Warranty, you can trust in the quality and reliability of Detex Corporation's products.

Battery Eliminator Converts 24VAC to 9VDC for ECL-230D/ECL-230X/ECL-600 and V40 Alarmed Exits

The BE-961 Battery Eliminator is designed to power security devices such as the Detex ECL-230D, ECL-230X Series, ECL-600 battery powered series exit control locks and V40 alarmed rim exit device without reliance on batteries. Converts AC power to DC for supplying battery-operated devices.

Benefits:

• Powers security devices without reliance on batteries.
• Eliminating the need to annually change 9 volt batteries, saves money, prevents unnecessary battery disposal and creates a greener process.
• May be installed on the wall adjacent to the protected door quickly and easily.
• 10’ Flexible armored cable connects the battery eliminator to the security device without interfering with door use.
• LED provides visual status of power.
• For extra security, the connecting cable may be concealed in the door using a continuous electric hinge.

Features:

• BE-961-1: 120VAC transformer to 12VAC, 12VAC to 9VDC circuit board. Powers up to three 9V battery devices.
• BE-961-2: 120VAC transformer to 12VAC, 12VAC to 9VDC circuit board includes secure power/supervisory loop (cutting 9V power will sound BE-961-2 alarm) For use with ECL products only.
• BE-961-5: Converts 12VAC to 9VDC. Conduit and transformer sold separately.
• BE-961-6: Converts 24VAC to 9VDC. Conduit and transformer sold separately.
• 106595-5: Battery Eliminator in NEMA enclosure - Suitable for outdoor use - Used to power V40 EB W, 230X-W, EAX-500W - Converts 24VAC to 9VDC.
• The BE-961-2 includes an internal alarm which sounds at 95dB if the secure power feed wires are cut or when the ECL unit sounds.

Specifications:

• 9VDC outputs, jumper selectable to the security device.
• BE-961-2 is not for use with EAX and V40 product lines.
• BE-961-1 and BE-961-2 come with an external transformer.
• Current Output Capacity - .5 Amp.
• Line input transient suppression is a standard feature.
• Dimensions: 4-5/8" wide x 4-5/8" long x 2" deep.
• Standard cast aluminum case.
• Detex Limited Warranty: 3 Year Limited Manufacturer’s Warranty.
