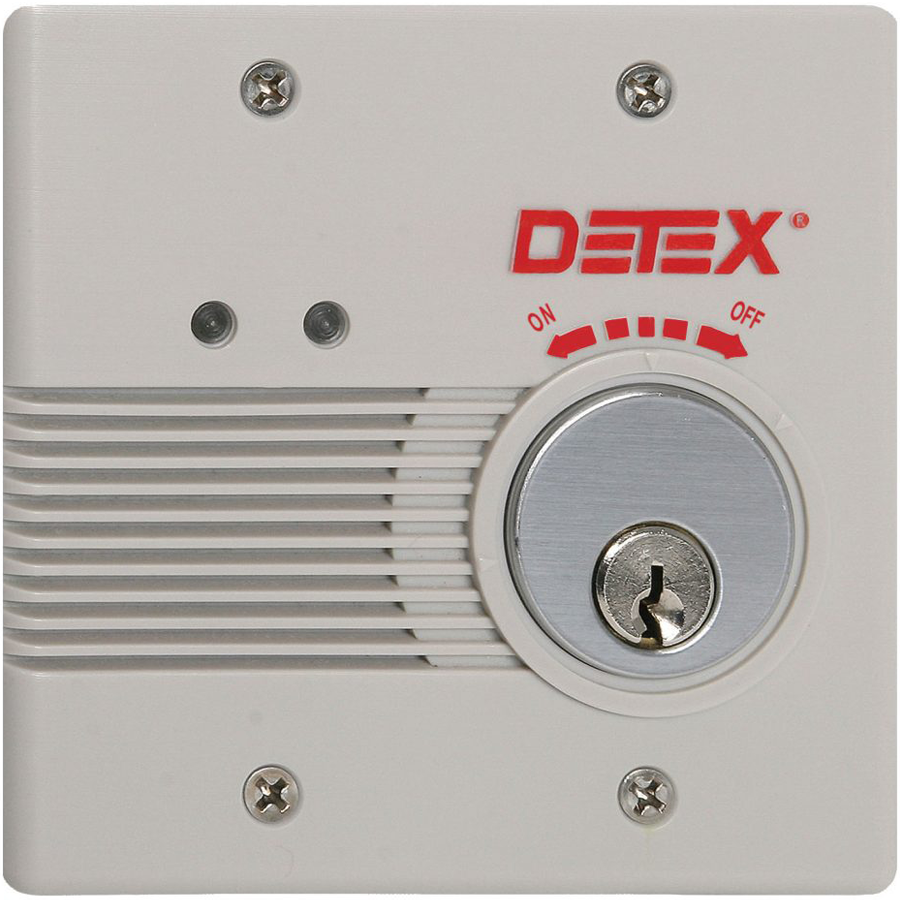

Detex EAX-2500SK1 Gray Exit Alarm Kit - Surface Mount, AC/DC, Sign, Back Box, Magnetic Switch, Transformer

Detex Corporation EAX-2500SK1 Gray Exit Alarm is a robust security solution designed for applications requiring a hardwired AC/DC alarm on secure doors. With a powerful 100dB output, this alarm activates upon unauthorized exits, ensuring optimal safety for emergency exits and restricted access points. Its compact design allows for quick installation in standard 4" x 4" outlet boxes, saving valuable time and resources. This complete kit includes the alarm, a warning sign, a surface back box, a surface magnetic switch, and a 24VAC transformer, making it an all-in-one solution for your security needs. Field-selectable features offer customization, including status indicators, auto rearm options, and a silent arming feature. The easy-to-understand graphics on the cover simplify key operation, while the tamper-resistant housing protects internal electronics. The EAX-2500SK1 supports both surface and flush mounting and operates on hardwired power with an optional 9VDC backup battery. Key control is facilitated through a standard mortise cylinder, and a relay output allows for the connection of external accessories. Available in gray or black finishes, this exit alarm is designed to blend seamlessly with any décor while providing essential security. With a 3-year limited warranty, you can trust the reliability of Detex Corporation’s offerings.

Gray Exit Alarm, Surface Wall Mount, AC/DC Hardwired. Complete Kit - Alarm, Warning Sign, Surface Back Box, Surface Magnetic Switch and 24VAC Transformer

Detex EAX-2500 Series Exit Alarm is designed for applications requiring a hardwired AC/DC alarm on secure doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs. The smaller size of the EAX-2500, which is designed to fit in a standard 4" x 4" outlet box, makes it the choice for quick and easy installations on emergency exit and restricted doors.

Benefits:

• Field selectable features allow customer to choose status indicators and auto rearm options.
• 100dB piezo horn provides security for restricted doors.
• Easy to install using ordinary tools to save time and money.
• New graphics on cover are easy to understand and make key operation simple.
• Available in either gray or black to blend with any décor.

Features:

• Surface and flush mount available using 4" x 4" double switch/outlet box.
• Patented cam assembly automatically adjusts for different size cylinders without spacers.
• Inside Key Control uses mortise cylinder with standard Yale cam.
• AC/DC hardwired power with optional 9VDC backup battery.
• Low battery alert is field selectable.
• Silent arming feature is field selectable.
• 100dB piezo horn.
• Key required to reset alarm.
• Tamper resistant housing and cover protects electronics.
• Bypass input available.
• Relay output for signaling external accessories.
• Field selectable 2-minute auto rearm, if desired.

Specifications:

• Dimensions (Surface Mount): 4.65" x 4.6".
• Projection (Surface Mount): 3".
• Dimensions (Flush Mount): 4.65" x 4.6".
• Projection (Surface Mount): 1".
• 7 pin cylinder: requires 1/4-inch collar.
• Detex Limited Warranty: 3 Year Limited Manufacturer’s Warranty.

Mechanical Options:

• KS: Key Stop (Key removed only in on position).
• EAX-2500FK1: Complete kit contains alarm, warning sign, flush back box, MS-2049F magnetic switch and 24VAC transformer (add suffix "xMC65 or xIC7" to include factory installed cylinder).
• EAX-2500SK1: Complete kit contains alarm, warning sign, surface back box, MS-2049S magnetic switch and 24VAC transformer (add suffix "xMC65 or xIC7" to include factory installed cylinder).

Accessories:

• IC7: Interchangeable mortise cylinder (can be factory installed).
• MC65: Mortise cylinder (can be factory installed).
• 102640: (EAX-2500C) Conversion kit.
• MS-2049, MS-1039, MS-1059: Magnetic Switch.
• 103779: Optional Cylinder Nut Wrench.

Finishes:

• N/A - Grey (Standard)
• BK - Black
