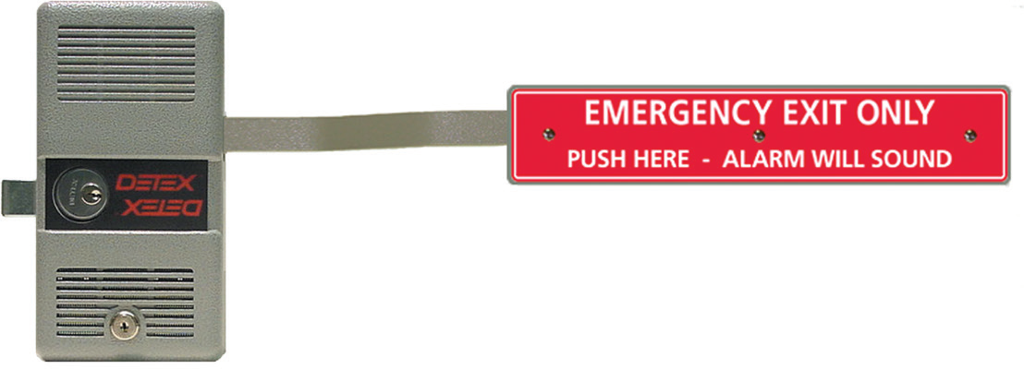

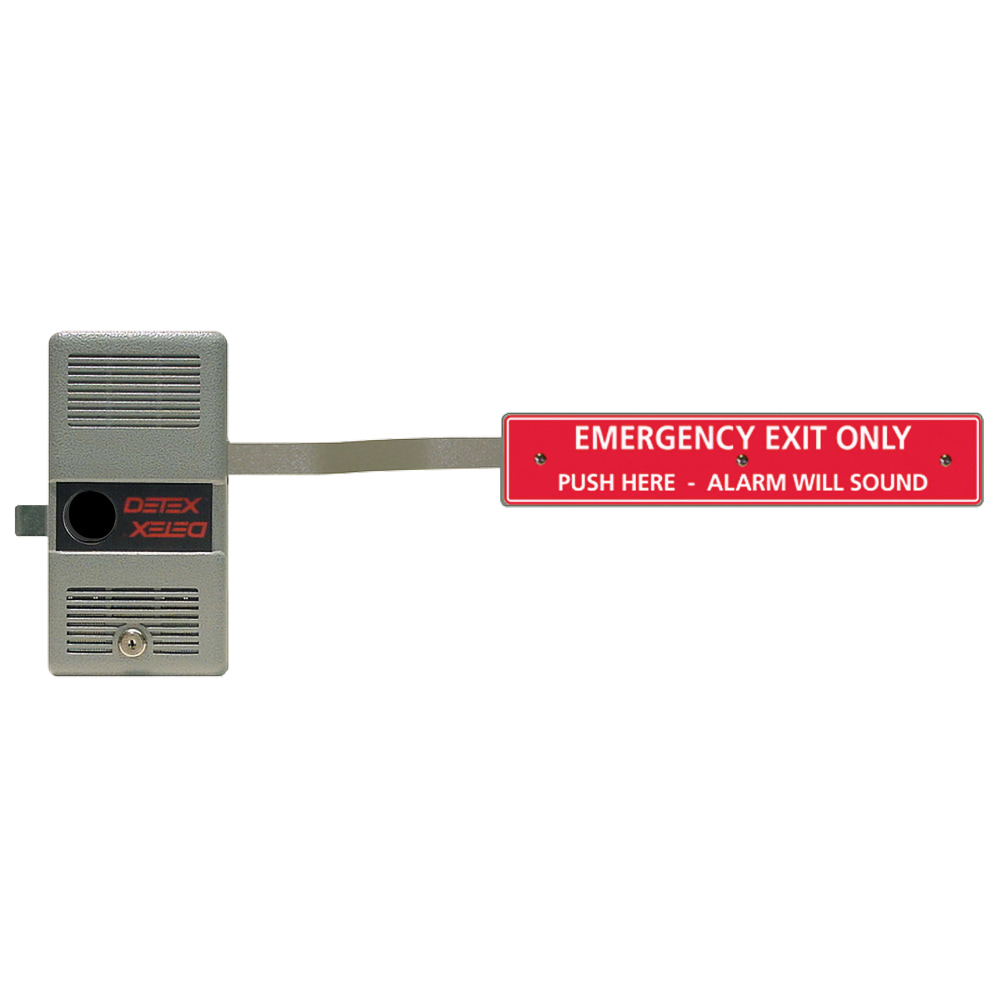

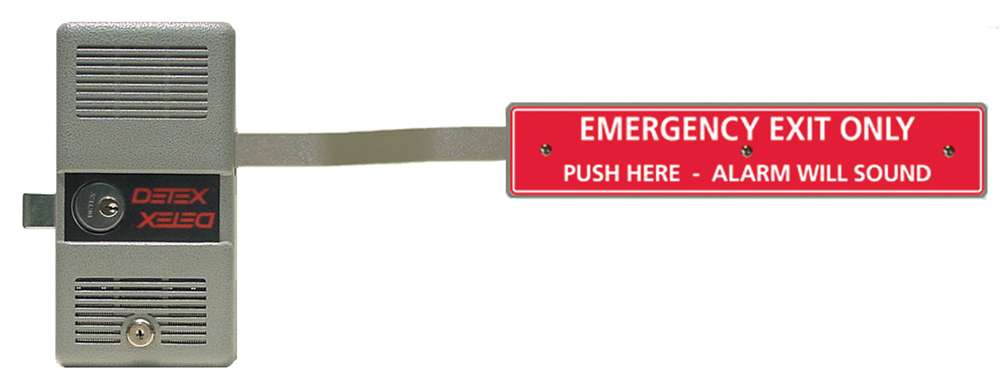

Detex ECL230DPH UL Listed Panic Hardware Exit Control Lock with Long Bar Gray Finish offers a robust solution for enhancing security in commercial environments. Its attack-resistant design can withstand over 2200 lbs. of outside pull force, ensuring that both people and property remain protected. Crafted from durable steel, this exit control lock provides proven reliability at a competitive price, effectively reducing theft and unauthorized access. Installation is straightforward, making it an ideal choice for professionals looking for efficiency without compromising on security. The lock features a long push bar measuring 12-7/8", designed for quick exit in emergencies while maintaining a sleek gray finish that complements various architectural styles. It is suitable for doors with a thickness of 1-3/4" to 2-1/4" and is easy to integrate into existing systems. The ECL230DPH operates on a wired power supply and is part of the Exit Control Locks Series. It comes with a limited 10-year mechanical warranty and a 3-year electronic warranty, reflecting Detex’s commitment to quality. For commercial applications requiring reliability and safety, the Detex ECL230DPH is a trusted choice that meets critical safety and security objectives.
Detex Corporation is a world-class manufacturer and distributor of products that protect people, secure property, and assure the life safety and security objectives of our customers. We strive to create the highest customer value in our worldwide markets while obtaining the highest possible return for our other stakeholders. For more than a century, Detex has earned the trust of architects and owners who rely on Detex products for the safety and security of people and property.
Attributes
Access Type: Alarmed Exit
Alternate Codes: ECL-230D-PH, ECL230DPH
Application: CM EL
Bar Style: Paddle
Battery Type: 9V Battery
Category: Commercial Electronic Devices
Certifications: ADA, ANSI, BHMA
Clazz: DX
Color: Gray
Commercial Residential: Commercial
Country of Origin: Usa
Cover: Keyed
Cylinder Type: Rim Cylinder
Design: Long Bard
Device Type: Rim
Dimension: 5-3/4" x 10-3/8" with 12-7/8" Push Bar
Door And Lock Sensor: Pushbar Monitor
Door Application: Pair of Doors, Pair of Doors with Mullion, Panic Devices & Exit Alarms, Single Door
Door Range: 1-3/4" x 2-1/4"
Door Thickness: 1-3/4" x 2-1/4"
Door Type: Aluminum, Hollow Metal, Wood
Electric Options: Alarm Kit Battery Powered
Exit Device Category: Alarmed Exits, Deadbolt Device
Feedback: 100dB Piezo Alarm
Finish: Gray
Fire Rated: No
Function: Exit Only
Grade: Grade 3
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Item Class Description: UL Listed Panic Hardware Exit Control Lock with Long Bar
Item Type Keyword: Panic Hardware
Keyway: Schlage C
Limited Warranty: Limited 10 Year Mechanical and 3 Year Electronic Warranty
Manufacturer: Detex Corporation
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electronic Warranty
Material: Steel
Mounting: Door
No Of Inners: 1
Number Of Inners: 1
Order_ Qty: 1
PO date: 2024-09-03
Power Supply: Wired
Product Type Used With: Exit Control
Series: Exit Control Locks Series
Signage: "Emergency Exit Only - Alarm Will Sound", English - Red, Photoluminescent
Strike: ECL437K Strike
Subcategory: Electronic Exit Devices
Subtype: Exit Devices
Type: Electronics
Ul Listing Type: UL Listed
