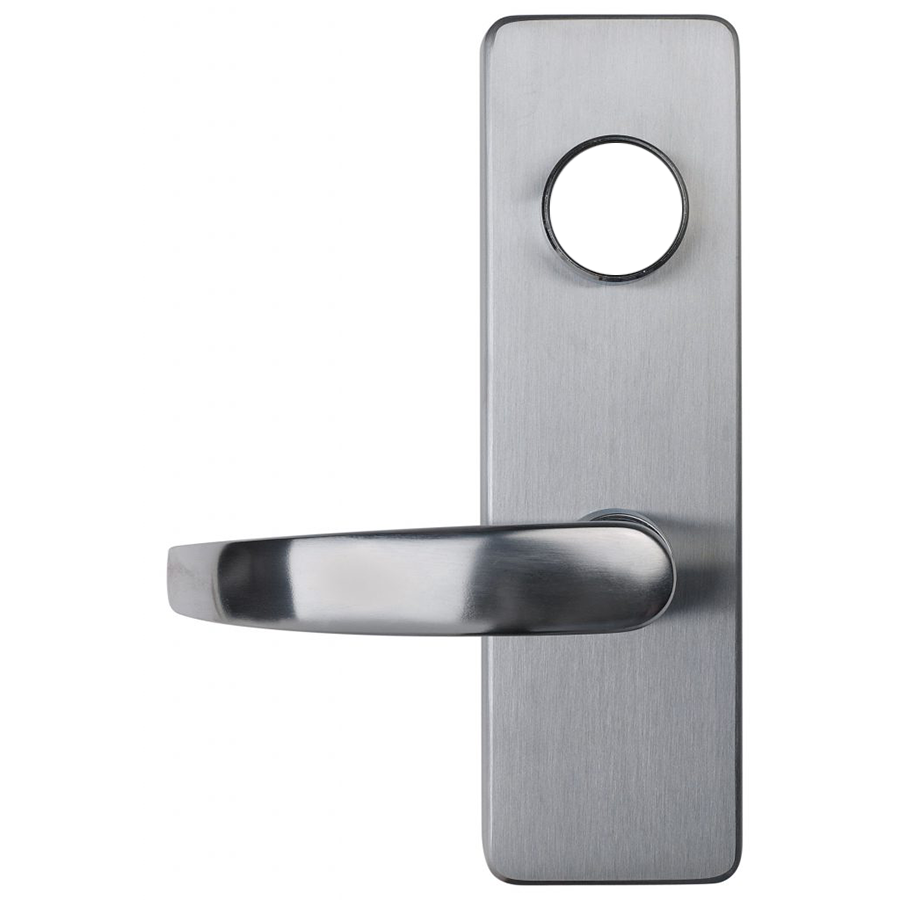

Detex EU-2W-FSE-S-626-LHR EU Electrified Trim, S Lever, Fail Secure, Less Cylinder, Satin Chrome

Detex Corporation EU-2W-FSE-S-626-LHR EU Electrified Trim offers an advanced solution for secure access control in various environments. Designed to work seamlessly with Detex narrow stile rim exit devices (40/50/51 Series), this electric unlock trim provides a reliable means for authorized personnel to lock or unlock doors remotely, enhancing both security and safety. Ideal for fire-rated doors, it ensures emergency access even when a fire alarm is activated. This model features a fail secure (FSE) mechanism, meaning that during a power outage, the door will remain locked, safeguarding your premises. Its clutching trim design limits the risk of vandalism, while the key override allows for emergency entry when necessary. The vandal-resistant break-away type lever further enhances durability against tampering. Measuring 9-1/16 inches by 2-3/4 inches, the trim is finished in a stylish 626/US26D satin chrome, ensuring it complements a variety of architectural styles. It operates on 24VDC with a continuous duty of 150mA, making it a robust choice for access control systems in schools, hospitals, and retail spaces. Please note that this unit is not field reversible and must be specified for left-hand reverse applications. Choose Detex for superior security solutions tailored to your needs.

EU Electrified Trim, S Lever on Escutcheon, Fail Secure (FSE), Less Mortise Cylinder, for 40/50/51 Series (Narrow Rim and SVR Exit Devices), LHR Left Hand Reverse, 9-1/16in x 2-3/4in, 626/US26D Satin Chrome

The electric unlock trim (EU2W) provides remote means of locking or unlocking a door for authorized entry, access control, security or safety needs when used in conjunction with any Detex narrow stile rim exit device (40/V40 series) or surface vertical rod exit device (50/V50 series) on medium-stile doors with a minimum stile width of 4". Perfect for use on fire-rated doors, such as stairwell doors, allowing emergency entry after fire alarm activates fail safe trim. Excellent source of security for access control systems used in installations in schools, universities, hospitals, retail, industrial, etc. For use only on wide stile glass doors, wood doors, and hollow metal doors (not for use with narrow stile doors).

Features:

• Clutching trim limits vandalism
• Key override for emergency entrance during loss of power (FSE)
• Cylinder override
• Spring loaded tailpiece
• Vandal resistant break-away type lever

Mechanical Options:

• EU2W: Comes standard as D trim, with S style lever and fail secure (FSE), for use with Detex 40/V40 series rim or 50/51/V50/V51 series surface vertical rod device
• EU2W x DT or DU: Comes with T style or U style lever, for use with Detex 40/V40 series rim or 50/51/V50/V51 series surface vertical rod device
• KN: Knurling available on all levers
• Not field reversible

Electrical Options:

• Fail Secure (FSE): During power failure, device will be locked (Security option) ex: EU x FSE
• Fail Safe (FSA): During power failure or fire alarm activation, the trim will always be unlocked. (Life safety option) ex: EU x FSA
• Not field selectable

Specifications:

• 24VDC/150ma continuous duty
• 12VDC/310ma continuous duty
• Monitors the lever and sends a signal to access control when lever is rotated
• Not retrofittable or field reversible - must specify handing

Finishes:

• 605/US3 - Polished brass
• 606/US4 - Brushed brass
• 611/US9 - Polished bronze
• 612/US10 - Brushed bronze
• 613/US10B - Oil rubbed bronze
• 693/SPBLK - Painted black
• 695/SP313 - Painted dark bronze
• 629/US32 - Polished stainless steel
• 630/US32D - Brushed stainless steel
