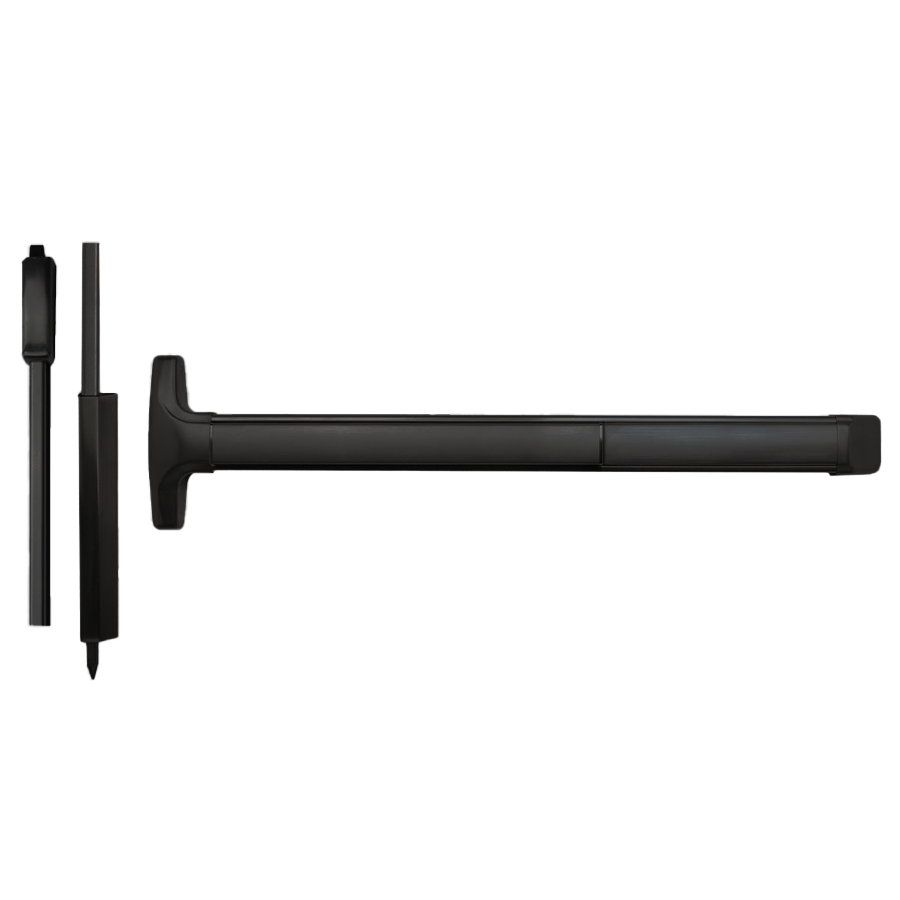

Detex F50-LD-693-48 Advantex Fire Rated Narrow Stile SVR Exit Device, 48in, Black Powder Coated

Detex Corporation F50-LD-693-48 Advantex Fire Rated Narrow Stile Surface Vertical Rod (SVR) Exit Only Device offers exceptional security and reliability for narrow stile double doors. Designed specifically for high-use environments, this device features a durable construction that withstands inclement weather and heavy wear. With a fire rating of 180 minutes, it ensures safety during emergencies, making it ideal for commercial settings. The F50 Series is equipped with stainless steel deadlocking top latches and hardened steel bottom drop bolts, providing enhanced security. The patented mounting plate and strike locator system simplify installation, eliminating the need for complex templates. Additionally, the ADA compliant ramped bottom bolt cover ensures accessibility for all users. This exit device is easy to maintain, with outside trims that can be changed or rekeyed without removing the device from the door. The heavy-duty angled end cap deflects damage, prolonging the unit's lifespan. Available in a sleek black powder coat finish, the F50-LD-693-48 integrates seamlessly with various door types, including wood, hollow metal, and fiberglass. Choose the Detex Corporation F50-LD-693-48 for a robust, fire-rated exit solution that prioritizes safety and ease of use.

Advantex Fire Rated Narrow Stile Surface Vertical Rod (SVR) Exit Only Device, No Trim, Less Dogging, 48in, 693/SPBLK Black Powder Coated

The F50 Series surface vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of narrow stile double doors without a mullion. All 50 series SVR exit devices are supplied with top and bottom rod covers and an ADA compliant ramped bottom bolt cover. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse inclement weather environments
• Outside trims are easily changed or rekeyed without removing device from door
• Minimal door prep saves time and money
• Heavy duty angled end cap deflects damage away from device
• Fast and easy installation saves time and money
• Security enhanced by stainless steel rod covers, standard
• Patented mounting plate and strike locator replaces paper templates

Features:

• Stainless steel deadlocking top latch
• Hardened steel bottom drop bolt with dust proof strike
• ADA ramped bottom bolt cover
• 1/8 turn hex or cylinder dogging
• Handed - field reversible
• Field sizeable
• All exposed surfaces are finished over stainless steel with PVD, an environmentally friendly finishing process

Mechanical Options:

• F - 3-Hour Fire Rated
• AM - Anti-Microbial Coating
• HD - Hex Dogging (Std.)
• CD - Cylinder Dogging
• LD - Less Dogging
• 24 - Fits 24" Door Width
• 30 - Fits 30" Door Width
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width
• EC1 - Heavy duty angled end cap (Std.)
• EC2 - Flush end cap
• 84 - 84" Door Height (Std.)
• 96 - 85" to 96" Door Height
• 120 - 97" to 120" Door Height

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Latch Retraction (ER)
• Delayed Egress - Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Unlock (EU2W)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• GB5 - Glass Bead Kit - 7' Door Height (84")
• GB9 - Glass Bead Kit - 8' Door Height (85" - 96")
• GB13 - Glass Bead Kit - 10' Door Height (97" - 120")
• SN1 - Sex Nut Kit (2 per package)
• SSK- Security Torx Screw Kit
• Trim Functions

Technical Information:

• Minimum Stile - 2" with standard 96 strike
• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4" doors
• Fasteners - Machine and Self-Drilling Screws standard

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Brushed Brass
• 611/US9 - Polished Bronze
• 612/US10 - Brushed Bronze
• 613/US10B - Oil Rubbed Bronze
• 628/US28 - Aluminum Satin
• 629/US32 - Polished Stainless Steel
• 630/US32D - Brushed Stainless Steel
• 693/SPBLK - Black Painted
• 695/SP313 - Dark Bronze Painted
