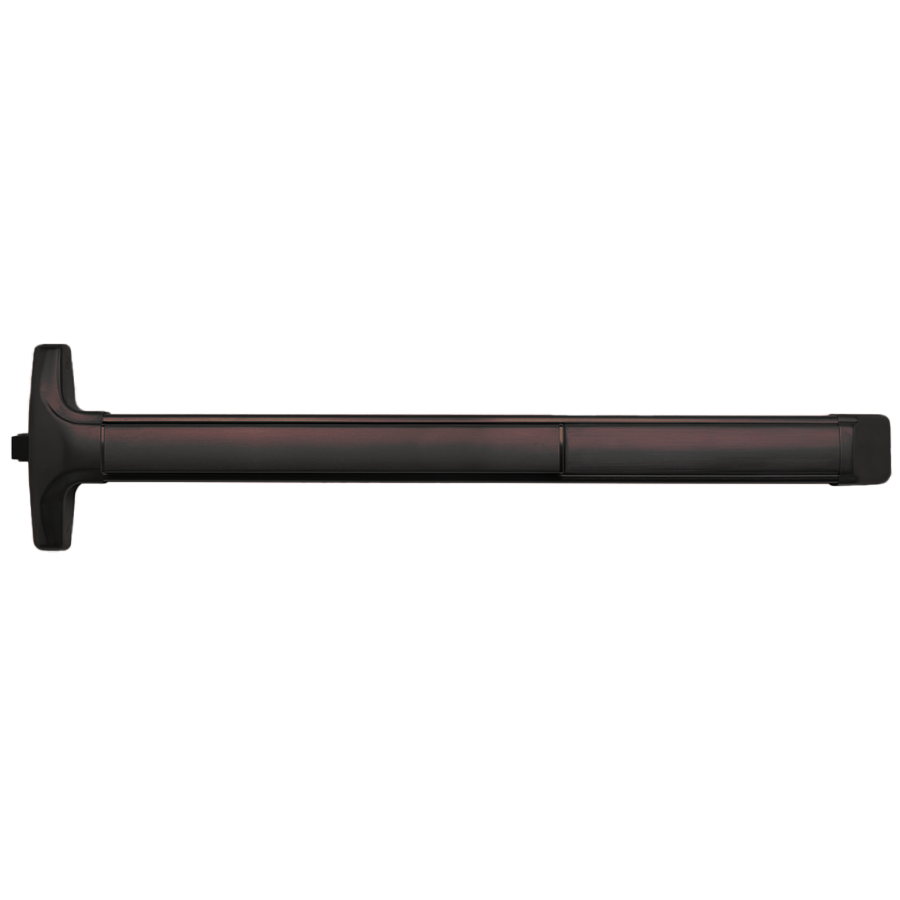

Detex FH40-LD-695-48 Advantex Narrow Fire/Wind Rated Rim Device, No Trim, 48in, Dark Bronze

Detex Corporation FH40-LD-695-48 Advantex Narrow Fire/Wind Rated Stile Rim Device is engineered for superior performance across various environments, particularly in high-use and high-abuse settings. Designed for narrow stile single and double doors, this heavy-duty panic and fire exit hardware features a patented mounting plate and strike locator system that simplifies installation, eliminating the need for paper templates. Crafted from durable materials, the FH40 series is built to withstand the rigors of daily use while providing reliable exit solutions. It boasts a stainless steel deadlocking Pullman-type latch bolt and non-handed design, ensuring versatile application. The 48-inch width is ideal for a range of door sizes, fitting standard 1-3/4" to 2-1/4" doors, with a minimum stile requirement of 4-3/4". Moreover, the device is fire rated for 180 minutes and hurricane rated, ensuring safety and compliance with stringent building codes. The heavy-duty angled end cap helps deflect damage away from the device, enhancing its longevity. With easy-to-change outside trims and minimal door prep, the FH40-LD-695-48 provides a seamless integration into any security system. Available in a dark bronze painted finish, it combines functionality with aesthetic appeal.

Advantex Narrow Fire/Wind Rated Stile Rim Device, No Trim, Less Dogging, 48in, 695/SP313 Dark Bronze Painted

The FH40 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of narrow stile single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments.
• Patented mounting plate and strike locator replaces paper templates
• Minimal door prep saves time and money
• Heavy duty angled end cap deflects damage away from device
• Outside trims are easily changed or rekeyed without removing device from door
• Fast and easy installation saves time and money

Features:

• Stainless steel deadlocking, Pullman-type latch bolt
• Non-handed
• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• 1/8 turn dogging
• Field sizeable

Mechanical Options:

• F - 3-Hour Fire Rated
• H - Hurricane Rated
• AM - Anti-Microbial Coating
• HD - Hex Dogging (Std.)
• CD - Cylinder Dogging
• LD - Less Dogging
• 98 - Semi Mortise Strike (Std.)
• 99 - Surface Strike
• 24 - Fits 24" Door Width
• 30 - Fits 30" Door Width
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width
• EC1 - Heavy duty angled end cap (Std.)
• EC2 - Flush end cap

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Integration (EI)
• Electric Latch Retraction (ER)
• Delayed Egress - Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Unlock (EU2W)
• Latch Bolt Signaling (LX)
• Latch Bolt Signaling for High Voltage (LXV)
• Electric Switching (ES)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• GB2 - Glass Bead Kit
• SN1 - Sex Nut Kit (2 per package)
• SSK - Security Torx Screw Kit
• Trim Functions

Technical Information:

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4" doors
• Minimum Stile - 4-3/4"
• Machine and Self-Drilling Screws (Std.)
• Optional Sex Nuts for wood or composite doors
• Security Torx screws available

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Brushed Brass
• 611/US9 - Polished Bronze
• 612/US10 - Brushed Bronze
• 613/US10B - Oil Rubbed Bronze
• 628/US28 - Aluminum Satin
• 629/US32 - Polished Stainless Steel
• 630/US32D - Brushed Stainless Steel
• 693/SPBLK - Black Painted
• 695/SP313 - Dark Bronze Painted
