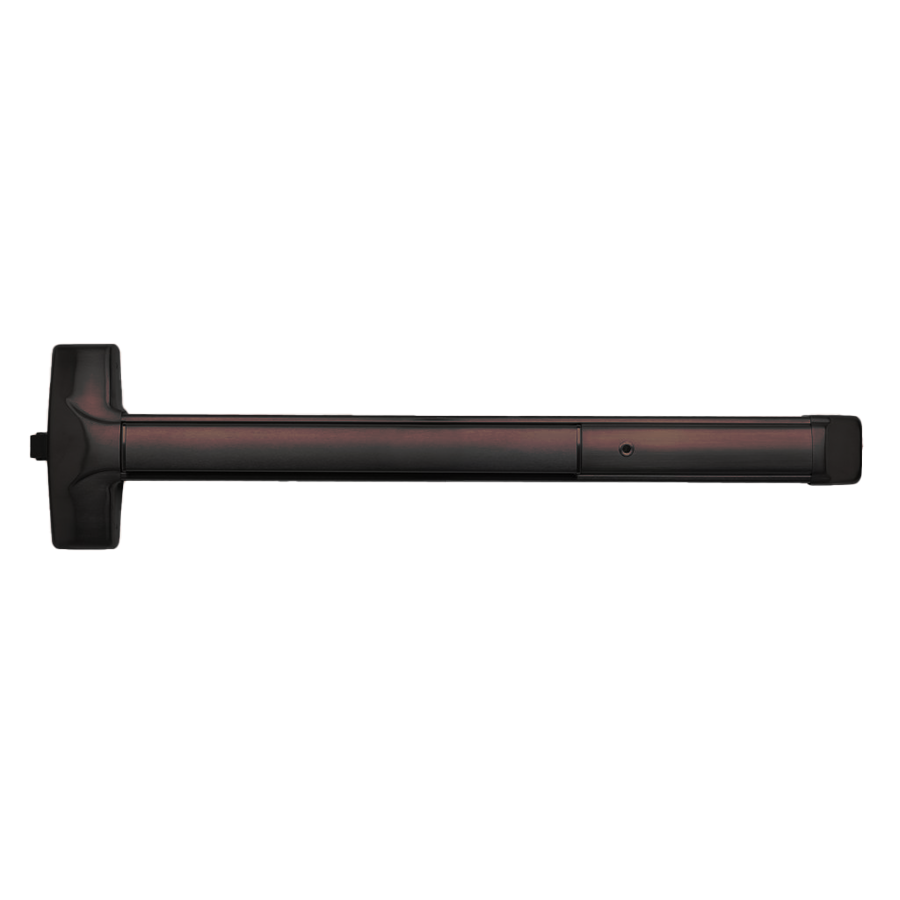

Detex H10-695-36 Advantex Wind Rated Wide Stile Rim Exit Device, 36in, Dark Bronze

Detex Corporation H10-695-36 Advantex Wind Rated Wide Stile Rim Exit Only Device offers unparalleled durability and reliability for high-traffic areas. This super-heavy-duty panic and fire exit hardware is designed to fit all types of single and double doors with mullions, making it an excellent choice for both commercial and residential applications. The patented mounting plate and strike locator system facilitate easy installation, eliminating the need for cumbersome paper templates. Constructed for years of trouble-free service, this exit device features a stainless steel deadlocking Pullman-type latch bolt and is tested beyond 1,000,000 cycles-twice the requirement for Grade 1 UL testing. Its non-handed design allows for flexible installation, while the heavy-duty angled end cap deflects damage away from the device. With a hex dogging mechanism, minimal door prep, and the ability to easily change or re-key outside trims without removing the device, the H10-695-36 is both practical and efficient. Finished in a dark bronze paint, this device is not only robust but also aesthetically pleasing. It is hurricane-rated and weatherproof, ensuring safety and reliability in extreme conditions. Choose the Detex H10-695-36 for a secure and dependable exit solution that meets the highest industry standards.

Advantex Wind Rated Wide Stile Rim Exit Only Device, No Trim, Hex Dogging, 36in, 695/SP313 Dark Bronze Painted

The H10 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Patented mounting plate and strike locator system replaces paper templates
• Fast and easy installation saves time and money
• Minimal door prep saves time and money
• Outside trims are easily changed or re-keyed without removing device from door
• Heavy duty angled end cap deflects damage away from device

Features:

• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• Tested beyond 1,000,000 cycles - Twice the cycling required for Grade 1 UL testing
• Non-handed
• Stainless steel deadlocking, Pullman-type latch bolt
• Field sizeable
• 1/8 turn hex or cylinder dogging

Mechanical Options:

• F - 3-Hour Fire Rated
• H - Hurricane Rated
• AM - Anti-Microbial Coating
• CD - Cylinder Dogging
• HD - Hex Dogging (Std.)
• LD - Less Dogging
• SLR - Silencer
• 99 - Surface Strike (Std.)
• 98 - Semi Mortise Strike
• EC1 - Heavy duty angled end cap (Std.)
• EC2 - Flush end cap
• 24 - Fits 24" Door Width
• 30 - Fits 30" Door Width
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Latch Retraction with Request to Exit Switch (ER EX)
• Delayed Egress - Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Integration (EI)
• Electric Unlock (EU)
• Latch Bolt Signaling (LX)
• Latch Bolt Signaling for High Voltage (LXV)
• Electric Switching (ES)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• GB1 - Glass Bead Kit
• SN1 - Sex Nut Kit (2 per package)
• SSK - Security Torx Screw Kit
• Trim Functions (see Outside Trims)

Technical Information:

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4" doors
• Minimum Stile - 4-5/8" with standard 99 strike; 4-1/8" with optional 98 strike
• Fasteners - Machine and Self- Drilling Screws standard

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Brushed Brass
• 611/US9 - Polished Bronze
• 612/US10 - Brushed Bronze
• 613/US10B - Oil Rubbed Bronze
• 628/US28 - Aluminum Satin
• 629/US32 - Polished Stainless Steel
• 630/US32D - Brushed Stainless Steel
• 693/SPBLK - Black, Painted
• 695/SP313 - Dark Bronze, Painted
