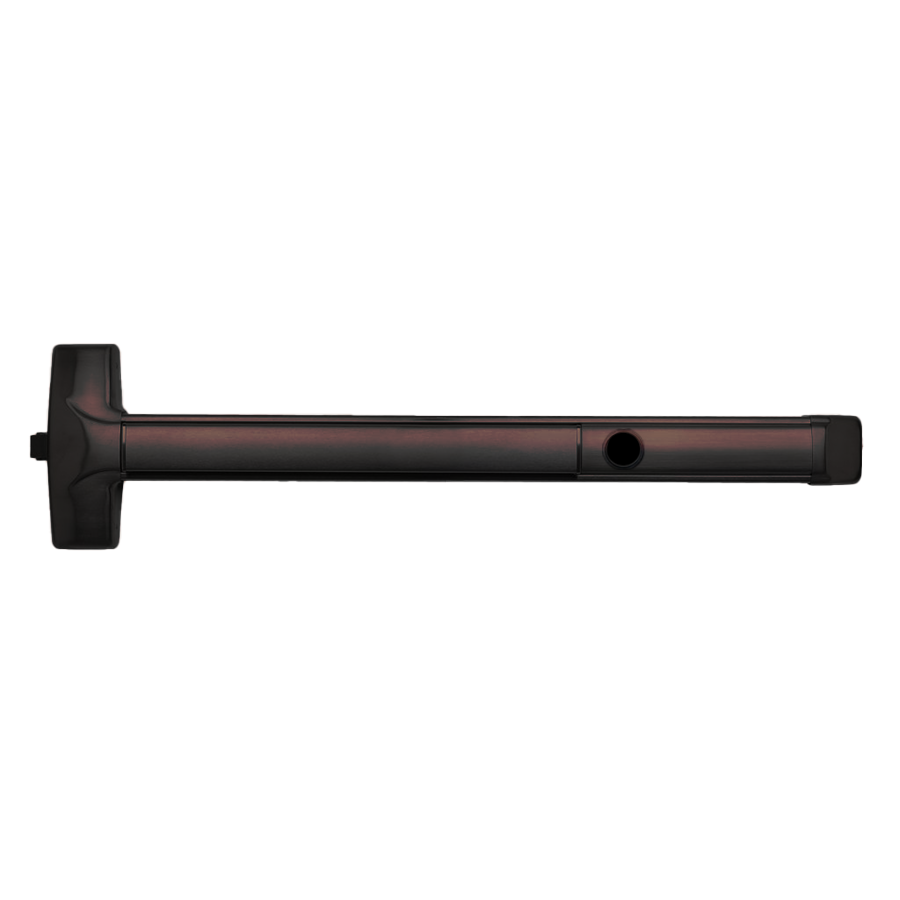

Detex H10-CD-695-48 Advantex Wind Rated Rim Exit Device, No Trim, Cylinder Dogging, 48in, Dark Bronze

Detex Corporation H10-CD-695-48 Advantex Wind Rated Wide Stile Rim Exit Only Device is engineered for high-performance in demanding environments, making it the ideal choice for both single and double doors with mullions. This super-heavy-duty panic and fire exit hardware features a patented mounting plate and strike locator system, ensuring a straightforward installation process that saves time and reduces costs. Built to last, the H10 Series is designed for years of reliable service, even in high-use and high-abuse settings. Its durable construction includes a heavy-duty angled end cap that effectively deflects damage away from the device. The device is non-handed and boasts a stainless steel deadlocking Pullman-type latch bolt. Additionally, it offers cylinder dogging functionality for ease of use. This model is tested for over 1,000,000 cycles, surpassing Grade 1 UL testing standards, and is suitable for wood, hollow metal, fiberglass, or aluminum doors. With a width of 48 inches and a dark bronze painted finish, it fits standard door thicknesses of 1-3/4" to 2-1/4". The H10-CD-695-48 is UL Listed and complies with various certifications, ensuring it meets industry standards for quality and safety.

Advantex Wind Rated Wide Stile Rim Exit Only Device, No Trim, Cylinder Dogging, 48in, 695/SP313 Dark Bronze Painted

The H10 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Patented mounting plate and strike locator system replaces paper templates
• Fast and easy installation saves time and money
• Minimal door prep saves time and money
• Outside trims are easily changed or re-keyed without removing device from door
• Heavy duty angled end cap deflects damage away from device

Features:

• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• Tested beyond 1,000,000 cycles - Twice the cycling required for Grade 1 UL testing
• Non-handed
• Stainless steel deadlocking, Pullman-type latch bolt
• Field sizeable
• 1/8 turn hex or cylinder dogging

Mechanical Options:

• F - 3-Hour Fire Rated
• H - Hurricane Rated
• AM - Anti-Microbial Coating
• CD - Cylinder Dogging
• HD - Hex Dogging (Std.)
• LD - Less Dogging
• SLR - Silencer
• 99 - Surface Strike (Std.)
• 98 - Semi Mortise Strike
• EC1 - Heavy duty angled end cap (Std.)
• EC2 - Flush end cap
• 24 - Fits 24" Door Width
• 30 - Fits 30" Door Width
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Latch Retraction with Request to Exit Switch (ER EX)
• Delayed Egress - Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Integration (EI)
• Electric Unlock (EU)
• Latch Bolt Signaling (LX)
• Latch Bolt Signaling for High Voltage (LXV)
• Electric Switching (ES)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• GB1 - Glass Bead Kit
• SN1 - Sex Nut Kit (2 per package)
• SSK - Security Torx Screw Kit
• Trim Functions (see Outside Trims)

Technical Information:

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4" doors
• Minimum Stile - 4-5/8" with standard 99 strike; 4-1/8" with optional 98 strike
• Fasteners - Machine and Self- Drilling Screws standard

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Brushed Brass
• 611/US9 - Polished Bronze
• 612/US10 - Brushed Bronze
• 613/US10B - Oil Rubbed Bronze
• 628/US28 - Aluminum Satin
• 629/US32 - Polished Stainless Steel
• 630/US32D - Brushed Stainless Steel
• 693/SPBLK - Black, Painted
• 695/SP313 - Dark Bronze, Painted
