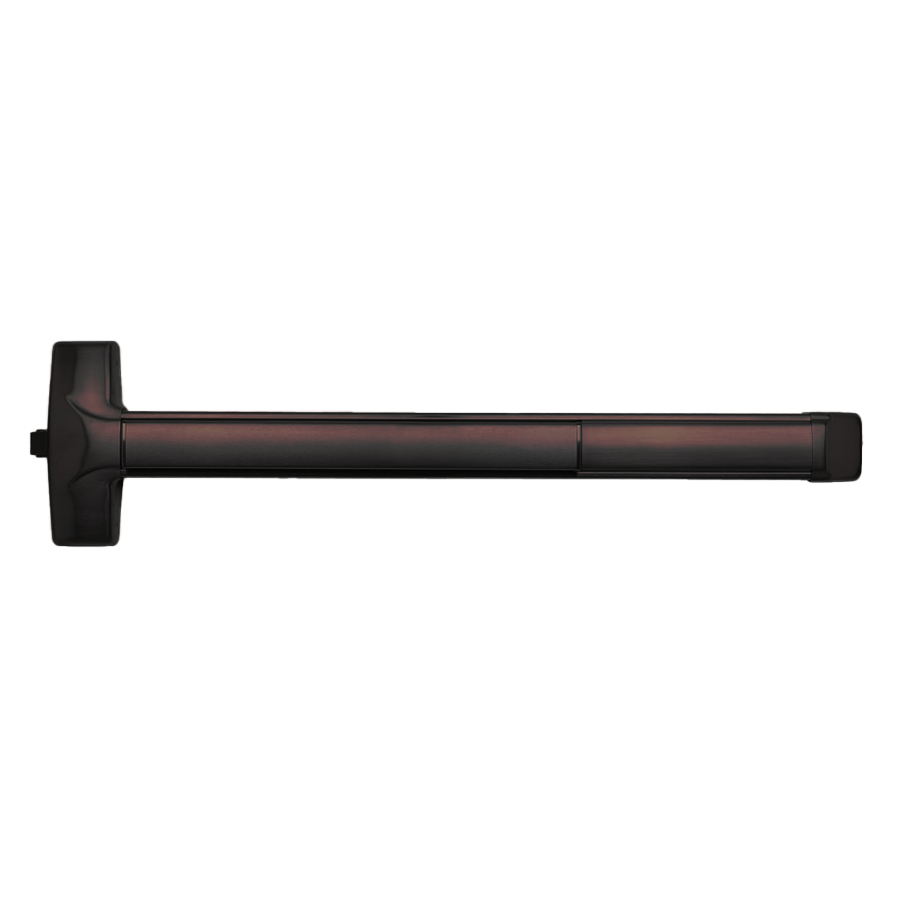

Detex H10-LD-695-48 Advantex Wind Rated Wide Stile Rim Exit Device, 48in, Dark Bronze

Detex Corporation H10-LD-695-48 Advantex Wind Rated Wide Stile Rim Exit Only Device is engineered for robust performance in high-use environments, making it an ideal choice for both panic and fire exit applications. This super-heavy-duty exit device seamlessly fits a variety of single and double doors, ensuring safety and reliability. The H10 Series features a patented mounting plate and strike locator system that eliminates the need for cumbersome paper templates, streamlining installation and minimizing door prep time. Designed for longevity, its tough construction withstands the rigors of daily use, while the heavy-duty angled end cap deflects damage away from the device. With a non-handed design and stainless steel deadlocking Pullman-type latch bolt, this exit device offers flexibility and durability. Tested to exceed one million cycles-twice the requirements for Grade 1 UL testing-the H10-LD-695-48 is a high-performance solution backed by essential certifications, including A156.3, ADA, ANSI, BHMA, and UL Listed. This model, finished in dark bronze, is also hurricane-rated, ensuring it meets stringent weatherproofing standards. With minimal maintenance and easy access to outside trims, this exit device is an essential component for maintaining safety and compliance in any building.

Advantex Wind Rated Wide Stile Rim Exit Only Device, No Trim, Less Dogging, 48in, 695/SP313 Dark Bronze Painted

The H10 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Patented mounting plate and strike locator system replaces paper templates
• Fast and easy installation saves time and money
• Minimal door prep saves time and money
• Outside trims are easily changed or re-keyed without removing device from door
• Heavy duty angled end cap deflects damage away from device

Features:

• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• Tested beyond 1,000,000 cycles - Twice the cycling required for Grade 1 UL testing
• Non-handed
• Stainless steel deadlocking, Pullman-type latch bolt
• Field sizeable
• 1/8 turn hex or cylinder dogging

Mechanical Options:

• F - 3-Hour Fire Rated
• H - Hurricane Rated
• AM - Anti-Microbial Coating
• CD - Cylinder Dogging
• HD - Hex Dogging (Std.)
• LD - Less Dogging
• SLR - Silencer
• 99 - Surface Strike (Std.)
• 98 - Semi Mortise Strike
• EC1 - Heavy duty angled end cap (Std.)
• EC2 - Flush end cap
• 24 - Fits 24" Door Width
• 30 - Fits 30" Door Width
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Latch Retraction with Request to Exit Switch (ER EX)
• Delayed Egress - Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Integration (EI)
• Electric Unlock (EU)
• Latch Bolt Signaling (LX)
• Latch Bolt Signaling for High Voltage (LXV)
• Electric Switching (ES)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• GB1 - Glass Bead Kit
• SN1 - Sex Nut Kit (2 per package)
• SSK - Security Torx Screw Kit
• Trim Functions (see Outside Trims)

Technical Information:

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4" doors
• Minimum Stile - 4-5/8" with standard 99 strike; 4-1/8" with optional 98 strike
• Fasteners - Machine and Self- Drilling Screws standard

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Brushed Brass
• 611/US9 - Polished Bronze
• 612/US10 - Brushed Bronze
• 613/US10B - Oil Rubbed Bronze
• 628/US28 - Aluminum Satin
• 629/US32 - Polished Stainless Steel
• 630/US32D - Brushed Stainless Steel
• 693/SPBLK - Black, Painted
• 695/SP313 - Dark Bronze, Painted
