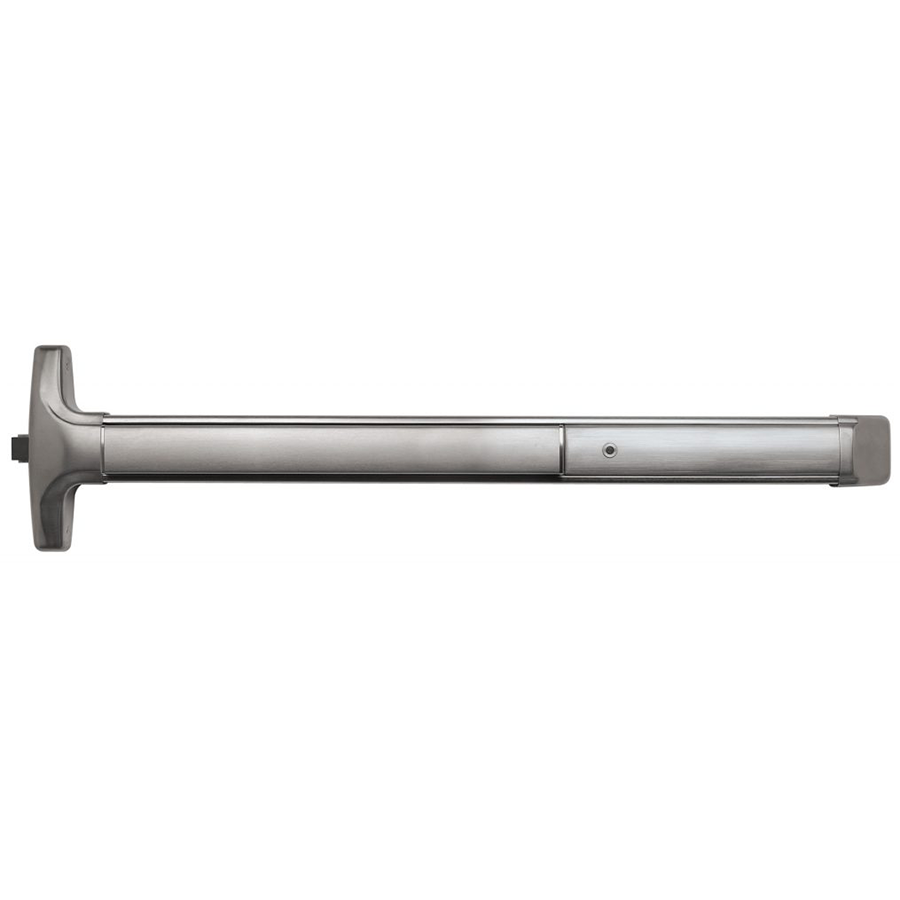

Detex H40-630-36 Advantex Narrow Wind Rated Stile Rim Device, Hex Dogging, 36in, Satin SS

Detex Corporation H40-630-36 Advantex Narrow Wind Rated Stile Rim Device offers a robust solution for ensuring safety and accessibility in high-traffic areas. Designed specifically for narrow stile single and double doors, this super-heavy-duty panic and fire exit hardware is ideal for environments where durability is paramount. With its patented mounting plate and strike locator system, installation is streamlined, saving both time and money. The tough satin stainless steel finish not only enhances the aesthetic appeal but also provides long-lasting resistance against wear and tear. The device is equipped with a stainless steel deadlocking Pullman-type latch bolt and features hex dogging for easy operation. The H40 series is non-handed and accommodates a variety of door types, including wood, hollow metal, fiberglass, and aluminum, fitting standard door thicknesses of 1-3/4" to 2-1/4". Its heavy-duty angled end cap effectively deflects damage away from the device, ensuring years of reliable service. Certified to A156.3, ADA, ANSI, BHMA, and UL standards, the Detex H40-630-36 is built for safety and compliance. Suitable for both commercial and residential applications, this exit device is an essential addition to any security infrastructure, particularly in hurricane-prone areas.

Advantex Narrow Wind Rated Stile Rim Device, No Trim, Hex Dogging, 36in, 630/US32D Satin Stainless Steel

The H40 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of narrow stile single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments.
• Patented mounting plate and strike locator replaces paper templates
• Minimal door prep saves time and money
• Heavy duty angled end cap deflects damage away from device
• Outside trims are easily changed or rekeyed without removing device from door
• Fast and easy installation saves time and money

Features:

• Stainless steel deadlocking, Pullman-type latch bolt
• Non-handed
• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• 1/8 turn dogging
• Field sizeable

Mechanical Options:

• F - 3-Hour Fire Rated
• H - Hurricane Rated
• AM - Anti-Microbial Coating
• HD - Hex Dogging (Std.)
• CD - Cylinder Dogging
• LD - Less Dogging
• 98 - Semi Mortise Strike (Std.)
• 99 - Surface Strike
• 24 - Fits 24" Door Width
• 30 - Fits 30" Door Width
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width
• EC1 - Heavy duty angled end cap (Std.)
• EC2 - Flush end cap

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Integration (EI)
• Electric Latch Retraction (ER)
• Delayed Egress - Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Unlock (EU2W)
• Latch Bolt Signaling (LX)
• Latch Bolt Signaling for High Voltage (LXV)
• Electric Switching (ES)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• GB2 - Glass Bead Kit
• SN1 - Sex Nut Kit (2 per package)
• SSK - Security Torx Screw Kit
• Trim Functions

Technical Information:

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4" doors
• Minimum Stile - 4-3/4"
• Machine and Self-Drilling Screws (Std.)
• Optional Sex Nuts for wood or composite doors
• Security Torx screws available

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Brushed Brass
• 611/US9 - Polished Bronze
• 612/US10 - Brushed Bronze
• 613/US10B - Oil Rubbed Bronze
• 628/US28 - Aluminum Satin
• 629/US32 - Polished Stainless Steel
• 630/US32D - Brushed Stainless Steel
• 693/SPBLK - Black Painted
• 695/SP313 - Dark Bronze Painted
