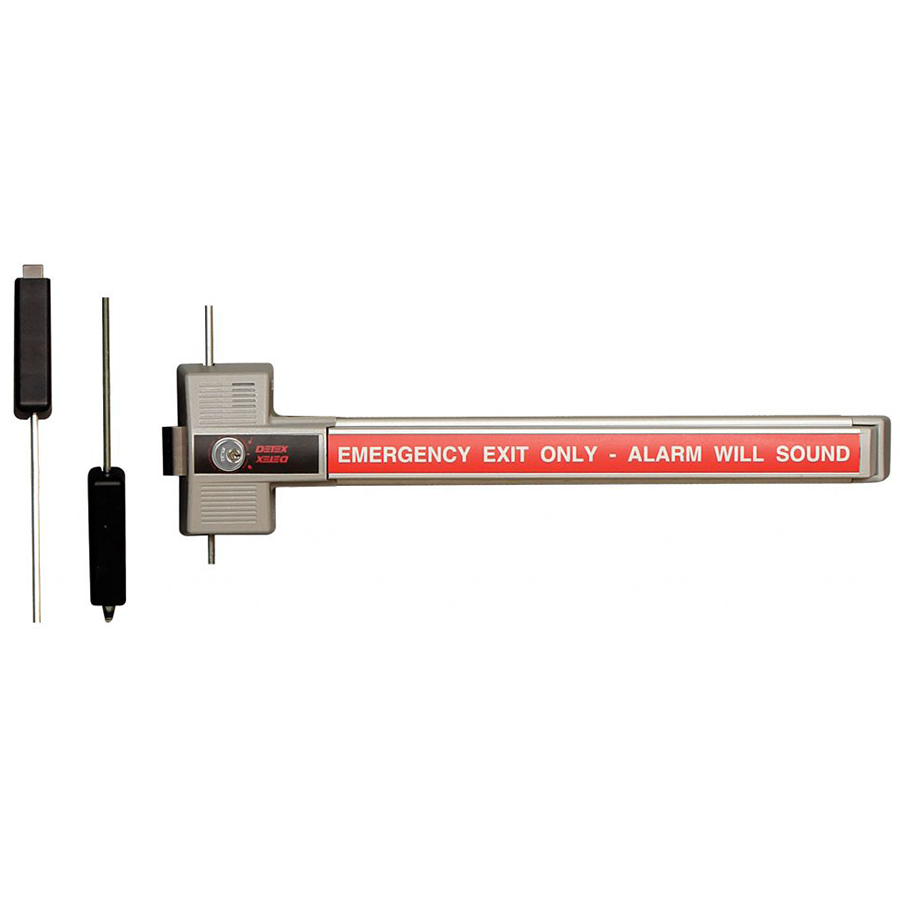

Detex HECL-230X-W-TDB Hurricane Weatherized Exit Alarm 3-Point Dead Bolt Panic Device for 36-48in Doors

Detex Corporation HECL-230X-W-TDB Hurricane Weatherized Exit Alarm is a robust 3-point deadbolt panic device designed for maximum security. This code-compliant unit features a top bolt, deadbolt, and bottom bolt, making it suitable for doors ranging from 36 to 48 inches wide. With its durable construction, the HECL-230X-W-TDB withstands rigorous weather conditions, meeting UL1034 and MIL-STD specifications, ensuring performance even in harsh environments. Equipped with a powerful 100-decibel alarm, this exit device enhances safety by alerting to unauthorized exits, effectively reducing theft risks for both employees and customers. The photoluminescent push bar sign provides visibility in low-light conditions, ensuring clear communication of emergency exits. Installation is straightforward, and the device's non-handed design allows for easy adaptability to various door types, including wood and hollow metal. The weatherproof rating makes it ideal for outdoor use. Additional features include saw-resistant deadbolts, corrosion-resistant alloy lock bodies, and compatibility with multiple cylinder types. For those seeking an added layer of security, the HECL-230X-W-TDB can accommodate enhanced locking options. Choose this reliable exit alarm for a secure environment that prioritizes safety and accessibility.

Hurricane Weatherized Exit Alarm 3 Point Dead Bolt Panic Device, Top Bolt, Dead Bolt and Bottom Bolt, Fits 36in to 48in Doors, Photo Luminescent Push Bar Sign, 100DB

The HECL-230X-W-TDB is a code compliant, battery alarmed, rugged 3-point dead bolt, panic device with photoluminescent sign providing maximum security and a 100 decibel alarm for secondary exits. This device conforms to UL1034-34 Temperature Section 34, UL1034-54 Dust Section 54, MIL-STD 810F, Method 506.4 (driving rain test); MIL-STD 810F and Method 509.4 (salt fog test).

Benefits:

• Attack resistant design for maximum holding force.
• Weather resistant design for use in outdoor or wet environments.
• Proven durability and reliability at a reasonable price.
• Easy to install.
• Reduces employee and customer theft.
• Time tested construction resists attack from the inside.
• One size fits 36"-48" doors for code compliant acceptance
• Easy to see if the lights go out.
• Straightforward operation that everyone understands.
• For maximum security with 6 locking points, specify ECL-230X-W-TDB-DX3

Features:

• 3-point, 1" throw dead bolt lock with just over 3/4" engagement with the frame, and 3/4" throw top and bottom locks with 5/8" engagement with the strike
• Saw resistant dead bolts
• Corrosion resistant alloy lock body
• 100 decibel alarm, powered by 9-volt battery (included)
• Surface/flush reversible strike
• Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without using cylinder collar
• Durable photo-luminescent sign absorbs light to then "glow in the dark" when lights are dimmed.
• Locking and unlocking (dead bolt) always arms and disarms the alarm.
• Non-handed.
• Low profile meets International Building Code requirement allowing for 4" maximum projection off face of door.
• Resetting the alarm can only be accomplished with a control key.
• For 9VDC hardwiring add BE-961-1 or BE-961-2

Mechanical Options:

• Gray Finish (Std.)
• H - Hurricane Rated
• 84" - Fits 6’8" to 7’ door
• 96" - Fits 7’ to 8’ door
• 120" - Fits 8’ to 10’ door
• 30 - Fits 30" wide door
• 96B - Dust Proof Strike
• DDSK - Double Door Strike Kit
• 96B-DDS - Dust Proof Strike & Double Door Strike
• DX1 - Add hinge side protection with one hinge bolt for 3 locking points (3/4" frame engagement)
• DX2 - Add hinge side protection with two hinge side bolts for 4 locking points (3/4" frame engagement)
• DX3 - For maximum hinge side protection add three hinge side bolts for 5 locking points (3/4" frame engagement)
• IP - Inside Pull
• SN1 - Sex Nut Kit
• English Push Plate Sign (Std.)
• RWS - Spanish Sign
• CL - Cover Lock
• SS - Security Screws
• CL-SS - Cover Lock & Security Screws
• 03T - Trim Plate
• 03PP - Pull Plate Rim cylinder required for 03 Trims (sold separately)
• 01T - Trim Plate
• 01PP - Pull Plate
• IC7R - Interchangeable core housing installed in Lock & or Trim
• IK7R - Insta Key Cylinder installed in Lock & or Trim
• RC65 - Rim Cylinder, Schlage "C" Keyway with 2 keys installed in Lock & or Trim
• RK - ECL-230D Retrofit Kit (End-cap plate & lock-body plate)
• RC - Rod Covers
• BG - Bottom Bolt Guard
• RC-BG - Rod Covers & Bottom Bolt Guard
• BE-961 - Hardwired Conversion Kit, eliminates battery (Sold Separately) NOTE: BE-961 is not weatherized, protect with NEMA enclosure.

Technical Information:

• Door Types - Wood, Hollow Metal.
• Door Thickness - Fits standard 1-3/4" - 2-1/4".
• Standard Device fits36"-48" door
• Optional Device fits 30"-36" door
• Double Door requirements:
• (1) ECL-230X-W-TDB
• (1) RC65
• (1) DDSK
• (2) ECL-230X-W-TDB
• (2) RC65
• (1) 90KR
• Machine and Sheet Metal Screws (Std.)
• Optional Sex Nuts or Security Torx Screws Available
