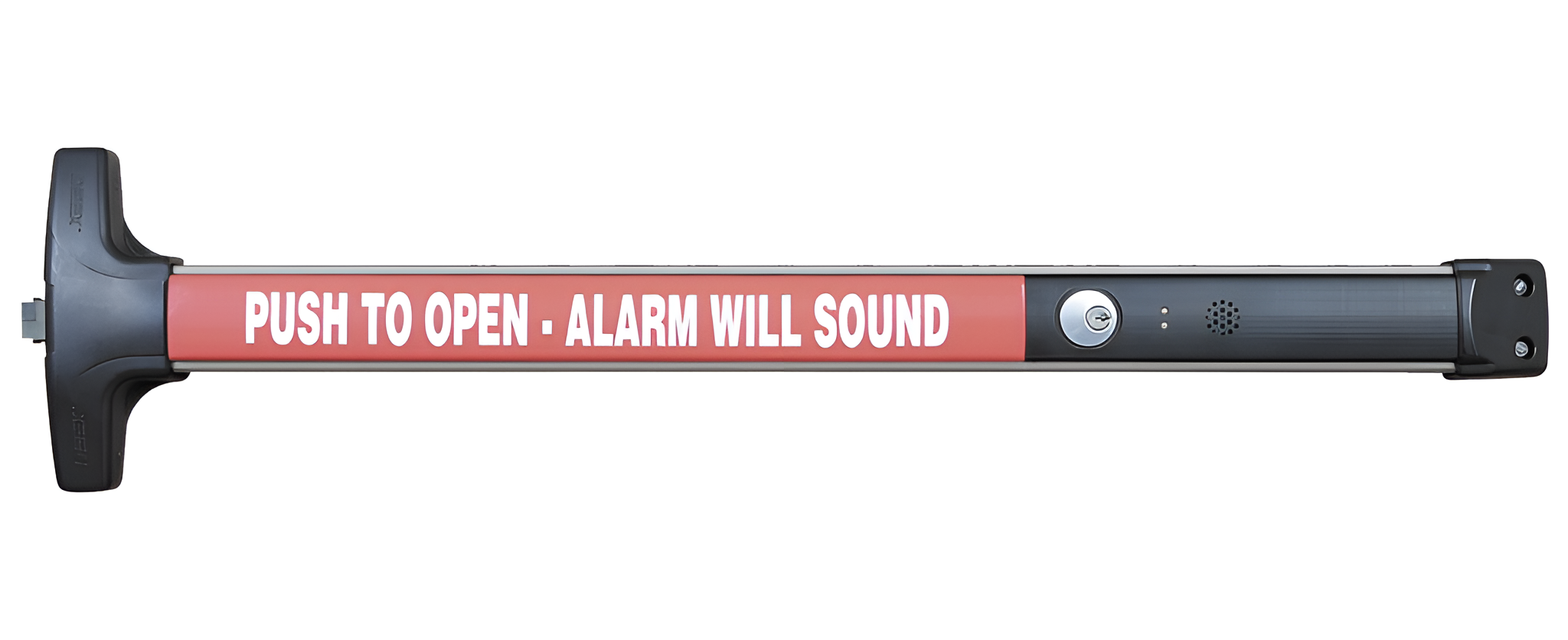

Detex V40EA-628-48 Hardwired Alarmed Rim Exit Device, 48in, 100DB Alarm, Satin Aluminum

Detex Corporation V40EA-628-48 Hardwired Alarmed Rim Exit Device delivers reliable security and peace of mind with its robust 100DB alarm feature. Designed for both single and double doors, this device is compatible with a variety of door types, including wood, hollow metal, fiberglass, and aluminum. The V40 series is known for its patented mounting plate and strike locator system, which simplifies installation by minimizing door prep time. Constructed with a heavy-duty ribbed aluminum rail extrusion and equipped with a stainless steel, 3/4" deadlocking Pullman-type latch bolt, this exit device withstands over 1400 pounds of static pull force, ensuring enhanced security. The non-handed design allows for versatile application, accommodating wide stile doors (4" or greater) and narrow stile doors (2" to 2 1/2") with the optional V40xNS model. Additional features include easy-to-change outside trims without removing the device from the door and a durable finish in satin aluminum. With certifications including A156.3, ADA, ANSI, BHMA, and UL Listed, the V40EA-628-48 meets industry standards for safety and reliability. Its modular design further supports various outside trims and functions, making it an ideal choice for any building professional seeking an efficient and effective exit solution.

Hardwired Alarmed Rim Exit Device, No Trim, 48in, 100DB Alarm, 628/US28 Satin Aluminum

The V40 Series rim exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available. Standard V40 Rim Device accommodates wide stile doors, 4" or greater stile, and flush doors. For Narrow Stile doors, 2" to 2 1/2" stiles, specify V40xNS model which provides a 2" longer device and a lower profile strike.

Benefits:

• Priced to be the best value for durable and attractive loss prevention panic hardware
• Patented mounting plate and strike locator replaces paper templates
• Minimal door prep saves time and money
• Fast and easy installation saves time and money
• Fits almost any door in any décor
• Outside trims are easily changed or rekeyed without removing device from door
• Angled end cap deflects damage away from device

Features:

• Covers a 161 door prep
• Stainless steel, 3/4" deadlocking Pullman-type latch bolt
• Non-handed
• Field sizeable
• 1/8 turn hex key dogging
• Heavy-duty ribbed aluminum rail extrusion
• High impact ABS and anodized surfaces
• Withstands over 1400 pounds of static pull force for greater security
• Modular design accepts a variety of outside trims and functions
• Standard and narrow stile pull trims available

Mechanical Options:

• CD - Cylinder Dogging
• HD - Hex Dogging (Std.)
• LD - Less Dogging
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width
• F - 3-Hour Fire Rated
• H - Hurricane Rated
• For Narrow Stile that fits 2" Narrow stile glass door see V40xNS
• 99 - Surface Strike (Std.)
• 98 - Semi Mortise Strike
• Available with 628 Base Rail Extrusion (Std.)
• Available with 711 Base Rail Extrusion
• FC3 - Flexible 3’ Conduit Kit, mounts to device end cap
• FC10 - Flexible 10’ Conduit Kit, mounts to device end cap
• PT5 - Concealed mortise mount power transfer
• EH8 - Five-knuckle energy transfer hinge - 8 wires

Electrical Options:

• Exit Alarm (EA)
• Exit Alarm with 9 volt Battery (EB)
• Electric Dogging (ED)
• Delayed Egress (EE)
• Electric Integration (EI)
• Electric Latch Retraction with Request to Exit Switch (ER EX)
• Electric Switching (ES)
• Request to Exit (EX)

Accessories:

• SN1 - Sex Nut Fasteners
• GB2 - Glass Bead Kit
• NSK- Narrow Kit - for 2" narrow stile glass door applications that must be added in the field
• Outside Trim
• Optional Sex Nuts or Security Torx Screws available

Technical Information:

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4"
• Single Door Stile - Fits 3-1/2" minimum stile doors with 99 surface strike (Std.)
• Pairs of Doors Stile - Fits 4" minimum stile doors with 99 surface strike
• Door Stile - Fits 2" narrow stile doors - specify NS
• Machine and Self-Drilling Screws (Std.)
