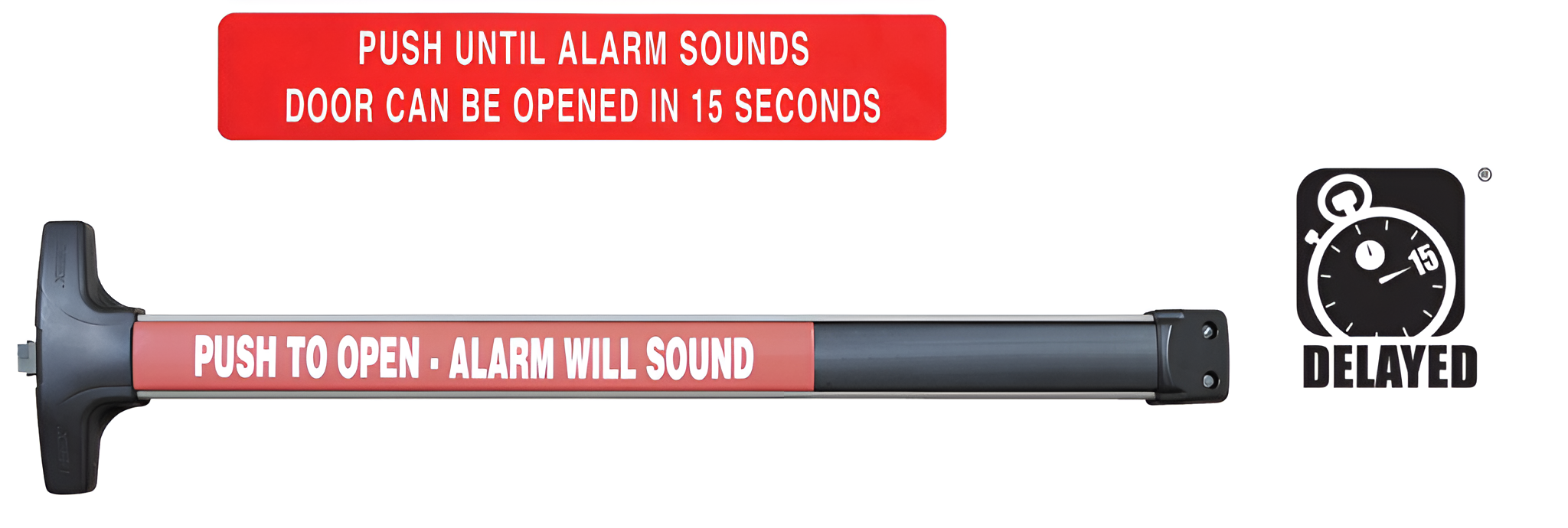

Detex V40EE-LD-628-48 Delayed Egress Rim Exit Device, 48in, 15 Sec Delay, 100DB Alarm, Satin Aluminum

Detex Corporation V40EE-LD-628-48 Delayed Egress Rim Exit Device with Power Supply is designed for maximum security and efficiency in panic and fire exit situations. This robust device, measuring 48 inches, features a 15-second delay and emits a powerful 100DB alarm, ensuring that unauthorized exits are effectively monitored. Built to accommodate both single and double doors, it boasts a patented mounting plate and strike locator system, simplifying installation and minimizing door prep time. Constructed from heavy-duty materials, the V40 Series features a stainless steel, 3/4" deadlocking latch bolt, withstands over 1400 pounds of static pull force, and is non-handed for versatile use. Its modular design allows compatibility with various outside trims, while the angled end cap deflects potential damage, ensuring longevity in demanding environments. The device meets A156.3, ADA, ANSI, BHMA, and UL certifications, making it a reliable choice for any commercial or residential application. With minimal maintenance required and the ability to easily change or rekey outside trims without removing the device, the V40EE-LD-628-48 is not only practical but also an economical solution for loss prevention. Enhance your security infrastructure today with this durable and attractive exit device.

Delayed Egress Rim Exit Device with Power Supply, 48in, 15 Second Delay with 100DB Alarm, 628/US28 Satin Aluminum

The V40 Series rim exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available. Standard V40 Rim Device accommodates wide stile doors, 4" or greater stile, and flush doors. For Narrow Stile doors, 2" to 2 1/2" stiles, specify V40xNS model which provides a 2" longer device and a lower profile strike.

Benefits:

• Priced to be the best value for durable and attractive loss prevention panic hardware
• Patented mounting plate and strike locator replaces paper templates
• Minimal door prep saves time and money
• Fast and easy installation saves time and money
• Fits almost any door in any décor
• Outside trims are easily changed or rekeyed without removing device from door
• Angled end cap deflects damage away from device

Features:

• Covers a 161 door prep
• Stainless steel, 3/4" deadlocking Pullman-type latch bolt
• Non-handed
• Field sizeable
• 1/8 turn hex key dogging
• Heavy-duty ribbed aluminum rail extrusion
• High impact ABS and anodized surfaces
• Withstands over 1400 pounds of static pull force for greater security
• Modular design accepts a variety of outside trims and functions
• Standard and narrow stile pull trims available

Mechanical Options:

• CD - Cylinder Dogging
• HD - Hex Dogging (Std.)
• LD - Less Dogging
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width
• F - 3-Hour Fire Rated
• H - Hurricane Rated
• For Narrow Stile that fits 2" Narrow stile glass door see V40xNS
• 99 - Surface Strike (Std.)
• 98 - Semi Mortise Strike
• Available with 628 Base Rail Extrusion (Std.)
• Available with 711 Base Rail Extrusion
• FC3 - Flexible 3’ Conduit Kit, mounts to device end cap
• FC10 - Flexible 10’ Conduit Kit, mounts to device end cap
• PT5 - Concealed mortise mount power transfer
• EH8 - Five-knuckle energy transfer hinge - 8 wires

Electrical Options:

• Exit Alarm (EA)
• Exit Alarm with 9 volt Battery (EB)
• Electric Dogging (ED)
• Delayed Egress (EE)
• Electric Integration (EI)
• Electric Latch Retraction with Request to Exit Switch (ER EX)
• Electric Switching (ES)
• Request to Exit (EX)

Accessories:

• SN1 - Sex Nut Fasteners
• GB2 - Glass Bead Kit
• NSK- Narrow Kit - for 2" narrow stile glass door applications that must be added in the field
• Outside Trim
• Optional Sex Nuts or Security Torx Screws available

Technical Information:

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4"
• Single Door Stile - Fits 3-1/2" minimum stile doors with 99 surface strike (Std.)
• Pairs of Doors Stile - Fits 4" minimum stile doors with 99 surface strike
• Door Stile - Fits 2" narrow stile doors - specify NS
• Machine and Self-Drilling Screws (Std.)
