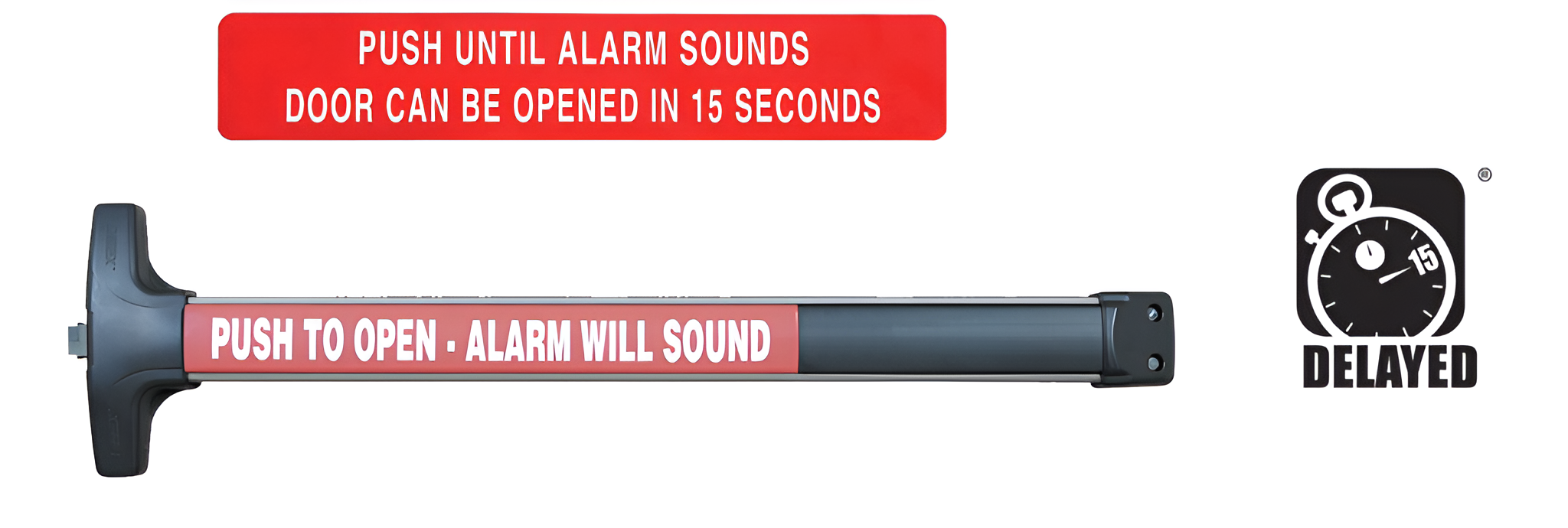

Detex V40EEX-W-LD-RWE-FC10 DCE-18312 Value Rim Exit Device, Delayed Egress, Weatherized, 36in, Red/White Pushpad

Detex Corporation V40EEX-W-LD-RWE-FC10 DCE-18312 Value Rim Exit Device offers a reliable solution for delayed egress applications, featuring a 15-second delay and a weatherized design. Ideal for high-traffic areas such as garden centers, amusement parks, and healthcare facilities, this exit device enhances safety without compromising security. Its internal blocking kit works seamlessly with Rim or Surface Vertical Rod (SVR) devices, providing controlled egress while preventing unauthorized exits. Designed for easy installation, the V40EEX includes a robust magnetic blocker kit and a red/white English pushpad for intuitive operation. The device’s durable construction ensures long-lasting performance, minimizing replacement costs. It is compatible with a logic controller, which is sold separately, allowing for effective management of delayed egress and nuisance alarms. This exit device fits standard 36-inch doors and can be customized with various mechanical options, including Less Dogging. The V40EEX is UL Listed and complies with essential safety standards, making it suitable for a wide range of applications. With its sleek aluminum finish and versatile design, it blends seamlessly into any environment, ensuring both functionality and aesthetic appeal. Elevate your security measures with the Detex Corporation V40EEX-W-LD-RWE-FC10 DCE-18312 Value Rim Exit Device.

DCE-18312 Value Rim Exit Device, Delayed Egress 15 Second, Weatherized, BP2 Mounting Plate, Less Dogging, Magnetic Blocker Kit, Red/White English Pushpad, 99 Surface Strike, 36in, 10ft Flex Conduit. (Controller not Included 12-800-DE1), 628/US28 Aluminum

The EEX-W feature provides an internal blocking kit in the panic lock for use with Rim or Surface Vertical Rod (SVR) devices. EEX-W is perfect for use with Delayed Egress applications on garden center gates, amusement parks, sports arenas, swimming pool gates an other locations. EEX-W can also be used in Controlled Egress applications for perimeter fencing and courtyards in psychiatric areas, dementia units, memory care facilities, birthing centers, NICUs and other healthcare facilities where code officials have final approval. EEX-W permits these applications to provide the safety and/or security where occupants’ safety is the main concern. The EEX-W does not include logic circuitry. A logic controller is required, such as the 106595-1 Power Supply/Logic Controller in NEMA 4X enclosure, and must be connected to fire alarm override.

Benefits:

• EEX is an exit device with an internal blocker and pushpad switch that allows this product to be controlled by a logic controller, making it perfect for delay and controlled egress applications without the use of a magnetic lock
• Fits almost any door in any décor
• Logic controller controls power to blocker
• Durable design provides years of trouble-free protection, saving on replacement costs
• EEX includes a pushpad switch to trigger the logic controller to initiate a nuisance alarm in a delayed egress application or sound an alarm in a controlled egress application, while still preventing exit
• Provides immediate egress while securing against entry during a power failure/fire alarm
• Fast and easy installation saves time and money
• Secure installation prevents mistakes, enhances security and reduces maintenance

Features:

• Factory-programmed, pre-wired, delayed egress logic controller/ power supply (required and sold separately)
• Fire Alarm override connected at power supply/logic controller
• Remote bypass and signaling options available through power supply/logic controller
• System does not require magnetic lock, panic provides delayed exit or controlled egress
• Code-compliant delayed egress signage available (ECL-395, 101906)
• Available in various configurations, for single and paired openings

Mechanical Options:

• F - 3-Hour Fire Rated
• H - Hurricane Rated
• CD - Cylinder Dogging
• HD - Hex Dogging
• LD - Less Dogging (Std.)
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width
• 99 - Surface Strike (Std.)
• 98 - Semi Mortise Strike
• FC3EC1W - Weatherized flexible 3’ Conduit Kit, includes EC1 ramped end cap
• FC3EC2W - Weatherized flexible 3’ Conduit Kit, includes EC2 flush end cap
• FC10EC1W - Weatherized flexible 10’ Conduit Kit, includes EC1 ramped end cap
• FC10EC2W - Weatherized flexible 10’ Conduit Kit, includes EC2 flush end cap
• LXxW - Weatherized Latch Bolt Signaling

Finishes:

• 605 / US3 Polished Brass
• 606 / US4 Brushed Brass
• 611 / US9 Polished Bronze
• 612 / US10 Brushed Bronze
• 613 / US10B Oil Rubbed Bronze
• 629 / US32 Polished Stainless Steel
• 630 / US32D Brushed Stainless Steel
