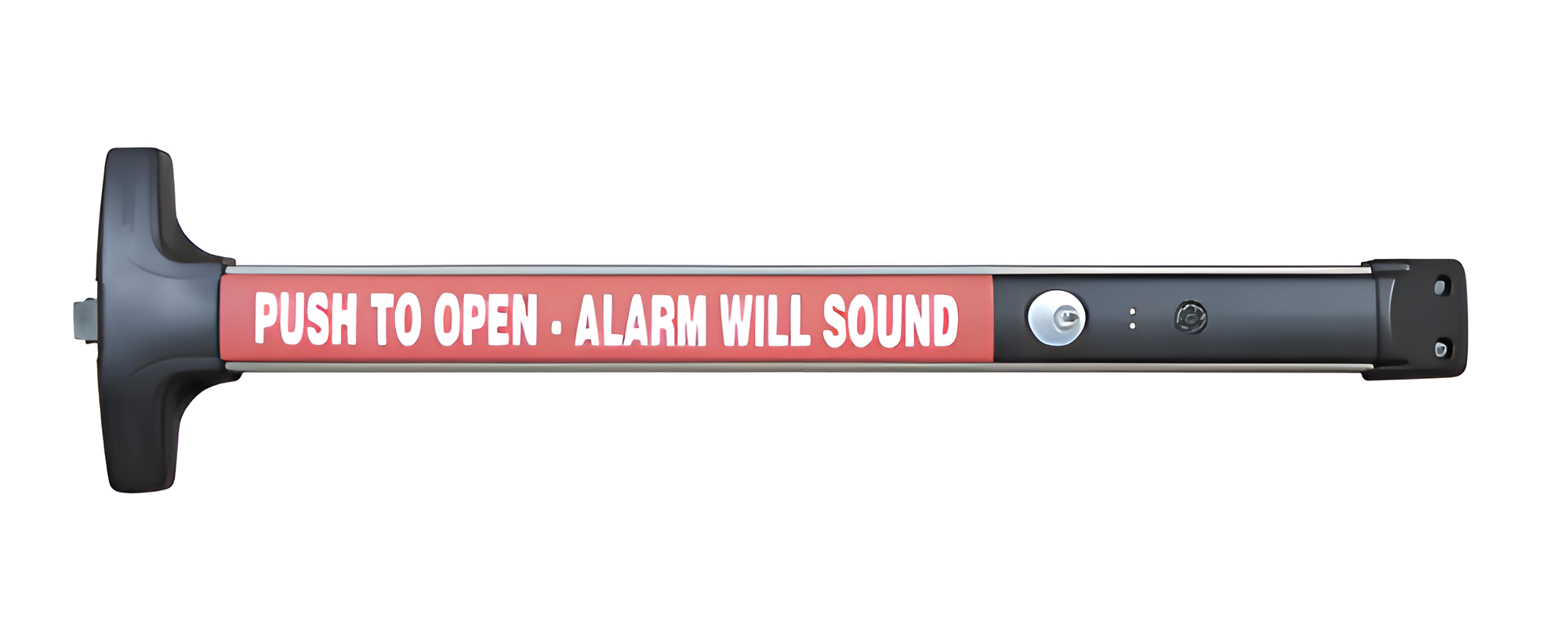

Detex V40EX-W-CD-628-48 Weatherized Rim Exit Device, REX, Cylinder Dogging, 48in, Satin Aluminum

Detex Corporation V40EX-W-CD-628-48 Weatherized Rim Exit Device with Request to Exit (REX) is an ideal choice for ensuring safety and convenience in high-traffic environments. This robust panic and fire exit hardware fits both single and double doors, making it versatile for various applications, including gates exposed to the elements. Constructed with a stainless steel, 3/4" deadlocking Pullman-type latch bolt, this device offers superior security, withstanding over 1400 pounds of static pull force. The patented mounting plate and strike locator simplify installation, eliminating the need for paper templates and ensuring precise alignment. Its field-reversible design accommodates a range of door types, including wood, hollow metal, fiberglass, and aluminum, while the 48" width caters to wider openings. Engineered for durability, the V40EX-W-CD features a ribbed aluminum rail extrusion and high-impact ABS surfaces, ensuring it remains functional under rigorous conditions. The angled end cap deflects damage, further enhancing its longevity. With easy accessibility to outside trims without removing the device, maintenance is hassle-free. Additionally, it complies with UL panic and fire exit hardware standards, assuring you of its reliability. Choose the Detex V40EX-W-CD for an economical, yet top-tier solution to your exit security needs.

Weatherized Rim Exit Device with (REX) Request to Exit, Cylinder Dogging, 48in, 628/US28 Satin Aluminum

The V40xW Series rim exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors and gates with mullions that are or may be exposed to the weather. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available. In addition to listing as UL panic and fire exit hardware device, this device conforms to UL1034-34 Temperature Section 34 , UL1034-54 Dust Section 54, MIL-STD 810F, Method 506.4 (driving rain test); MIL-STD 810F, Method 509.4 (salt fog test) and UBC standard 7-2 (positive pressure).

Benefits:

• Priced to be the best value for durable and attractive loss prevention panic hardware
• Angled end cap deflects damage away from device
• Minimal door prep saves time and money
• Patented mounting plate and strike locator replaces paper templates
• Fits almost any door in any décor
• Outside trims are easily changed or rekeyed without removing device from door
• Fast and easy installation saves time and money

Features:

• Covers a 161 door prep
• Stainless steel, 3/4" deadlocking Pullman-type latch bolt
• Non-handed
• Field sizeable
• 1/8 turn hex key dogging
• Ribbed aluminum rail extrusion
• High impact ABS and anodized surfaces
• Withstands over 1400 pounds of static pull force for greater security
• Modular design accepts a variety of outside trims and functions
• Standard and narrow stile pull trims available

Mechanical Options:

• CD - Cylinder Dogging
• HD - Hex Dogging (Std.)
• LD - Less Dogging
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width
• 99 - Surface Strike (Std.)
• 98 - Semi Mortise Strike
• F - 3-Hour Fire Rated
• H - Hurricane Rated
• NS - Narrow stile door option
• Available with 628 Base Rail Extrusion (Std.)
• Available with 711 Base Rail Extrusion
• FC3W - Weatherized 3’ Flex Conduit Kit, mounts to device end cap
• FC10W - Weatherized 10’ Flex Conduit Kit, mounts to device end cap

Electrical Options:

• Weatherized Exit Alarm (EB W)
• Weatherized Request to Exit (EX W)
• Weatherized Request to Exit High Voltage (EXV W)

Accessories:

• SN1 - Sex Nut Fasteners
• GB2 - Glass Bead Kit
• NSK- Narrow Kit - for 2" narrow stile glass door applications that must be added in the field
• GTPLKIT - Adjustable Gate Plate
• Outside Trim (see Value Series Trim Options)
• Optional Sex Nuts or Security Torx Screws available

Technical Information:

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4"
• Door Stile - Fits 2-1/2" stile doors with 99 surface strike (Std.)
• Door Stile - Fits 2" narrow stile doors - specify NS
• Machine and Self-Drilling Screws (Std.)
• Recommended Plate Size:
• Gate - 1/8" thick plate, galvanized, or painted steel or 1/4" thick alum- num plate, minimum Height - 10"
• Strike - 1/8" thick plated, galvanized, painted steel plate, angle iron, or 1/4" thick aluminum plate, minimum Height - 5"
• Stop - 1/8 thick plated, galvanized, or painted angle iron or 1/4" thick aluminum angle plate, minimum Height - 2"
