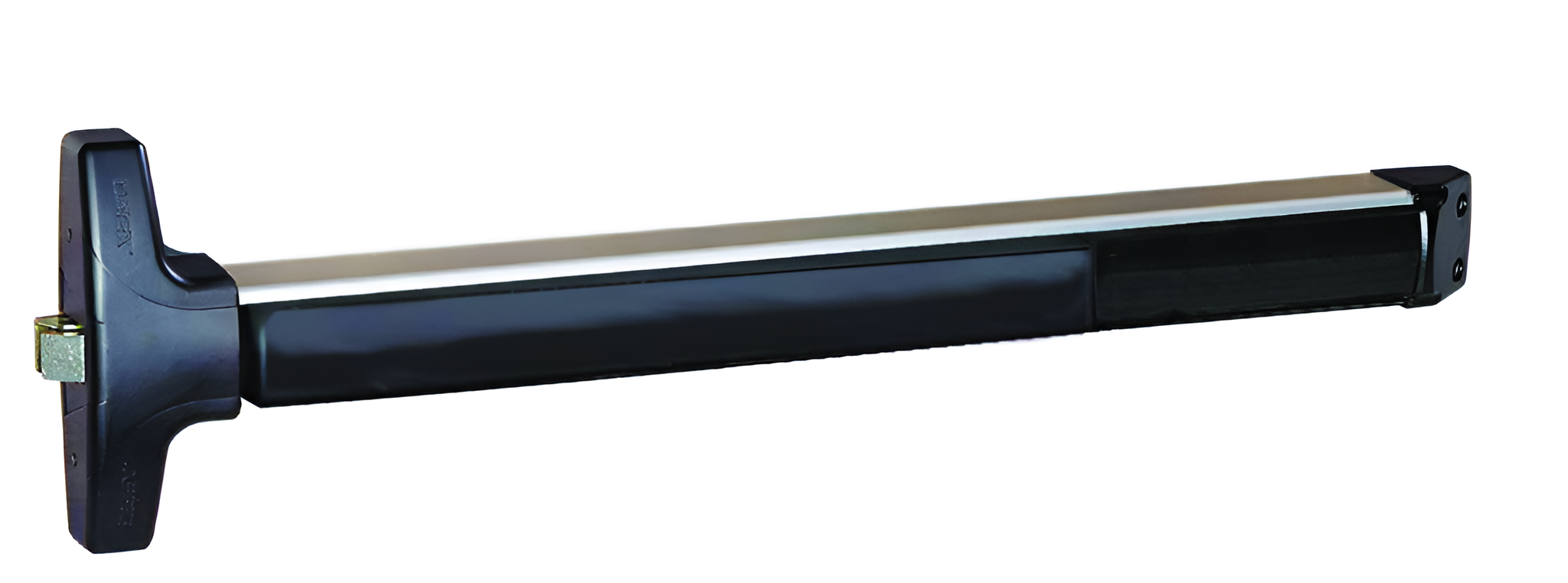

Detex V40EX-W-LD-628-36 Weatherized Rim Exit Device, REX, 36in, Satin Aluminum, Less Dogging

Detex Corporation V40EX-W-LD-628-36 Weatherized Rim Exit Device with Request to Exit (REX) is an exemplary solution in panic and fire exit hardware, blending durability with affordability. Engineered for single and double doors, as well as gates with mullions subject to weather exposure, this device boasts a patented mounting plate and strike locator system for effortless installation. It meets stringent UL panic and fire exit hardware standards, ensuring reliability in critical situations. Designed with a sleek satin aluminum finish, the V40EX-W-LD-628-36 features a robust stainless steel, 3/4" deadlocking Pullman-type latch bolt that withstands over 1400 pounds of static pull force, enhancing overall security. Its non-handed and field-sizeable design allows for versatility in application, while the minimal door preparation saves time and costs during installation. The exit device accommodates a 36-inch door width and is adaptable with various outside trims, making it suitable for diverse architectural styles. Additionally, outside trims can be easily changed or rekeyed without removing the device. With a Grade 1 rating, this exit device exemplifies a balance of aesthetics and functional security, making it an ideal choice for building professionals and knowledgeable homeowners alike.

Weatherized Rim Exit Device with (REX) Request to Exit, Less Dogging, 36in, 628/US28 Satin Aluminum

The V40xW Series rim exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors and gates with mullions that are or may be exposed to the weather. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available. In addition to listing as UL panic and fire exit hardware device, this device conforms to UL1034-34 Temperature Section 34 , UL1034-54 Dust Section 54, MIL-STD 810F, Method 506.4 (driving rain test); MIL-STD 810F, Method 509.4 (salt fog test) and UBC standard 7-2 (positive pressure).

Benefits:

• Priced to be the best value for durable and attractive loss prevention panic hardware
• Angled end cap deflects damage away from device
• Minimal door prep saves time and money
• Patented mounting plate and strike locator replaces paper templates
• Fits almost any door in any décor
• Outside trims are easily changed or rekeyed without removing device from door
• Fast and easy installation saves time and money

Features:

• Covers a 161 door prep
• Stainless steel, 3/4" deadlocking Pullman-type latch bolt
• Non-handed
• Field sizeable
• 1/8 turn hex key dogging
• Ribbed aluminum rail extrusion
• High impact ABS and anodized surfaces
• Withstands over 1400 pounds of static pull force for greater security
• Modular design accepts a variety of outside trims and functions
• Standard and narrow stile pull trims available

Mechanical Options:

• CD - Cylinder Dogging
• HD - Hex Dogging (Std.)
• LD - Less Dogging
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width
• 99 - Surface Strike (Std.)
• 98 - Semi Mortise Strike
• F - 3-Hour Fire Rated
• H - Hurricane Rated
• NS - Narrow stile door option
• Available with 628 Base Rail Extrusion (Std.)
• Available with 711 Base Rail Extrusion
• FC3W - Weatherized 3’ Flex Conduit Kit, mounts to device end cap
• FC10W - Weatherized 10’ Flex Conduit Kit, mounts to device end cap

Electrical Options:

• Weatherized Exit Alarm (EB W)
• Weatherized Request to Exit (EX W)
• Weatherized Request to Exit High Voltage (EXV W)

Accessories:

• SN1 - Sex Nut Fasteners
• GB2 - Glass Bead Kit
• NSK- Narrow Kit - for 2" narrow stile glass door applications that must be added in the field
• GTPLKIT - Adjustable Gate Plate
• Outside Trim (see Value Series Trim Options)
• Optional Sex Nuts or Security Torx Screws available

Technical Information:

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4"
• Door Stile - Fits 2-1/2" stile doors with 99 surface strike (Std.)
• Door Stile - Fits 2" narrow stile doors - specify NS
• Machine and Self-Drilling Screws (Std.)
• Recommended Plate Size:
• Gate - 1/8" thick plate, galvanized, or painted steel or 1/4" thick alum- num plate, minimum Height - 10"
• Strike - 1/8" thick plated, galvanized, painted steel plate, angle iron, or 1/4" thick aluminum plate, minimum Height - 5"
• Stop - 1/8 thick plated, galvanized, or painted angle iron or 1/4" thick aluminum angle plate, minimum Height - 2"
