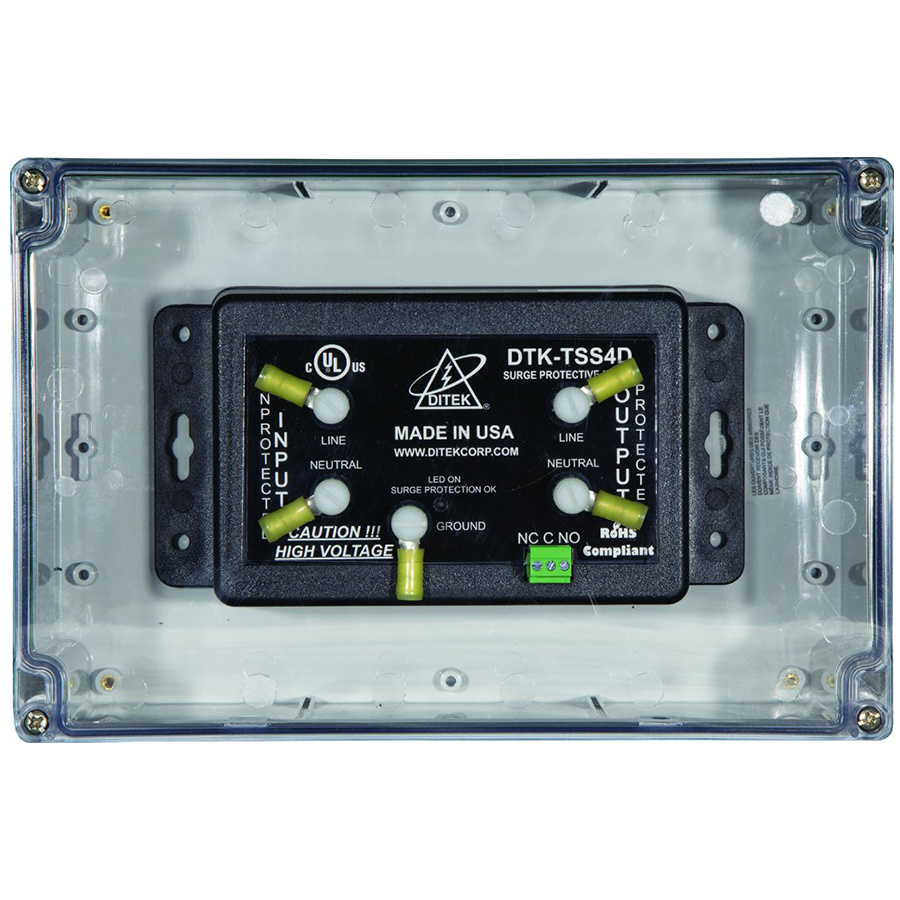

Ditek DTK-TSS4D Series Connected Surge Protector with Dry Contacts

Ditek Sales DTK-TSS4D Series Connected Surge Protector with Dry Contacts offers comprehensive surge protection solutions specifically designed for both addressable and conventional alarm systems. This device safeguards dedicated 120VAC power circuits that supply control panels and critical equipment, ensuring their reliable operation even in adverse conditions. The DTK-TSS4D features a series design for rapid response and superior protection against electrical surges. Its multi-stage hybrid circuit design enhances resilience against surges, while the diagnostic LED provides clear visibility of system power and surge protective device (SPD) functionality. With form C dry contacts, remote monitoring of surge protection status is made easy, allowing for proactive management of your security systems. This surge protector is equipped with UL1283 EMI/RFI filtering, delivering clean power to connected devices. Its robust polycarbonate NEMA 4X enclosure ensures durability in various environments, rated for IP66 protection, and operational temperatures ranging from 32°F to 140°F (0°C to 40°C). Additionally, it can handle humidity levels up to 95% non-condensing. Ideal applications for the DTK-TSS4D include fire alarm panels, control panels, and other critical loads, making it an essential component in any security infrastructure. Trust in Ditek Sales for reliable protection that keeps your systems running smoothly.

Series Connected Surge Protector with Dry Contacts

DTK-TSS4D provides total surge protection solutions for addressable and conventional alarm systems. The DTK-TSS4D protects dedicated 120VAC power circuits that feed control panels and other critical equipment. It includes dry contacts for remote notification of surge protection status and EMI/RFI filtering to ensure clean power for connected equipment.

Features:

• Series design for fast response and best level of protection
• Multi-stage hybrid circuit design
• Diagnostic LED provides positive indication of system power and SPD function
• Form C dry contacts for remote monitoring
• UL1283 EMI/RFI Filtering
• UL Listed NEMA 4X enclosure

Applications:

• Fire Alarm Panels
• Control Panels
• 120Vac Single Phase Critical Loads
• Applications where a UL Listed SPD is required

Specifications:

• Connection Method: Hardwired, series configuration
• Housing: Polycarbonate NEMA 4X (IP66) UL94 Flammability Rating
• Operating Temperature: 32°F – 140°F (0°C – 40°C)
• Maximum Humidity: 95% non-condensing
• Dimensions: 9.5" L X 6.25" W x 3.63" H (241 mm x 159 mm x 92 mm)
