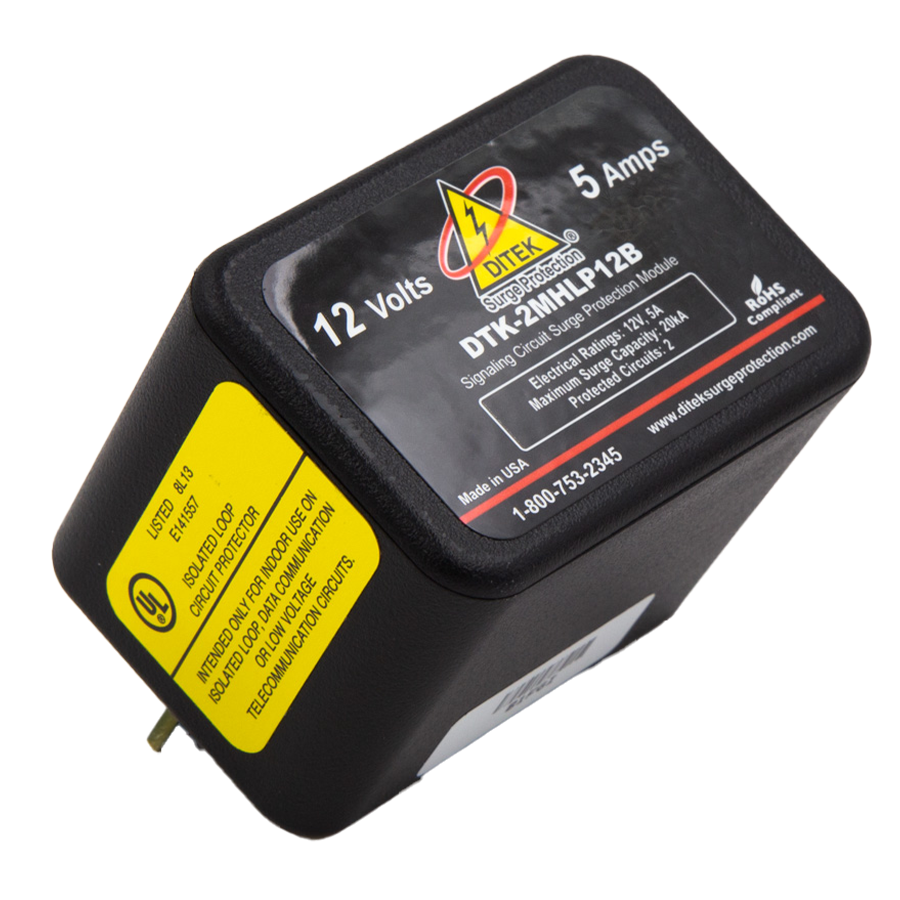

Ditek TK-2MHLP12B Data Signaling Circuit Surge Protection Module

Ditek Sales TK-2MHLP12B Data Signaling Circuit Surge Protection Module delivers robust protection for low voltage circuits in a compact and convenient design. This module is specifically engineered for easy installation, featuring a field-replaceable modular design and a Snap-Track base system, enabling the protection of multiple circuit pairs with a common ground. The TK-2MHLP12B safeguards two low voltage circuit pairs per module, utilizing a hybrid design that combines Surge Absorbing Devices (SAD) and Gas Discharge Tubes (GDT) for enhanced reliability. With six voltage configurations available, this surge protector is versatile enough to accommodate various circuit types, making it suitable for applications such as fire alarm panel circuits, burglar alarm systems, and low-voltage landscaping lighting. Constructed from durable ABS housing, this module operates effectively in extreme temperatures, ranging from -40°F to 158°F, and withstands humidity levels up to 95% non-condensing. The hardwired multi-base mounting system allows for the protection of up to ten pairs, providing a streamlined solution for complex installations. Whether you're a professional installer or a knowledgeable homeowner, the Ditek Sales TK-2MHLP12B ensures your low voltage systems remain safe and operational.

Data Signaling Circuit Surge Protection Module

DTK-2MHLPB Series of low voltage surge protectors provide robust protection in a compact package. This series was designed for ease of installation, with convenient field-replaceable modules and a Snap-Track base system, allowing the installer to protect multiple circuits while utilizing a common ground point.

Features:

• Protects (2) low voltage circuit pairs per module
• Hybrid design utilizing SAD and GDT technologies
• Field-replaceable modular design with single point ground for fast and easy installation
• Six voltage configurations available to protect various types of circuits
• Hardwired multi-base mounting system allows protection for up to (10) pairs with a common ground
• Suitable for use on both AC and DC low voltage circuits

Applications:

• Fire Alarm Panel NAC, SLC, PIV and IDC Circuits
• Burglar Alarm Panel NAC and IDC Circuits
• 70V Speakers and Audio Equipment
• Low-Voltage Landscaping Lighting and Lighting Control Circuits
• 4-20mA Current Loops

Specifications:

• Base Connection Method: Hardwired terminals, 30-12 AWG
• Module Connection Method: Edge card into mounting base
• Housing: ABS
• Operating Temperature: -40°F - 158°F (-40°C - 70°C)
• Maximum Humidity: 95% non-condensing
