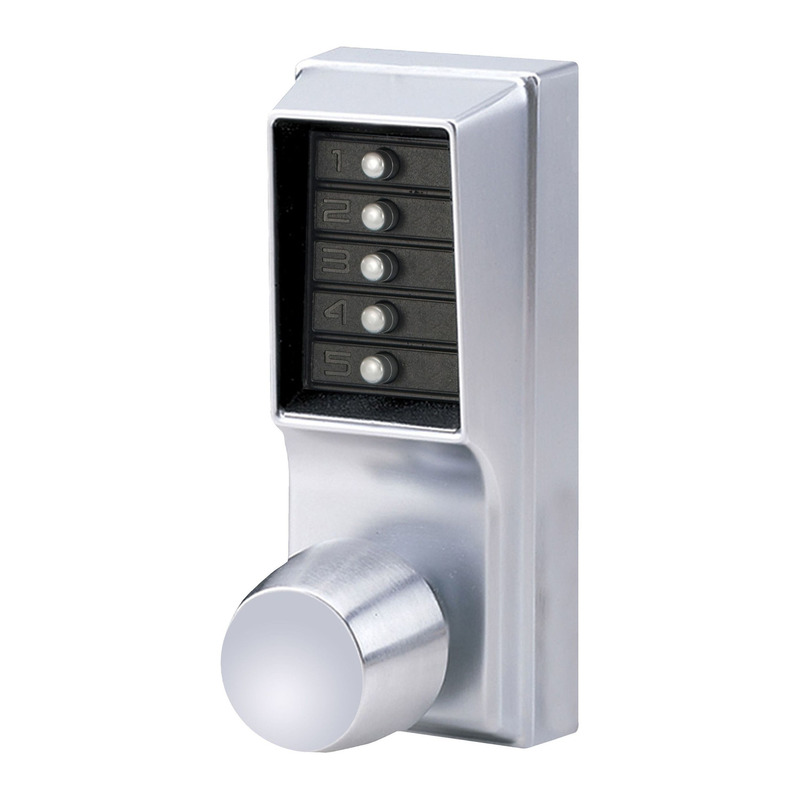

Dormakaba 1012-26D-41 Pushbutton Mechanical Lock

Kaba Access Dormakaba 1012-26D-41 Mechanical Pushbutton Lock offers a robust solution for controlling access in commercial spaces. With a Grade 1 rating, this mechanical pushbutton cylindrical knob lock is designed for durability and reliability, featuring a combination entry function that eliminates the need for keys or cards. The lock is straightforward to install, accommodating door thicknesses from 1-3/8" to 2-1/4" and includes a 2-3/8" backset with a 1/2" throw latch. The pushbutton design allows for easy programming directly through the keypad, enabling a single access code for all users. This user-friendly feature allows combinations to be changed quickly without removing the lock from the door. The lock also boasts a 3-hour UL/ULC fire rating for "A" labeled doors, ensuring safety in case of emergencies. Field-reversible handing means that the lock can be easily adjusted for left-hand doors, enhancing its versatility. The satin chrome finish provides a modern aesthetic that complements various architectural styles. Economically, this lock eliminates the need for battery replacements, reducing both material and labor costs. With its reliable functionality and straightforward operation, the Kaba Access Dormakaba 1012-26D-41 is an efficient choice for effective access control.

Mechanical Pushbutton Lock

Grade 1 Pushbutton Cylindrical Knob Lock, Combination Entry Function Only, 2-3/8" Backset, 1/2" Throw Latch, Satin Chrome Finish, Field Reversible

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

This mechanical lock, with knob option, elimates the material and labor expense of battery replacements.

• Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door
• Handing: Factory-handed for left-hand doors; easily field reversible
• Operation Modes:
  • Pushbutton Access
  • Passage (select models)—allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
  • Lockout (select models)—disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only.
• Economical: A cost effective access control solution

Resources

• CSI Specifications for Simplex 1000 Series Pushbutton Lock Solutions
• Kaba Simplex Mechanical Pushbutton Lock - 1000 Series Installation Instructions
• Simplex 1000 / L1000 - How to Reset Unknown Combination - New Style Chamber
• Simplex 1000 Series Cut Sheet
• Simplex Product Catalog
• Technical Specifications for Simplex 1000 Series Pushbutton Locks
