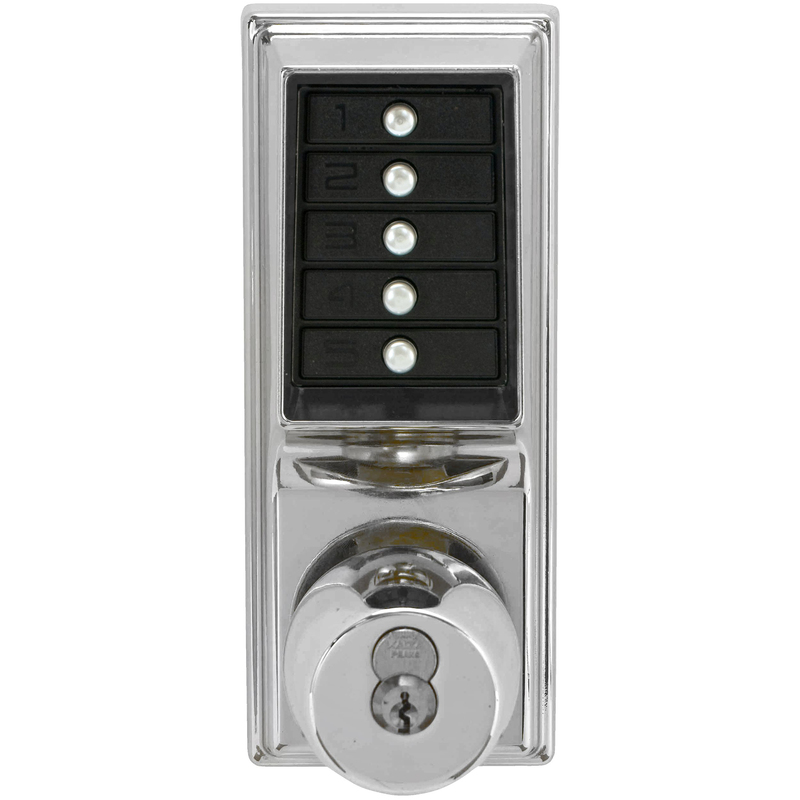

Dormakaba 1021B-026-41 Pushbutton Mechanical Lock

Kaba Access Dormakaba 1021B-026-41 Mechanical Pushbutton Lock offers robust security with its Grade 1 pushbutton cylindrical knob design. This lock features a combination entry function paired with a key override, ensuring seamless access control for both public and private spaces. With a 2-3/4" backset and a 1/2" throw latch, it is engineered for durability and reliability. The Simplex mechanical pushbutton system eliminates the need for keys or cards, making it user-friendly and cost-effective. Combinations can be changed in seconds, and the lock can be easily programmed via the keypad without removal from the door. The lock is factory-handed for left-hand doors but can be easily field-reversed for flexibility. With a 3-hour UL/ULC fire rating, this locking device is suitable for "A" labeled doors, providing peace of mind in case of emergencies. It allows for a single access code, simplifying management for users. The operation modes include pushbutton access and optional passage or lockout modes, depending on the model selected. The Kaba Access Dormakaba 1021B-026-41 is designed for commercial use, made from durable brass or bronze, and finished in a bright chrome for a polished look. This lock is an economical solution to enhance security without the hassle of batteries or complicated programming.

Mechanical Pushbutton Lock

Grade 1 Pushbutton Cylindrical Knob Lock, Combination Entry Function with Key Override, 2-3/4" Backset, 1/2" Throw Latch, 6/7-Pin SFIC Prep, Less Core, Bright Chrome Finish, Field Reversible

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

This mechanical lock, with knob option, elimates the material and labor expense of battery replacements.

• Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door
• Handing: Factory-handed for left-hand doors; easily field reversible
• Operation Modes:
  • Pushbutton Access
  • Passage (select models)—allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
  • Lockout (select models)—disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only.
• Economical: A cost effective access control solution

Resources

• CSI Specifications for Simplex 1000 Series Pushbutton Lock Solutions
• Kaba Simplex Mechanical Pushbutton Lock - 1000 Series Installation Instructions
• Simplex 1000 / L1000 - How to Reset Unknown Combination - New Style Chamber
• Simplex 1000 Series Cut Sheet
• Simplex Product Catalog
• Technical Specifications for Simplex 1000 Series Pushbutton Locks
