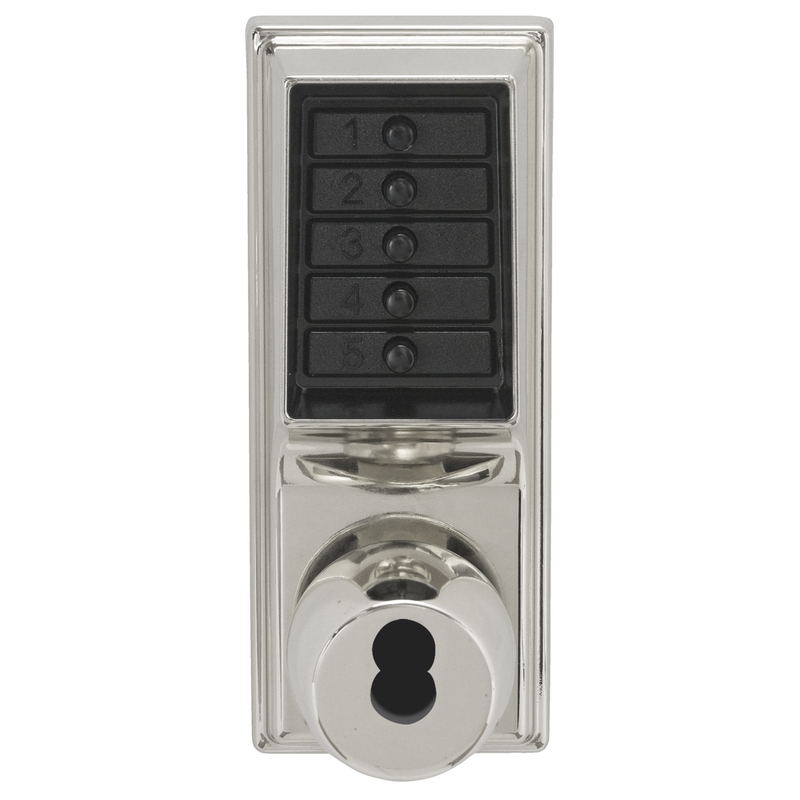

Dormakaba 1021C-026-41 Pushbutton Mechanical Lock

Kaba Access Dormakaba 1021C-026-41 Mechanical Pushbutton Lock offers a robust Grade 1 security solution for commercial applications, combining convenience and reliability. This mechanical pushbutton lock features a combination entry function with key override, ensuring easy access control without the hassles of keys or electronic components. With a 2-3/4" backset and a 1/2" throw latch, it is designed for durability and performance. The Simplex 1000 Series lock allows for a single access code, simplifying management for all users. Easily programmable via the keypad while mounted on the door, it eliminates the need for costly battery replacements and maintenance. It boasts a cylindrical latch with a 3-hour UL/ULC fire rating, making it suitable for "A" labeled doors. Field reversible for left-hand doors, this lock also offers various operation modes, including pushbutton access and optional passage mode, which allows entry without using the code. The bright chrome finish adds a polished look, while its heavy-duty construction ensures longevity. Designed for door thicknesses between 1-3/8" and 2-1/4", the Dormakaba 1021C-026-41 is a reliable choice for those seeking an economical yet effective access control solution.

Mechanical Pushbutton Lock

Grade 1 Pushbutton Cylindrical Knob Lock, Combination Entry Function with Key Override, 2-3/4" Backset, 1/2" Throw Latch, Corbin Russwin 6-Pin LFIC Prep, Less Core, Bright Chrome Finish, Field Reversible

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

This mechanical lock, with knob option, elimates the material and labor expense of battery replacements.

• Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door
• Handing: Factory-handed for left-hand doors; easily field reversible
• Operation Modes:
  • Pushbutton Access
  • Passage (select models)—allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
  • Lockout (select models)—disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only.
• Economical: A cost effective access control solution
