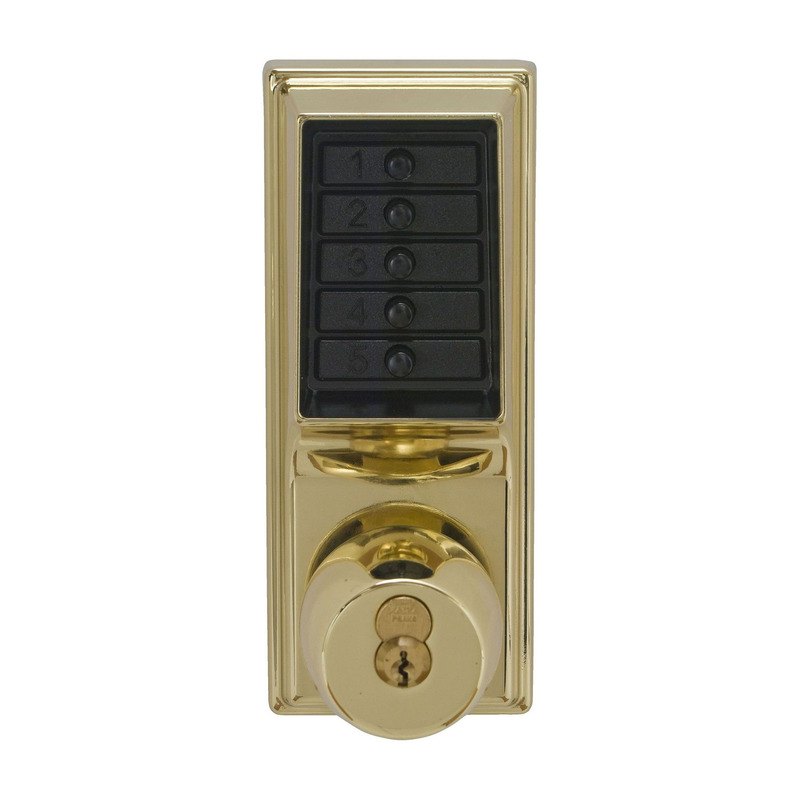

Dormakaba 1041B-03-41 Pushbutton Mechanical Lock

Kaba Access Dormakaba 1041B-03-41 Mechanical Pushbutton Lock combines robust security with user-friendly functionality. This Grade 1 pushbutton cylindrical knob lock features combination entry and passage functions, complete with a key override for added convenience. Designed to fit a 2-3/4" backset, it boasts a durable 1/2" throw latch and is prepared for 6/7-pin SFIC, allowing for easy integration into existing security systems. Ideal for both commercial applications, this lock eliminates the hassles of key management. There are no batteries to replace or complex programming procedures-simply change the access code in seconds without removing the lock from the door. The cylindrical latch ensures a 3-hour UL/ULC fire rating on "A" labeled doors, providing peace of mind in emergency situations. Operating modes include pushbutton access, a passage feature that allows entry without a code, and a lockout option that disables the lock from the inside. Factory-handed for left-hand doors, it can easily be field-reversed to suit various installations. With a bright brass finish and a 3-year limited warranty, the Dormakaba 1041B-03-41 is an economical and effective access control solution for any professional setting.

Mechanical Pushbutton Lock

Grade 1 Pushbutton Cylindrical Knob Lock, Combination Entry/Passage Functions with Key Override, 2-3/4" Backset, 1/2" Throw Latch, 6/7-Pin SFIC Prep, Less Core, Bright Brass Finish, Field Reversible

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

This mechanical lock, with knob option, elimates the material and labor expense of battery replacements.

• Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door
• Handing: Factory-handed for left-hand doors; easily field reversible
• Operation Modes:
  • Pushbutton Access
  • Passage (select models)—allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
  • Lockout (select models)—disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only.
• Economical: A cost effective access control solution

Resources

• CSI Specifications for Simplex 1000 Series Pushbutton Lock Solutions
• Kaba Simplex Mechanical Pushbutton Lock - 1000 Series Installation Instructions
• Simplex 1000 / L1000 - How to Reset Unknown Combination - New Style Chamber
• Simplex 1000 Series Cut Sheet
• Simplex Product Catalog
• Technical Specifications for Simplex 1000 Series Pushbutton Locks
