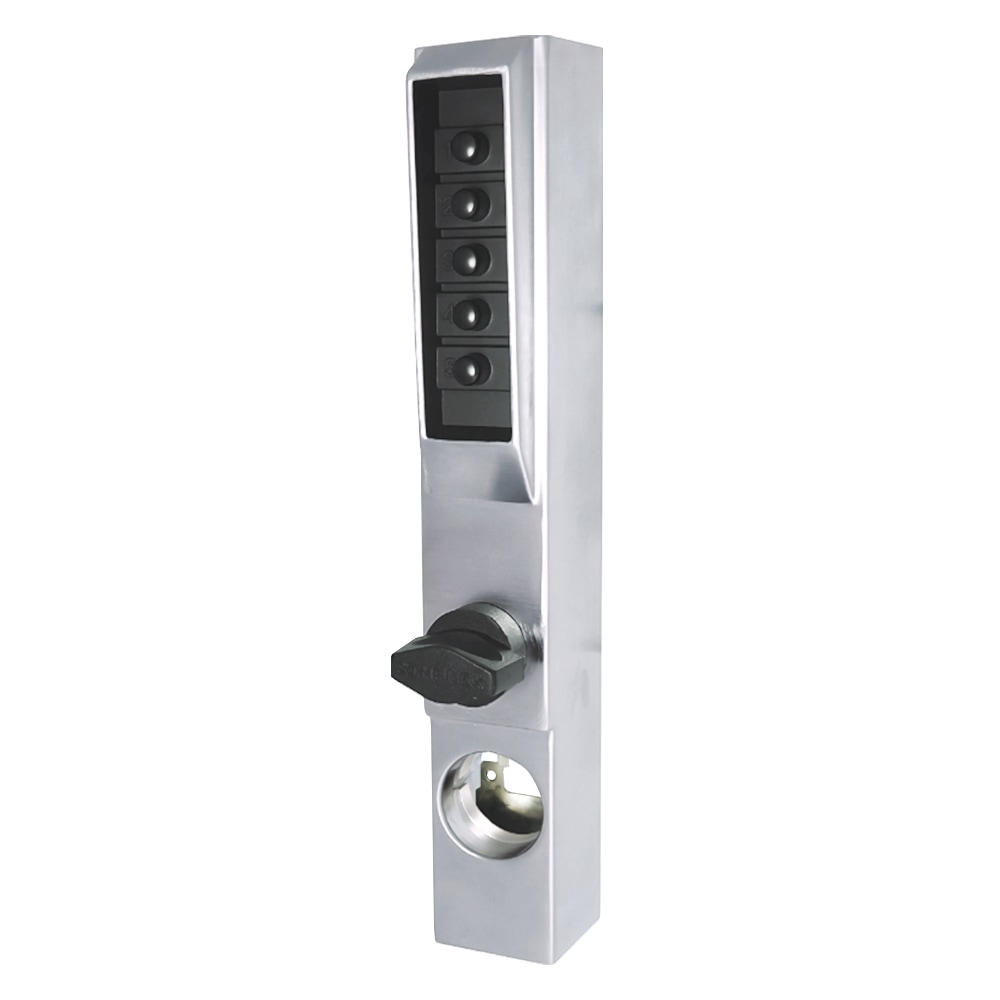

Dormakaba 3002-26D-41 Pushbutton Mechanical Lock

Kaba Access Dormakaba 3002-26D-41 Mechanical Pushbutton Lock offers a robust solution for controlling access to narrow stile aluminum glass doors with its convenient thumbturn mechanism. Designed specifically for exterior use, this lock provides secure entry via a combination, ensuring reliable access management. Constructed with an all-metal cast front housing, the lock boasts a force-resistant and clutch-protected fixed thumbturn, enhancing its durability against tampering. The vandal-resistant numeric keypad features solid metal pushbuttons, ensuring both security and longevity. This lock utilizes an Adams Rite 4510/4710/4910 mortise latch for reliable locking functionality, with an option for key override that accommodates Maximum Security (MS) mortise cylinders, allowing for integration into master-keyed systems. Installation is straightforward, with supplied instructions, a full-scale template, a combination change key, and a screwdriver for user convenience. Designed to fit door stile widths of at least 1-1/2 inches and maximum door thicknesses of 1-3/4 inches, this weather-resistant lock is built to withstand the elements, making it ideal for various applications. Backed by a one-year warranty, the Kaba Access Dormakaba 3002-26D-41 is a dependable choice for enhancing security in any setting.

Mechanical Pushbutton Lock

Narrow Stile Lock with Thumbturn, Satin Chrome

Narrow Stile Lock with Thumbturn, Satin Chrome

Provides exterior access by combination for narrow stile aluminum glass doors.

• Construction: All metal cast front housing, force-resistant, clutch-protected fixed thumbturn
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Locking Device: Adams Rite 4510/4710/4910 mortise latch
• Key Override: Accepts Maximum Security (MS) mortise cylinders; can be used to override the lock combination and gain access using a key. Allows facilities to initiate or maintain a master-keyed security system (keyed alike or keyed differently).
• Latch: Purchased separately (Adams Rite)
• Stile Width: 1⅞" (48 mm) minimum, required for mounting
• Door Thickness: 1¾" (44 mm) maximum
• Strike: Sold separately (Adams Rite or Kaba Ilco Corp.)
• Items Supplied Include: Installation instructions, full-scale template, combination change key, and screwdriver
• Durability: Weather resistant
• Warranty: 1-year warranty

Resources

• Simplex 3000 Series Cut Sheet
