Dormakaba 5021CWL26D Pushbutton Cylindrical Lock, 2-3/4
Images may not represent actual product and finish

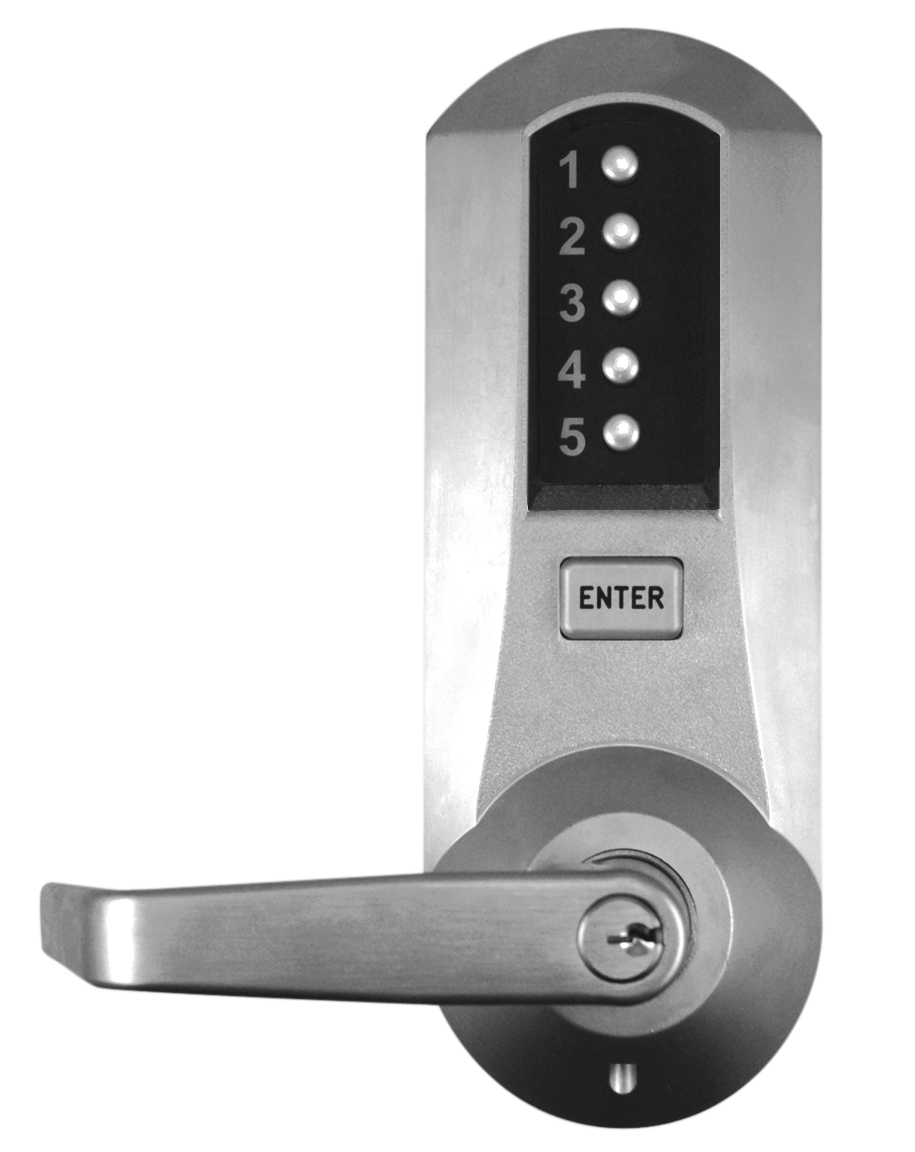

Dormakaba 5021CWL26D Pushbutton Cylindrical Lock, 2-3/4" Backset, Winston Lever, Satin Chrome

Your Price: $867.000
The Dormakaba 5021CWL26D offers keyless access with a durable satin chrome finish, ideal for high-traffic areas.
Part Number : DMA_5021CWL26D
Availability: 1 In Stock
Dormakaba 5021CWL26D Pushbutton Cylindrical Lock, 2-3/4" Backset, Winston Lever, Satin Chrome

Simplex Dormakaba 5021CWL26D Mechanical Pushbutton Cylindrical Lock combines durability and convenience, perfect for managing access between public and private spaces. This fully mechanical lock eliminates the hassle of battery replacements, making it a cost-effective choice for both material and labor expenses. With a single access code, it simplifies security management for all users, allowing quick code changes without the need to remove the lock from the door. Constructed with vandal-resistant, solid metal pushbuttons, the 5021CWL26D is designed for extensive use, featuring extra heavy-duty, solid cast housings and ADA-compliant Winston levers. The lock is wear-tested to ensure reliable operation in both indoor and outdoor environments. Its specifications include a 2-3/4" backset and compatibility with doors ranging from 1-3/4" to 2-1/4" in thickness. With a sleek satin chrome finish (26D), this lock not only provides security but also enhances the aesthetic of any entryway. The 5000 Series includes a 3-year limited warranty, underscoring its quality and reliability. The Simplex Dormakaba 5021CWL26D is a robust solution for those seeking an efficient and stylish locking system.

Mechanical Pushbutton Cylindrical Lock with 2-3/4" Backset Prep and Winston Lever Satin Chrome Finish

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.


  • Fully Mechanical Lock Eliminates the Material and Labor Expense of Battery Replacements
  • Single Access Code—One Easy-to-Manage Code for All Users
  • Vandal Resistant, Solid Metal Pushbuttons
  • Extra Heavy-Duty, Solid Cast Housings, Solid Cast; ADA-Compliant Levers, and Wear Tested for Extensive Use in Indoor and Outdoor Applications
  • Lock is Easily Programmed Via Keypad Without Removing Lock From the Door

Attributes

Backset: 2-3/4" Backset

Category: Mechanical Commercial Locksets

Crossbore Size: 2-1/8" Bore

Design: Winston Lever

Dimension: 3-3/8" x 8-7/8"; 3-13/16" Projection

Door Range: 1-3/4" to 2-1/4"

Door Thickness: 1-3/4" to 2-1/4"

Finish: Satin Chrome

Finish Code: 26D

Function: Combination Entry

Hazardous Material: NO

Latch Faceplate Dimension: 1-1/8" x 2-1/4"

Lever Knob Design: Winston Lever

Manufacturer Warranty: 3 Year Limited Warranty

Material: Cast Zinc

No Of Inners: 1

Order_ Qty: 1

Series: 5000 Series

Strike: ASA Strike

Strike Dimension: 1-1/4" x 4-7/8"

Subcategory: Mechanical Pushbutton Locksets

Subtype: Mechanical Pushbutton

Type: Mechanical Commercial Locksets

Ul Listing Type: 3-Hour UL/ULC Fire Rating for "A" Labeled Doors

Upc: 036448808274
