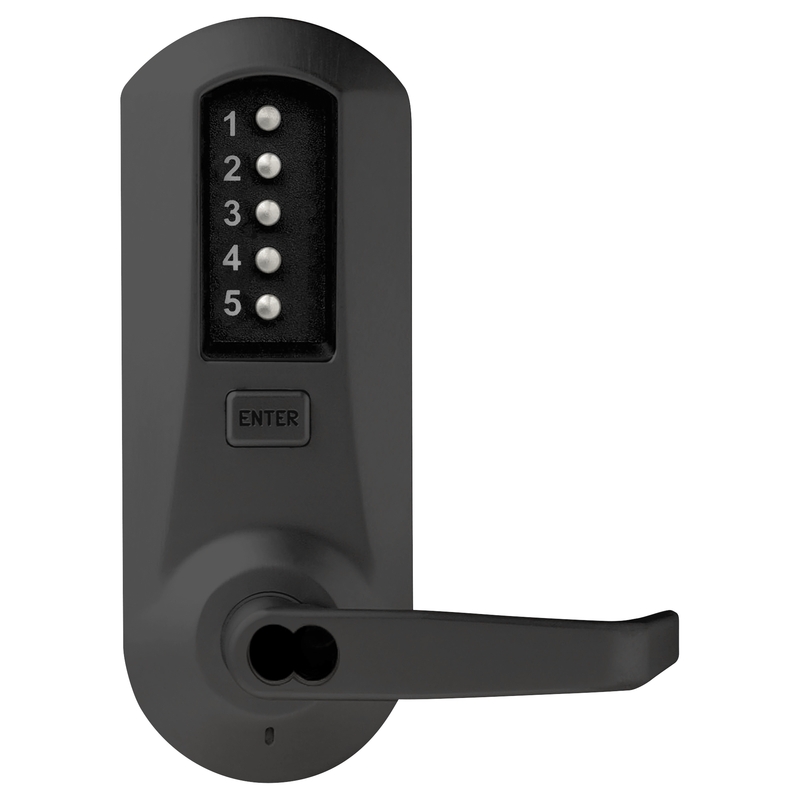

Dormakaba 5041BWL-744-41 Pushbutton Mechanical Lock

Kaba Access Dormakaba 5041BWL-744-41 Mechanical Pushbutton Lock is an innovative solution designed for seamless access control between public and private spaces. This cylindrical combination lever lock features a 2-3/4" backset and a 1/2" throw latch, ensuring reliable performance in high-traffic areas. With its 6/7-pin SFIC preparation, this lock is ready for easy integration and customization. One of the standout characteristics of the Simplex mechanical pushbutton lock is its keyless design, eliminating the costs and complications of keys and access cards. Users can quickly change combinations without removing the lock from the door, enhancing security and convenience. This model allows for free egress while providing secure exterior access via a single, easy-to-manage access code. Built to last, the lock is non-handed and pre-assembled for left-hand installations, allowing for easy field adjustments. It also includes key override capabilities with key-in-lever cylinders, ensuring flexibility in security access. Compliant with the Americans with Disabilities Act (ADA), this Grade 1 lock is an excellent choice for commercial installations, combining durability and user-friendly features in a stylish dark bronze finish with brass accents.

Mechanical Pushbutton Lock

Cylindrical Combination Lever Lock, Passage, 2-3/4" Backset, 1/2" Throw Latch, 6/7-Pin SFIC Prep, Less Core, Dark Bronze with Brass Accents

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

Provides exterior access by combination, while allowing free egress.

• Access Control: Mechanical pushbutton lock—eliminates problems and costs associated with issuing, controlling, and collecting keys and cards
• No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing the lock from the door
• Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field
• Key Override: Key-in-lever cylinders, small format interchangeable cores, large format removable core
• Accessibility Standard: Americans with Disabilities Act (ADA)

Resources

• CSI Specifications for Simplex 5000 Series Mechanical Pushbutton Locks
• Kaba Simplex Mechanical Pushbutton Lock - 5000 Series Exit Installation Instructions
• Kaba Simplex Mechanical Pushbutton Lock - 5000 Series Installation Instructions
• Simplex 5000 - How to Change the Combination (Exterior Combination Change)
• Simplex 5000 - How to Reset an Unknown Combination
• Simplex 5000 - How to change the combination (interior Combination Change)
• Simplex 5000 Series Cut Sheet
• Simplex Product Catalog
• Technical Specifications for Simplex 5000 Series Mechanical Pushbutton Locks
