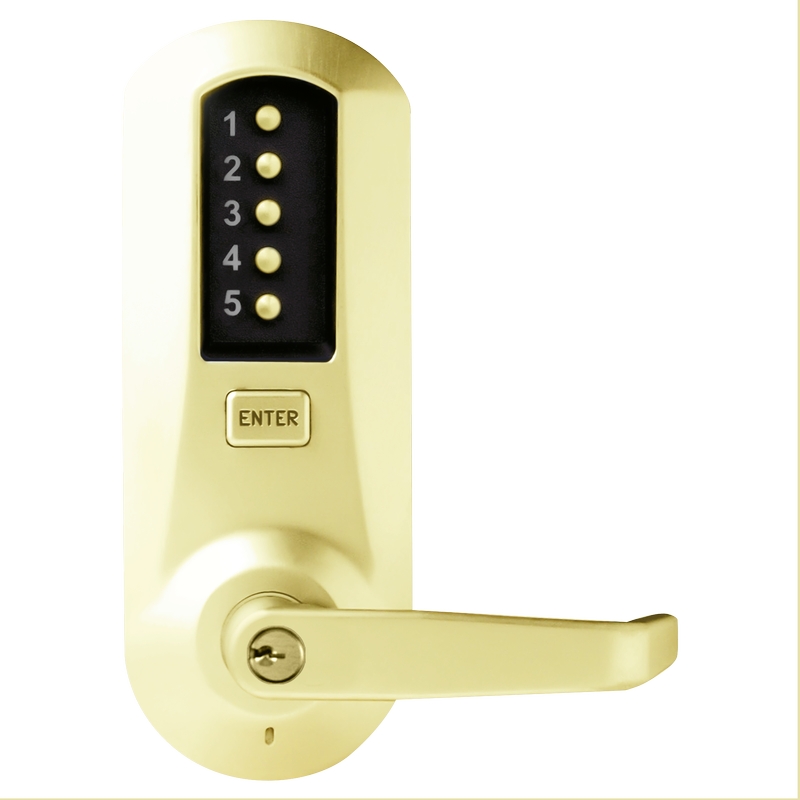

Dormakaba 5041XKWL-03-41 Pushbutton Mechanical Lock

Kaba Access Dormakaba 5041XKWL-03-41 Mechanical Pushbutton Lock offers a robust solution for controlling access in both commercial and residential settings. This cylindrical combination lever lock features a 2-3/4" backset and a 1/2" throw latch, providing reliable security with ease of use. The key-in-lever cylinder and the Kaba 90 keyway ensure compatibility with various locking systems, while the bright brass finish adds a touch of elegance. Designed for efficiency, this Simplex mechanical pushbutton lock eliminates the need for keys or cards, as well as the hassle of battery replacements. With a single access code for all users, programming is straightforward and can be done via the keypad without removing the lock from the door. The lock allows for free egress, enhancing safety while maintaining controlled access. Non-handed and pre-assembled for left-hand installations, the lock can be easily modified in the field to suit your specific needs. Meeting Americans with Disabilities Act (ADA) accessibility standards, the Dormakaba 5041XKWL-03-41 is not only practical but also compliant. With its Grade 1 rating and 6-pin configuration, this lock provides durability and peace of mind in high-traffic areas.

Mechanical Pushbutton Lock

Cylindrical Combination Lever Lock, Passage, 2-3/4" Backset, 1/2" Throw Latch, KIL, Kaba 90 Keyway, Bright Brass

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

Provides exterior access by combination, while allowing free egress.

• Access Control: Mechanical pushbutton lock—eliminates problems and costs associated with issuing, controlling, and collecting keys and cards
• No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing the lock from the door
• Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field
• Key Override: Key-in-lever cylinders, small format interchangeable cores, large format removable core
• Accessibility Standard: Americans with Disabilities Act (ADA)

Resources

• CSI Specifications for Simplex 5000 Series Mechanical Pushbutton Locks
• Kaba Simplex Mechanical Pushbutton Lock - 5000 Series Exit Installation Instructions
• Kaba Simplex Mechanical Pushbutton Lock - 5000 Series Installation Instructions
• Simplex 5000 - How to Change the Combination (Exterior Combination Change)
• Simplex 5000 - How to Reset an Unknown Combination
• Simplex 5000 - How to change the combination (interior Combination Change)
• Simplex 5000 Series Cut Sheet
• Simplex Product Catalog
• Technical Specifications for Simplex 5000 Series Mechanical Pushbutton Locks
