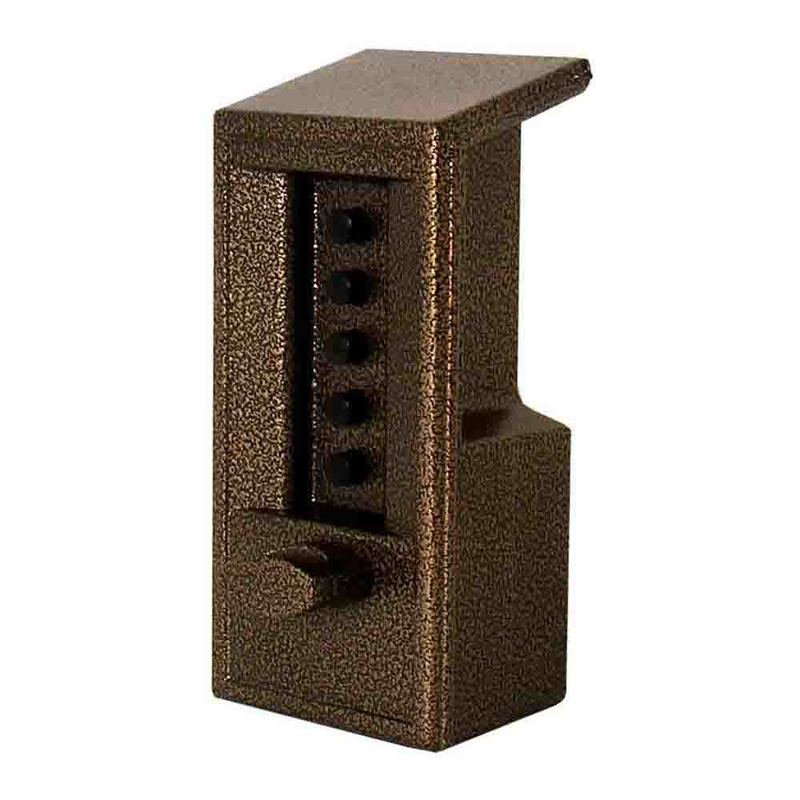

Dormakaba 6202-60-41 Pushbutton Mechanical Lock

Kaba Access Dormakaba 6202-60-41 Mechanical Pushbutton Lock offers a robust solution for managing access between public and private spaces without the hassle of keys or cards. This cylindrical combination lock features an exterior thumbturn and an interior knob, designed for a 2-3/8" backset and a 1/2" throw latch. The lock boasts a striking gold tone on the outside and bright brass on the inside, making it both functional and aesthetically pleasing. The Simplex 6200 Series eliminates the need for batteries and complicated programming, allowing users to change combinations quickly and easily without removing the lock. Constructed with durable, weather-resistant metal, it features vandal-resistant solid metal pushbuttons, ensuring longevity and security. The factory-handed design can be easily reversed for versatility. Installation is straightforward with ASA 161 door preparation, accommodating door thicknesses between 1-3/8" and 2-1/4". Additionally, it carries a 3-hour UL/ULC fire rating for "A" labeled doors, making it suitable for commercial applications. With a one-year warranty, the Dormakaba 6202-60-41 lock is a reliable choice for those seeking security and ease of use in high-traffic environments.

Mechanical Pushbutton Lock

Cylindrical Combination Lock, Exterior Thumbturn, Interior Knob, 2-3/8" Backset, 1/2" Throw Latch, Outside Gold Tone, Inside Bright Brass

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

The 6200 Series eliminates the material and labor expense of battery replacements and has a single access-code.

• Construction: All metal cast front housing, force-resistant, clutch-protected exterior thumbturn, unified interior trim plate, fixed interior knob
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Factory-handed left; easily field reversible
• Latch: ½" (13 mm) throw latch, floating faceplate (UL listed)
• Backset: 2¾" (70 mm) or 2⅜" (60 mm) backset
• Minimum Stile Recommended: 5" (127 mm)
• Strike: Standard strike plate
• Installation: ASA 161 door preparation with two additional through bore holes. Lock can be inverted if the existing auxiliary lock obstructs installation.
• Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm); wood or metal
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Durability: Weather resistant
• Warranty: 1-year warranty

Resources

• Simplex 6200 Series Cut Sheet
