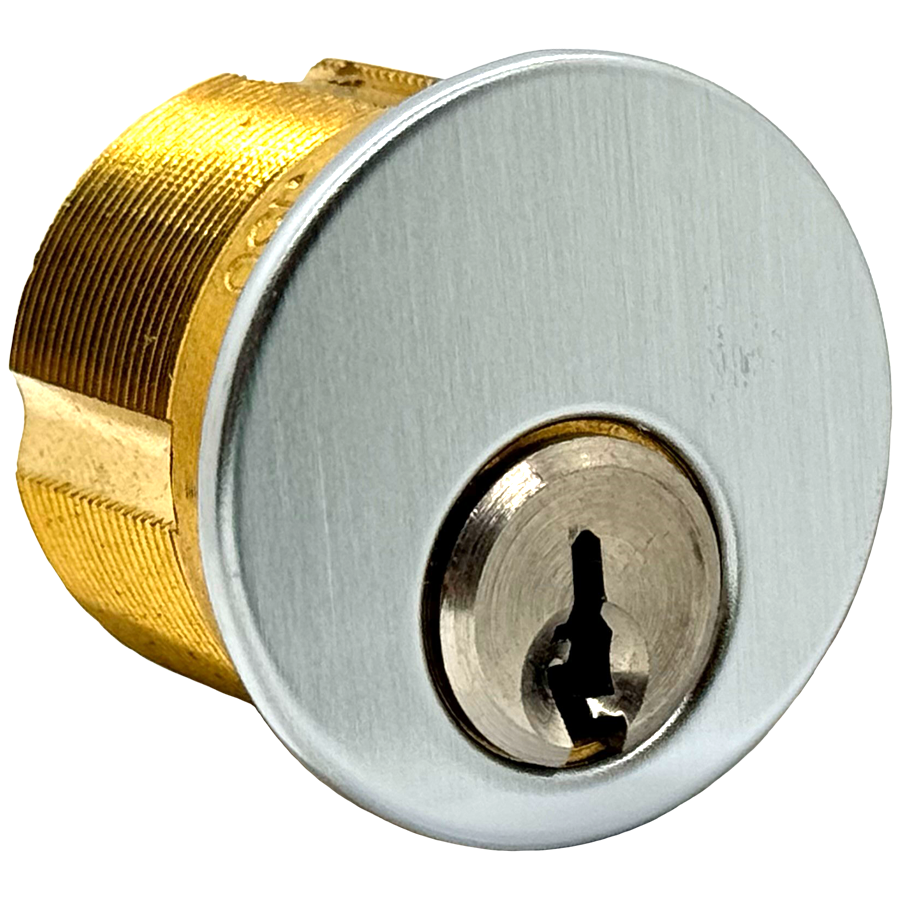

Dormakaba 7185-GC2-26D-KA2 1-1/8in Mortise Cylinder, 5-Pin, Sargent RA-RC Keyway, Keyed Alike, Satin Chrome

Ilco Unican Corporation Dormakaba 7185-GC2-26D-KA2 Mortise Cylinder is a robust and reliable solution for securing your premises. This 1-1/8 inch mortise cylinder features a 5-pin design drilled for 6, paired with the Sargent RA-RC keyway, ensuring compatibility with a wide range of locking systems. Keyed alike in pairs, this cylinder offers convenience for users who prefer uniform access across multiple locks. Crafted from solid brass bar stock, the Dormakaba cylinder is engineered to meet OEM specifications, providing exceptional durability and performance. Its satin chrome finish not only enhances its aesthetic appeal but also ensures corrosion resistance and longevity. The cylinder face boasts a diameter of 1.360 inches, while the thread size is 1.150 x 32 UNS, making it a versatile choice for various applications. This mortise cylinder is compatible with Adams Rite cam, further expanding its usability in different locking situations. Whether for residential or commercial use, the Dormakaba 7185-GC2-26D-KA2 is master key and grand master key quality, offering flexibility and security. With a variety of finishes and keying options available, it's an excellent choice for building professionals and discerning homeowners alike.

1-1/8in Mortise Cylinder, 5-Pin Drilled 6, Sargent RA-RC Keyway, Keyed Alike in Pairs, Adams Rite Cam, 626/US26D Satin Chrome

Ilco Mortise cylinders are machined from solid brass bar stock, engineered and manufactured to OEM specifications. Master key and grand master key quality, and are re-keyable to original manufacturers systems. The broad selection of models and components within our line provides you with the flexibility to cover numerous applications.

Features:

• Mortise Cylinder — Keyed:
• 14 finishes - 03, 03P, 04, 05, 10, 10B, 15, 26, 26D, 28, 29, 32, 32D, 46
• 31 keyways
• 17 cams
• 11 lengths listed below
• Thread size: 1.150 x 32 UNS.
• Cylinder face: 1.360 (34.5mm) diameter
• Factory master keying/construction master keying available
• Mortise Cylinders — Dummy
• 14 finishes - 03, 03P, 04, 05, 10, 10B, 15, 26, 26D, 28, 29, 32, 32D, 46
• 11 lengths listed below
• Mortise Cylinders — Turnknob:
• 12 finishes – 03, 04, 05, 10, 10B, 26, 26D, 28, 29, 32, 32D, 46
• 11 lengths listed below
• 17 cams
• Mortise Cylinders — Captive Turnknob:
• One turnknob key, one conventional key per cylinder (Schlage or Weiser keys only)
• 2 finishes – 03, 26D
• 3 lengths listed below
• 17 cams
• Mortise Cylinders — ADA Turnknob:
• 3 finishes – 03, 10B, 26D
• 10 lengths listed below
• 17 cams

Cam and Tailpieces:

• 1: Standard
• 2: Adams Rite
• 3: Clover
• 4: Narrow
• 5: Marks cam
• 6: Yale
• 7: Sargent offset
• 10: Long standard
• 11: 14PR-RM
• 12: 22PR-A-RM
• 13: 22PR-E-RM
• 14: Long lazy action
• 15: Schlage L
• 16: Sargent/Yale
• 17: Segal/Emhardt
• 18: Lori deadbolt
• 19: Clover Corbin/Russwin Best
• 20: Adams Rite 4070
• 23: Falcon/Saflok
• 26: Extra long standard

Keying Codes:

• KA: All keyed alike
• KD: Keyed different
• KA2: Keyed alike in pairs
• KA4: Keyed alike in fours
• 0B: 0 bitted - blade height
• MK: Master keyed
• GMK: Grand master keyed
• CMK: Construction master keyed
• When requesting MK or GMK, an additional keying code is required (KA, KD, KA2, etc.) example: 7165AA2-26D-MK/KA2

Keyway:

• AA: Arrow
• NA: R1064E/Composite
• NB: 1014C/Composite
• CA: Corbin 60
• CB: Corbin 67
• CC: Corbin 77
• CE: Corbin/Russwin L4
• CD: Corbin 59
• UA: Ilco X1054K
• KS: Kwikset 1176
• LA: Lockwood 1004
• UB: Lori L100, Harloc 700, Eagle 11929
• UE: Lori Locksmith 80
• UD: Loricentric 90
• RB: Russwin D1
• RA: Russwin 981R
• GB: Sargent LA-LC
• GC: Sargent RA-RC
• GA: Sargent LA
• SC: Schlage C
• SE: Schlage E
• SF: Schlage F
• SX: Schlage C-K
• FA: Segal 9
• WA: Weiser Ez/Falcon
• WE: Weiser 1555
• YA: Yale 8 (999)
• YG: Yale GA
