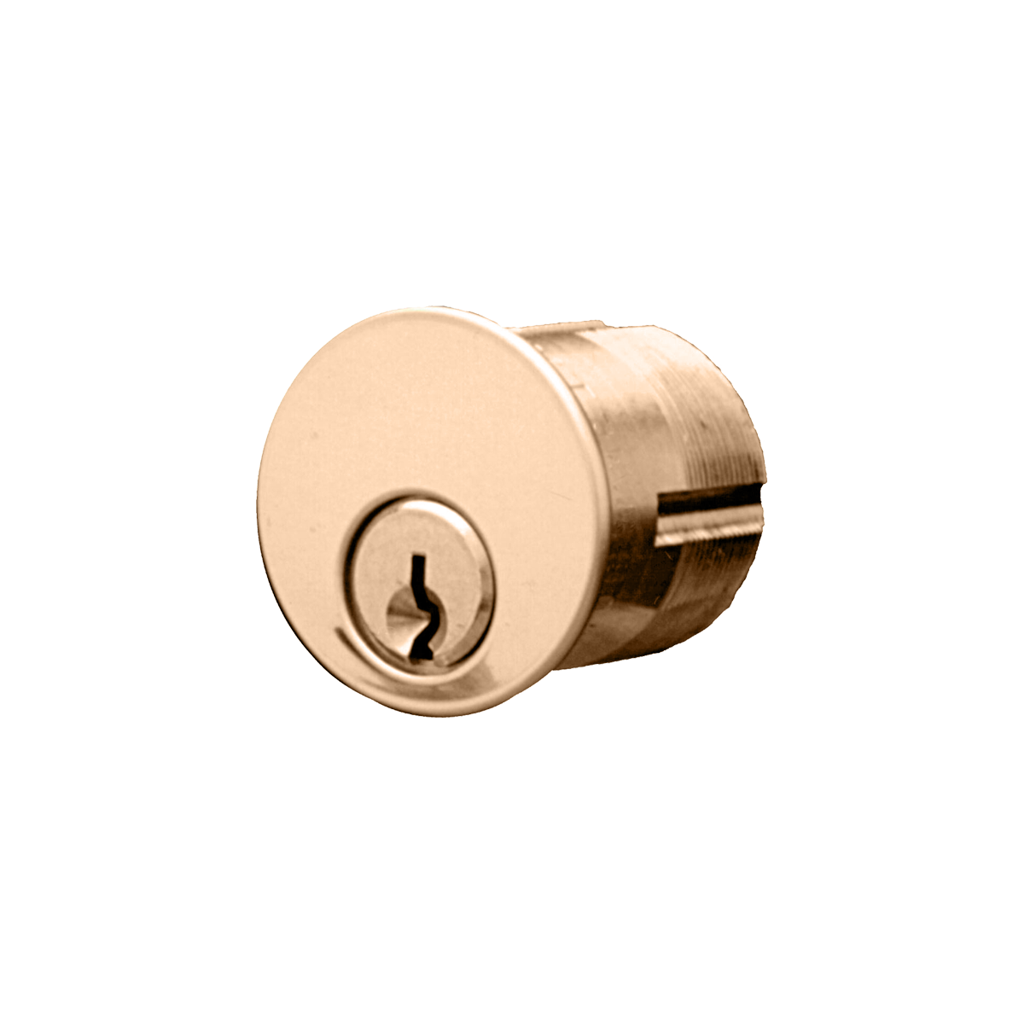

Dormakaba 7185-SC1-10-KA2 1-1/8in Mortise Cylinder, 5-Pin, Schlage C Keyway, Keyed Alike, Satin Bronze

Ilco Unican Corporation Dormakaba 7185-SC1-10-KA2 1-1/8in Mortise Cylinder offers a robust security solution designed for both residential and commercial applications. This high-quality 5-pin mortise cylinder is drilled for 6, featuring a Schlage C keyway and comes keyed alike in pairs, making it ideal for streamlining access across multiple entries. Engineered from solid brass bar stock, the cylinder not only meets OEM specifications but is also master key and grand master key compatible, providing flexibility for various locking systems. The satin bronze finish adds an elegant touch while ensuring durability and resistance to wear. With a cylinder face diameter of 1.360 inches and a thread size of 1.150 x 32 UNS, this product is designed for straightforward installation. It accommodates a standard cam, making it compatible with a wide range of locking mechanisms. The extensive keying options, including the KA2 configuration for keyed alike pairs, enhance convenience while maintaining security. Whether you are upgrading existing locks or installing a new system, the Ilco Unican Corporation Dormakaba 7185-SC1-10-KA2 is an excellent choice for those seeking reliable performance and aesthetic appeal in their locking hardware.

1-1/8in Mortise Cylinder, 5-Pin Drilled 6, Schlage C Keyway, Keyed Alike in Pairs, Standard Cam, 612/US10 Satin Bronze

Ilco Mortise cylinders are machined from solid brass bar stock, engineered and manufactured to OEM specifications. Master key and grand master key quality, and are re-keyable to original manufacturers systems. The broad selection of models and components within our line provides you with the flexibility to cover numerous applications.

Features:

• Mortise Cylinder — Keyed:
• 14 finishes - 03, 03P, 04, 05, 10, 10B, 15, 26, 26D, 28, 29, 32, 32D, 46
• 31 keyways
• 17 cams
• 11 lengths listed below
• Thread size: 1.150 x 32 UNS.
• Cylinder face: 1.360 (34.5mm) diameter
• Factory master keying/construction master keying available
• Mortise Cylinders — Dummy
• 14 finishes - 03, 03P, 04, 05, 10, 10B, 15, 26, 26D, 28, 29, 32, 32D, 46
• 11 lengths listed below
• Mortise Cylinders — Turnknob:
• 12 finishes – 03, 04, 05, 10, 10B, 26, 26D, 28, 29, 32, 32D, 46
• 11 lengths listed below
• 17 cams
• Mortise Cylinders — Captive Turnknob:
• One turnknob key, one conventional key per cylinder (Schlage or Weiser keys only)
• 2 finishes – 03, 26D
• 3 lengths listed below
• 17 cams
• Mortise Cylinders — ADA Turnknob:
• 3 finishes – 03, 10B, 26D
• 10 lengths listed below
• 17 cams

Cam and Tailpieces:

• 1: Standard
• 2: Adams Rite
• 3: Clover
• 4: Narrow
• 5: Marks cam
• 6: Yale
• 7: Sargent offset
• 10: Long standard
• 11: 14PR-RM
• 12: 22PR-A-RM
• 13: 22PR-E-RM
• 14: Long lazy action
• 15: Schlage L
• 16: Sargent/Yale
• 17: Segal/Emhardt
• 18: Lori deadbolt
• 19: Clover Corbin/Russwin Best
• 20: Adams Rite 4070
• 23: Falcon/Saflok
• 26: Extra long standard

Keying Codes:

• KA: All keyed alike
• KD: Keyed different
• KA2: Keyed alike in pairs
• KA4: Keyed alike in fours
• 0B: 0 bitted - blade height
• MK: Master keyed
• GMK: Grand master keyed
• CMK: Construction master keyed
• When requesting MK or GMK, an additional keying code is required (KA, KD, KA2, etc.) example: 7165AA2-26D-MK/KA2

Keyway:

• AA: Arrow
• NA: R1064E/Composite
• NB: 1014C/Composite
• CA: Corbin 60
• CB: Corbin 67
• CC: Corbin 77
• CE: Corbin/Russwin L4
• CD: Corbin 59
• UA: Ilco X1054K
• KS: Kwikset 1176
• LA: Lockwood 1004
• UB: Lori L100, Harloc 700, Eagle 11929
• UE: Lori Locksmith 80
• UD: Loricentric 90
• RB: Russwin D1
• RA: Russwin 981R
• GB: Sargent LA-LC
• GC: Sargent RA-RC
• GA: Sargent LA
• SC: Schlage C
• SE: Schlage E
• SF: Schlage F
• SX: Schlage C-K
• FA: Segal 9
• WA: Weiser Ez/Falcon
• WE: Weiser 1555
• YA: Yale 8 (999)
• YG: Yale GA
