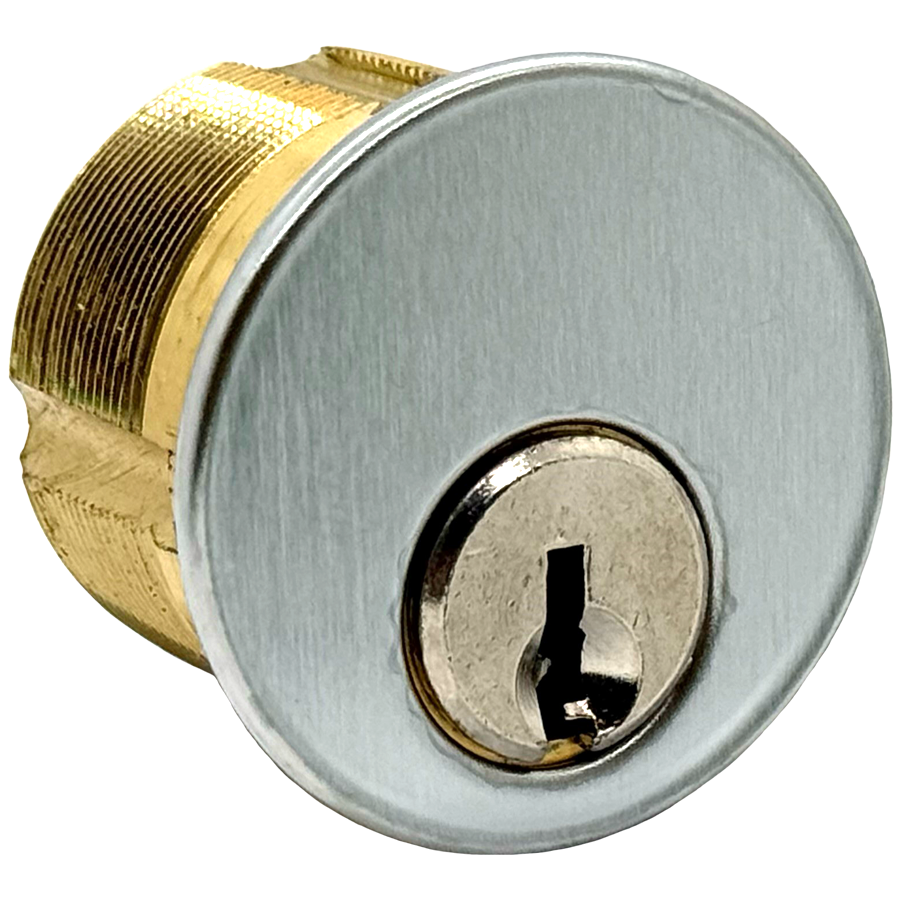

Dormakaba 7185-SX1-26D-KA2 1-1/8in Mortise Cylinder, 5-Pin, Schlage C-K, Keyed Alike, Satin Chrome

Ilco Unican Corporation Dormakaba 7185-SX1-26D-KA2 Mortise Cylinder offers a reliable solution for securing your property with its robust construction and user-friendly design. Measuring 1-1/8 inches, this 5-pin cylinder is drilled 6 and features a Schlage C-K keyway, ensuring compatibility with a wide range of locking systems. Engineered from solid brass bar stock, the Dormakaba cylinder meets OEM specifications for quality and durability. Its satin chrome finish not only provides an attractive appearance but also enhances corrosion resistance, making it suitable for both residential and commercial applications. The cylinder is keyed alike in pairs, allowing for convenient access while maintaining a secure environment. With a standard cam included, installation is straightforward, and the variety of finishes and keyways available ensures you can find the perfect match for your needs. Additionally, the cylinder can be re-keyed to match original manufacturer systems, offering flexibility in key management. Whether you are a building professional or a knowledgeable homeowner, the Ilco Unican Corporation Dormakaba 7185-SX1-26D-KA2 Mortise Cylinder is an ideal choice for those seeking security without compromising style and functionality. Elevate your locking solutions with this dependable cylinder that stands the test of time.

1-1/8in Mortise Cylinder, 5-Pin Drilled 6, Schlage C-K Keyway, Keyed Alike in Pairs, Standard Cam, 626/US26D Satin Chrome

Ilco Mortise cylinders are machined from solid brass bar stock, engineered and manufactured to OEM specifications. Master key and grand master key quality, and are re-keyable to original manufacturers systems. The broad selection of models and components within our line provides you with the flexibility to cover numerous applications.

Features:

• Mortise Cylinder — Keyed:
• 14 finishes - 03, 03P, 04, 05, 10, 10B, 15, 26, 26D, 28, 29, 32, 32D, 46
• 31 keyways
• 17 cams
• 11 lengths listed below
• Thread size: 1.150 x 32 UNS.
• Cylinder face: 1.360 (34.5mm) diameter
• Factory master keying/construction master keying available
• Mortise Cylinders — Dummy
• 14 finishes - 03, 03P, 04, 05, 10, 10B, 15, 26, 26D, 28, 29, 32, 32D, 46
• 11 lengths listed below
• Mortise Cylinders — Turnknob:
• 12 finishes – 03, 04, 05, 10, 10B, 26, 26D, 28, 29, 32, 32D, 46
• 11 lengths listed below
• 17 cams
• Mortise Cylinders — Captive Turnknob:
• One turnknob key, one conventional key per cylinder (Schlage or Weiser keys only)
• 2 finishes – 03, 26D
• 3 lengths listed below
• 17 cams
• Mortise Cylinders — ADA Turnknob:
• 3 finishes – 03, 10B, 26D
• 10 lengths listed below
• 17 cams

Cam and Tailpieces:

• 1: Standard
• 2: Adams Rite
• 3: Clover
• 4: Narrow
• 5: Marks cam
• 6: Yale
• 7: Sargent offset
• 10: Long standard
• 11: 14PR-RM
• 12: 22PR-A-RM
• 13: 22PR-E-RM
• 14: Long lazy action
• 15: Schlage L
• 16: Sargent/Yale
• 17: Segal/Emhardt
• 18: Lori deadbolt
• 19: Clover Corbin/Russwin Best
• 20: Adams Rite 4070
• 23: Falcon/Saflok
• 26: Extra long standard

Keying Codes:

• KA: All keyed alike
• KD: Keyed different
• KA2: Keyed alike in pairs
• KA4: Keyed alike in fours
• 0B: 0 bitted - blade height
• MK: Master keyed
• GMK: Grand master keyed
• CMK: Construction master keyed
• When requesting MK or GMK, an additional keying code is required (KA, KD, KA2, etc.) example: 7165AA2-26D-MK/KA2

Keyway:

• AA: Arrow
• NA: R1064E/Composite
• NB: 1014C/Composite
• CA: Corbin 60
• CB: Corbin 67
• CC: Corbin 77
• CE: Corbin/Russwin L4
• CD: Corbin 59
• UA: Ilco X1054K
• KS: Kwikset 1176
• LA: Lockwood 1004
• UB: Lori L100, Harloc 700, Eagle 11929
• UE: Lori Locksmith 80
• UD: Loricentric 90
• RB: Russwin D1
• RA: Russwin 981R
• GB: Sargent LA-LC
• GC: Sargent RA-RC
• GA: Sargent LA
• SC: Schlage C
• SE: Schlage E
• SF: Schlage F
• SX: Schlage C-K
• FA: Segal 9
• WA: Weiser Ez/Falcon
• WE: Weiser 1555
• YA: Yale 8 (999)
• YG: Yale GA
