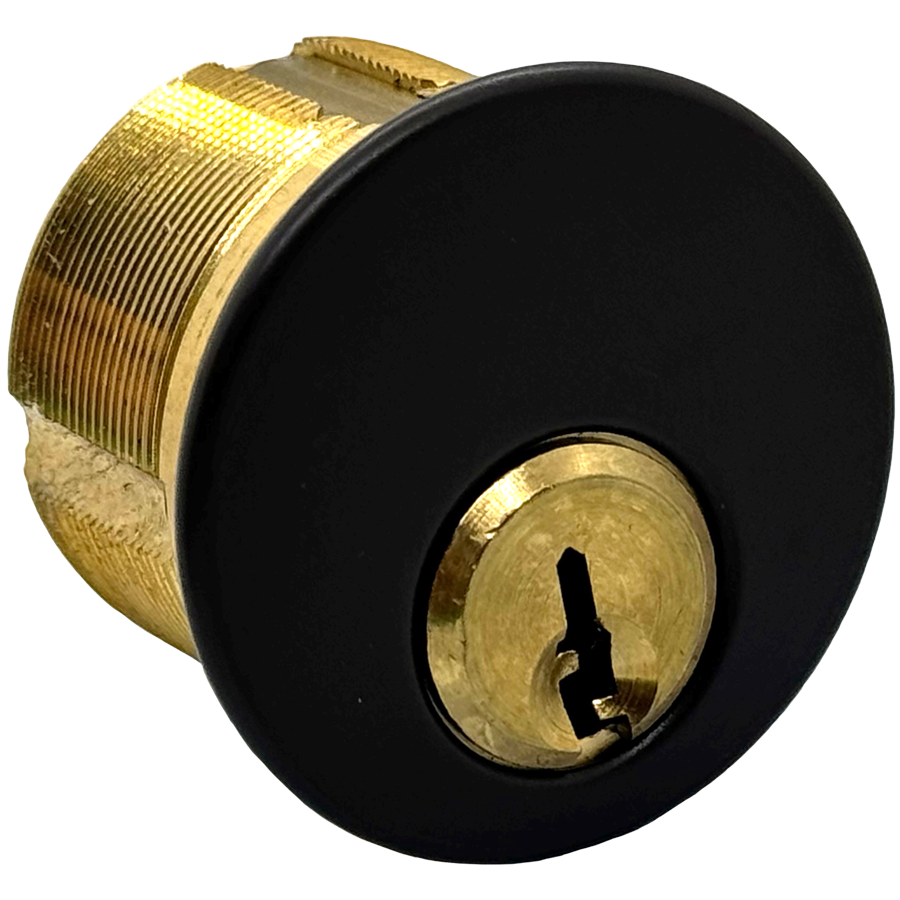

Dormakaba 7186EA-10B Schlage C123 1-1/8in Mortise Cylinder Adams Rite

Ilco Unican Corporation Dormakaba 7186EA-10B Schlage C123 1-1/8in Mortise Cylinder Adams Rite is a robust and versatile security solution designed to meet a wide range of locking needs. Crafted from solid brass bar stock, this mortise cylinder is engineered to OEM specifications, ensuring reliability and durability. Its re-keyable feature allows you to adapt it to original manufacturers’ systems, making it an ideal choice for both residential and commercial applications. This mortise cylinder is available in lengths ranging from 3/4" (19mm) to 2" (50.8mm) and comes drilled in configurations of 5 pin or 6 pin, with 7 pin options for specified lengths. It boasts Master Key and Grand Master Key quality, providing enhanced key management flexibility. The cylinder is furnished with Ilco® Look Alike® keys, simplifying replacement and duplication. Additionally, various cam and tailpieces are available, accommodating different locking mechanisms. The Dormakaba 7186EA-10B also offers a range of finishes, including Bright Brass, Satin Nickel, and Oil Rubbed Bronze, ensuring it complements your design preferences. Whether you’re a building professional or a knowledgeable homeowner, this mortise cylinder delivers reliable security without compromising on style or functionality.

Schlage C123 1-1/8in Mortise Cylinder Adams Rite

Ilco Mortise Cylinders are machined from solid brass bar stock, engineered and manufactured to OEM specifications. Master Key and Grand Master Key quality, and are re-keyable to original manufacturers systems. The broad selection of models and components within our line provides you with the flexibility to cover numerous applications.

Features:

• Mortise Cylinder:
• Rekeyable to original manufacturers systems
• 3/4" (19mm) to 1" (25.4mm) length drilled 5 pin, 1 1/8" (28.6mm) to 2" (50.8mm) length drilled 6 pin, 7 pin available for specified lengths
• Master Key and Grand Master Key quality
• Furnished with Ilco® Look Alike® Keys
• Dummy Mortise Cylinder: 4 Lengths - 15/16" (23.8mm) to 1 1/4" (31.7mm)
• Turnknob Mortise Cylinders:
• 10 Lengths - 15/16"(23.8mm) to 2" (50.8mm)
• Classroom and Captive Turnknob functions are available
• ADA Turnknob Mortise Cylinder:
• 10 Lengths - 15/16" (23.8mm) to 2" (50.8mm)
• Classroom functions are available

Cam and Tailpieces:

• 1 - Standard
• 2 - Adams Rite
• 3 - Clover
• 4 - Narrow
• 5 - Marks Cam
• 6 - Yale
• 7 - Sargent Offset
• 10 - Long Standard
• 11 - 14PR-RM
• 12 - 22PR-A-RM
• 13 - 22PR-E-RM
• 14 - Long Lazy Action
• 15 - Schlage L
• 16 - Sargent/Yale
• 17 - Segal/Emhardt
• 18 - Lori Deadbolt
• 19 - Clover Corbin/Russwin Best
• 20 - Adams Rite 4070
• 23 - Falcon/Saflok
• 26 - Extra Long Standard

Keying Codes:

• KA - All keyed alike
• KD - Keyed different
• KA2 - Keyed alike in pairs
• KA4 - Keyed alike in fours
• 0B - 0 bitted - Blade Height
• MK - Master keyed
• GMK - Grand master keyed
• CMK - Construction master keyed
• When requesting MK or GMK, an additional Keying Code is required (KA, KD, KA2, etc.) Example: 7165AA2-26D-MK/KA2

Keyway:

• AA - Arrow
• NA - R1064E/Composite
• NB - 1014C/Composite
• CA - Corbin 60
• CB - Corbin 67
• CC - Corbin 77
• CE - Corbin / Russwin L4
• CD - Corbin 59
• UA - Ilco X1054K
• KS - Kwikset 1176
• LA - Lockwood 1004
• UB - Lori L100, Harloc 700, Eagle 11929
• UE - Lori Locksmith 80
• UD - Loricentric 90
• RB - Russwin D1
• RA - Russwin 981R
• GB - Sargent LA-LC
• GC - Sargent RA-RC
• GA - Sargent LA
• SC - Schlage C
• SE - Schlage E
• SF - Schlage F
• SX - Schlage C-K
• FA - Segal 9
• WA - Weiser Ez/ Falcon
• WE - Weiser 1555
• YA - Yale 8 (999)
• YG - Yale GA

Finishes:

• 03 / 605 - Bright Brass
• 04 / 606 - Satin Brass
• 05 / 609 - Antique Brass
• 10 / 612 - Satin Bronze
• 10B / 613 - Oil Rubbed Bronze
• 15 / 619 - Satin Nickel
• 26 / 625 - Bright Chrome
• 26D / 626 - Satin Chrome
• 28 / 628 - Clear Aluminum Anodized
• 29 / 622 - Black Aluminum
• 32 / 629 - Bright Stainless Steel
• 32D / 630 - Satin Stainless Steel
• 46 / 624 - Duracolor Brown Aluminum
