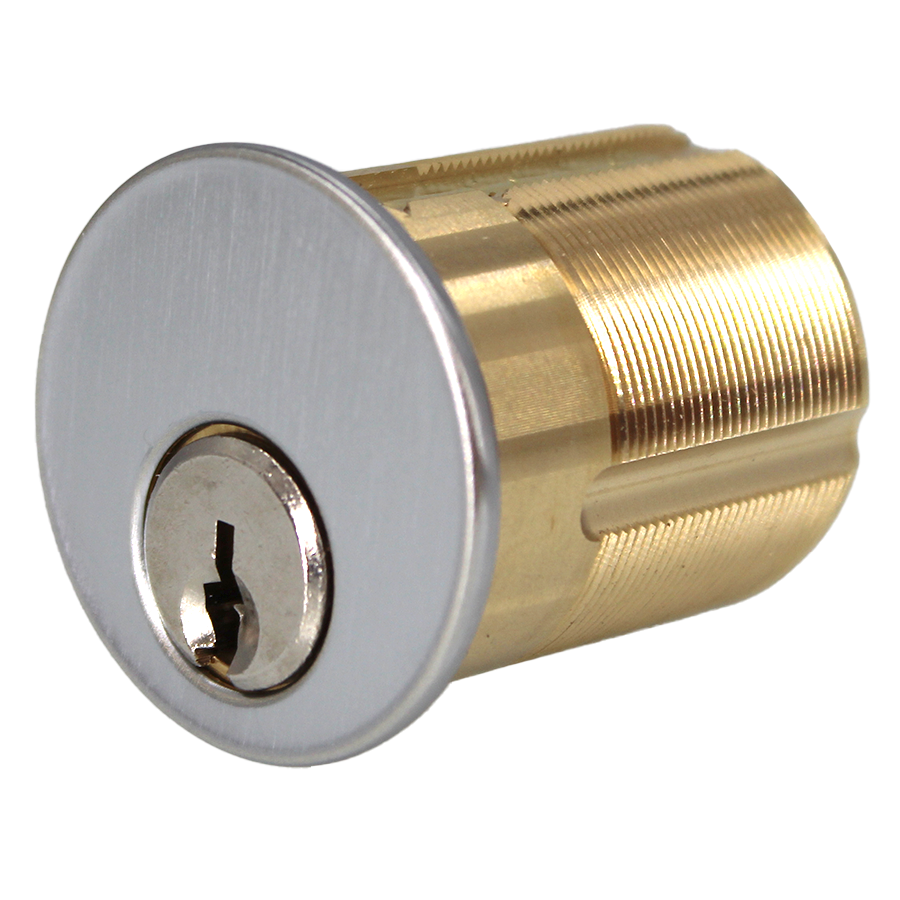

Dormakaba 7245SC-26D-KA2 Mortise Cylinder 1-1/2in 5-Pin Schlage C ST Cam

Ilco Unican Corporation Dormakaba 7245SC-26D-KA2 Mortise Cylinder offers a robust solution for your security needs. Crafted from solid brass bar stock, this cylinder is engineered to meet OEM specifications, ensuring durability and reliability. The 5-pin design accommodates Schlage C ST cam, making it a versatile choice for various applications. One of the standout features of this mortise cylinder is its rekeyable functionality, allowing you to adapt it to original manufacturer systems effortlessly. Available in lengths ranging from 3/4" (19mm) to 2" (50.8mm), this model caters to a wide array of installation requirements. It also boasts Master Key and Grand Master Key quality, providing an added level of control for property management. The cylinder comes equipped with Ilco® Look Alike® keys, enhancing convenience and compatibility. Various keying options, such as KA2, allow for pairs to be keyed alike, further streamlining access for multiple users. With a finish in Satin Chrome (26D), the Dormakaba 7245SC-26D-KA2 not only delivers on security but also complements modern aesthetics. Whether you're a building professional or a knowledgeable homeowner, this mortise cylinder is an ideal choice for enhancing your property's security framework.

Mortise Cylinder 1-1/2in 5-Pin Schlage C ST Cam

Ilco Mortise Cylinders are machined from solid brass bar stock, engineered and manufactured to OEM specifications. Master Key and Grand Master Key quality, and are re-keyable to original manufacturers systems. The broad selection of models and components within our line provides you with the flexibility to cover numerous applications.

Features:

• Mortise Cylinder:
• Rekeyable to original manufacturers systems
• 3/4" (19mm) to 1" (25.4mm) length drilled 5 pin, 1 1/8" (28.6mm) to 2" (50.8mm) length drilled 6 pin, 7 pin available for specified lengths
• Master Key and Grand Master Key quality
• Furnished with Ilco® Look Alike® Keys
• Dummy Mortise Cylinder: 4 Lengths - 15/16" (23.8mm) to 1 1/4" (31.7mm)
• Turnknob Mortise Cylinders:
• 10 Lengths - 15/16"(23.8mm) to 2" (50.8mm)
• Classroom and Captive Turnknob functions are available
• ADA Turnknob Mortise Cylinder:
• 10 Lengths - 15/16" (23.8mm) to 2" (50.8mm)
• Classroom functions are available

Cam and Tailpieces:

• 1 - Standard
• 2 - Adams Rite
• 3 - Clover
• 4 - Narrow
• 5 - Marks Cam
• 6 - Yale
• 7 - Sargent Offset
• 10 - Long Standard
• 11 - 14PR-RM
• 12 - 22PR-A-RM
• 13 - 22PR-E-RM
• 14 - Long Lazy Action
• 15 - Schlage L
• 16 - Sargent/Yale
• 17 - Segal/Emhardt
• 18 - Lori Deadbolt
• 19 - Clover Corbin/Russwin Best
• 20 - Adams Rite 4070
• 23 - Falcon/Saflok
• 26 - Extra Long Standard

Keying Codes:

• KA - All keyed alike
• KD - Keyed different
• KA2 - Keyed alike in pairs
• KA4 - Keyed alike in fours
• 0B - 0 bitted - Blade Height
• MK - Master keyed
• GMK - Grand master keyed
• CMK - Construction master keyed
• When requesting MK or GMK, an additional Keying Code is required (KA, KD, KA2, etc.) Example: 7165AA2-26D-MK/KA2

Keyway:

• AA - Arrow
• NA - R1064E/Composite
• NB - 1014C/Composite
• CA - Corbin 60
• CB - Corbin 67
• CC - Corbin 77
• CE - Corbin / Russwin L4
• CD - Corbin 59
• UA - Ilco X1054K
• KS - Kwikset 1176
• LA - Lockwood 1004
• UB - Lori L100, Harloc 700, Eagle 11929
• UE - Lori Locksmith 80
• UD - Loricentric 90
• RB - Russwin D1
• RA - Russwin 981R
• GB - Sargent LA-LC
• GC - Sargent RA-RC
• GA - Sargent LA
• SC - Schlage C
• SE - Schlage E
• SF - Schlage F
• SX - Schlage C-K
• FA - Segal 9
• WA - Weiser Ez/ Falcon
• WE - Weiser 1555
• YA - Yale 8 (999)
• YG - Yale GA

Finishes:

• 03 / 605 - Bright Brass
• 04 / 606 - Satin Brass
• 05 / 609 - Antique Brass
• 10 / 612 - Satin Bronze
• 10B / 613 - Oil Rubbed Bronze
• 15 / 619 - Satin Nickel
• 26 / 625 - Bright Chrome
• 26D / 626 - Satin Chrome
• 28 / 628 - Clear Aluminum Anodized
• 29 / 622 - Black Aluminum
• 32 / 629 - Bright Stainless Steel
• 32D / 630 - Satin Stainless Steel
• 46 / 624 - Duracolor Brown Aluminum
