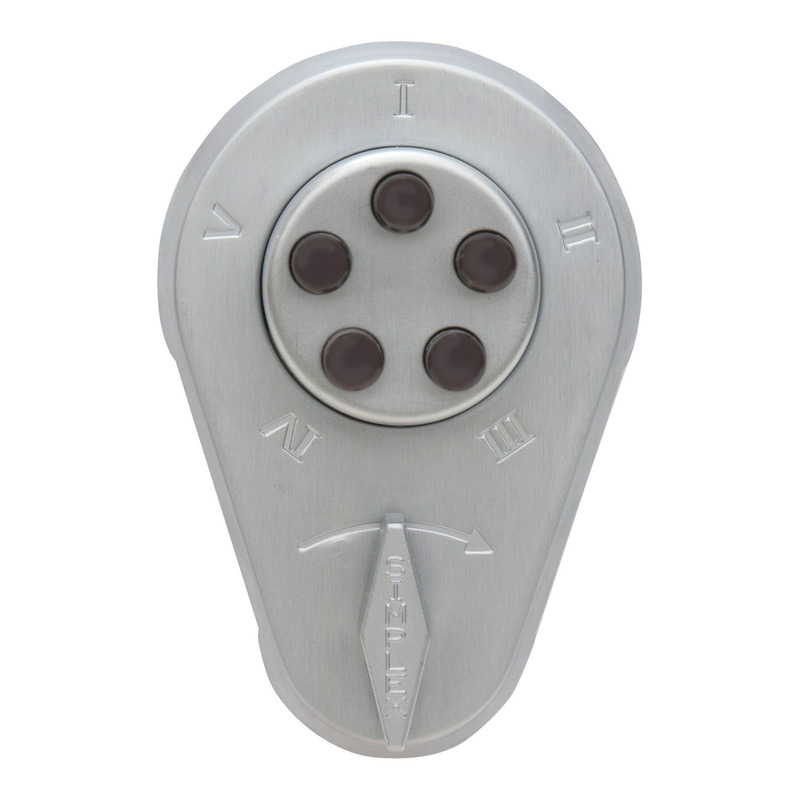

Dormakaba 9290000-26D-41 Thumbturn Auxiliary Lock

Kaba Access Dormakaba 9290000-26D-41 Auxiliary Lock w/Thumbturn combines security and convenience in a sleek satin chrome finish. Designed for doors ranging from 1-3/4" to 2-1/8" thick, this combination deadlatch is compliant with DOD standards, making it an ideal choice for both commercial and residential applications. The Simplex mechanical pushbutton lock eliminates the hassle of managing keys or cards, allowing you to control access effortlessly between public and private areas. Users can quickly change combinations without removing the lock, ensuring adaptable security solutions. The lock’s construction features a robust all-metal cast front housing, a force-resistant, clutch-protected thumbturn, and vandal-resistant solid metal pushbuttons on its numeric keypad. This model includes a 1" deadbolt and a 1/4" deadlocking spring latch, with options for various handing configurations to suit right-hand doors. It also comes with a strike plate for outswing doors and a cast box strike for inswing doors, while weather-resistant durability ensures reliable performance in various conditions. Backed by a 1-year warranty, the Kaba Access Dormakaba 9290000-26D-41 Auxiliary Lock is a dependable choice for enhancing security without sacrificing ease of use.

Auxiliary Lock w/Thumbturn

Combination Deadlatch, 1-3/4" to 2-1/8" Thick Doors, DOD Compliant, Satin Chrome

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

Deadbolt models must be manually relocked.

• Construction: All metal cast front housing, force-resistant, clutch-protected thumbturn, metal exterior trim plate
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Field reversible latch; invert the lock for right-hand doors; roman numerals are easily read in either orientation
• Backset: 2 9⁄16" (65 mm) for outswing doors, 2½" (64 mm) for inswing doors
• Latch: 1" (25 mm) deadbolt; ⅝" deadlocking spring latch
• Strike: Includes strike plate for outswing doors, cast box strike for inswing doors; metal door frames require the optional surface mortise box strike or use of an adapter kit
• Durability: Weather resistant
•
• Warranty: 1-year warranty

Resources

• Simplex 900 Series Cut Sheet
