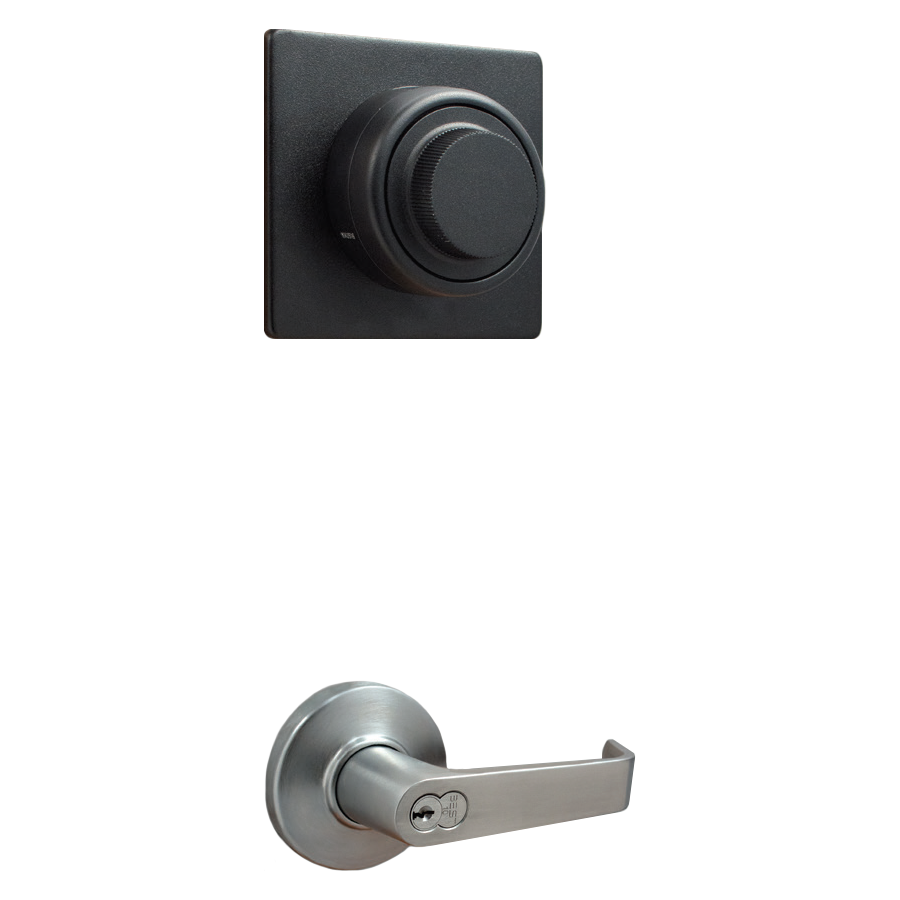

Dormakaba DKXLA1DNIA1A2Z/521026 DKX-10 Cylindrical Lock Type 2 RH

Kaba Mas Corp Dormakaba DKXLA1DNIA1A2Z/521026 DKX-10 Cylindrical Lock Type 2 RH is engineered to meet the rigorous requirements of federal specification FF-L-2890C, delivering unparalleled security for areas occupied by government and cleared contractor personnel. This Type II lock, approved by the General Services Administration (GSA), integrates a CDX-10 with a BEST grade 1 heavy-duty cylindrical lock, suitable for both inswing and outswing doors. The DKX-10 ensures the simultaneous retraction of both the secondary cylindrical lock dead latch and the CDX-10 primary deadbolt, maintaining compliance with security, fire, and life safety codes, as well as the Americans with Disabilities Act (ADA). With integrated electrified trim, this lock allows for through-the-door wiring, facilitating electronic access control and a request to exit switch. Installation is straightforward, making it accessible for various applications. The DKX-10 features a back-lit LCD viewer for ease of use in low-light conditions and is compatible with all GSA-approved FF-L-2740B combination locks. Additionally, the versatile 9K model offers multiple keyed cylinder configurations and backset options to accommodate diverse installation needs. Training and certification are available upon request to ensure optimal use of this advanced security solution.

DKX-10 Cylindrical Lock Type 2 RH

The DKX series was developed to meet changes to federal specification FF-L-2890C. These changes included a life-safety requirement to locking devices used to protect any secure areas occupied by Government and/or cleared contractor personnel. The type II, approved by The General Services Administration (GSA), is comprised of a CDX-10 which is utilized with a BEST, grade 1 - heavy duty, cylindrical lock for use on both inswing and outswing doors. Together, it ensures simultaneous retraction of both the secondary cylindrical lock dead latch and the CDX-10 primary dead bolt. The combination of both products ensures compliance with codes for security, fire, and life safety as well as adheres to requirements of the American with Disabilities Act (ADA). The DKX Series Type II includes integrated electrified trim that allows through-the-door wiring for electronic access control and a request to exit switch.

Features:

• Combines two proven, time-tested and approved products - Kaba Mas CDX-10 and BEST 9K
• Offers non-complicated installation and ease of operation
• The 9K product is available with 2-3/4", 3-3/4" and 5" backsets to support a wide array of installations
• All available with black dial and dial ring mounting plate
• The CDX-10 features a convenient back-lit LCD viewer to assist in low light usage conditions
• The DKX Series is designed to accept all GSA approved FF-L-2740B combination locks
• The 9K is available in three (3) keyed cylinder configurations; standard key in lever, with small format interchangeable core (SFIC) or Yale large format removeable core configurations
• Training and certification are available upon request

Resources

• Cut Sheet
• CutSheet
