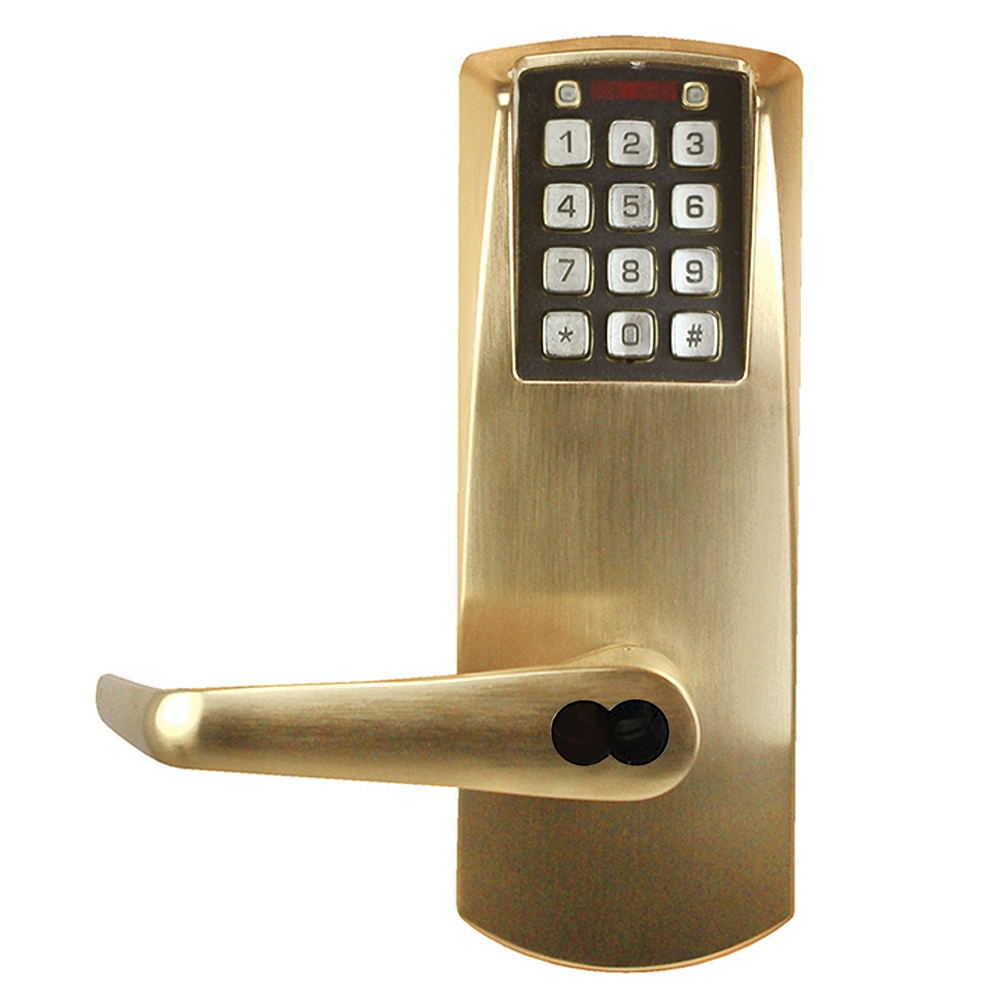

Dormakaba E201UBLL-606-41 Eplex 2000 Exit Trim

Kaba Access E201UBLL-606-41 Eplex 2000 Exit Trim offers a robust solution for enhanced security with its heavy-duty commercial Grade 1 lockset. Designed with a solid cast exterior housing and levers, this exit trim is engineered for extensive use in both indoor and outdoor applications. It features up to 100 programmable access codes and records 1,000 audit events, eliminating the challenges and costs associated with traditional keys and cards. This non-handed trim comes pre-assembled for left-hand door installations but can easily be adjusted in the field. It supports both cylindrical and mortise backsets, with options for 2¾" (70 mm) and 2⅜" (60 mm) configurations, catering to various door needs. The cylindrical models include a standard ½" (13 mm) throw latch and an optional ¾" (19 mm) throw latch, ensuring flexibility and security. Installation is straightforward, requiring a minimum stile width of 5" (127 mm). The Kaba 1539 6-pin cylinder is compatible with Schlage "C" keyways, while the interchangeable core allows for easy upgrades with small format options. Finished in a sophisticated matte brass (606/US4), the Kaba Access Eplex 2000 Exit Trim is a perfect blend of function and style, suitable for commercial environments.

Eplex 2000 Exit Trim

E-Plex 2000 Exit Trim, 100 Access Codes, 1,000 Audit Events, Rim, Mortise and SVR Devices, 6/7-Pin SFIC Prep, Less Core, Satin Brass

Eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 access codes

• Construction: Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
• Handing: Non-handed, pre-assembled for left-hand door installation—easily changed in the field
• Backset:
  • Cylindrical: 2¾" (70 mm) backset, 2⅜" (60 mm) backset
  • Mortise: 2¾" (70 mm) backset
  • Exit Trim Model: Varies by Exit Device
• Latches:
  • Cylindrical Models: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
  • Mortise Models: ¾" (19 mm) latch, 1" (25 mm) deadbolt (optional)
• Strikes: Cylindrical locks packaged standard with both ANSI A115.3 "T" Strike and A115.2 ASA Strike
• Minimum Stile Required: 5" (127 mm)
• Key-in-Lever Cylinder: Kaba 1539 6-pin cylinder—Schlage "C" Keyway
• Interchangeable Core: Small format—Best and equivalent (6 or 7-pin length); cylinder not included
