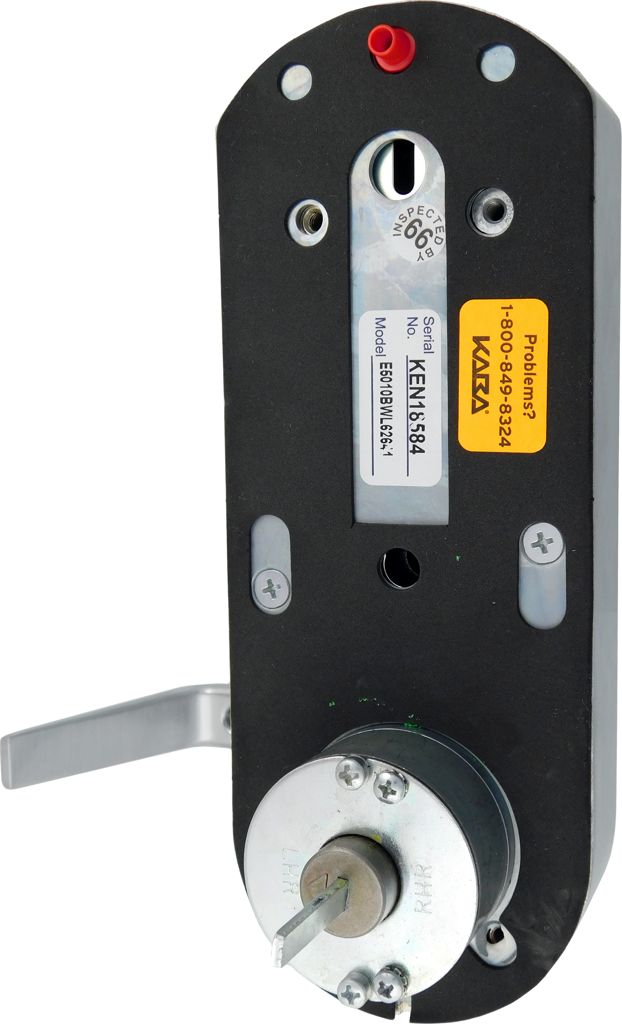

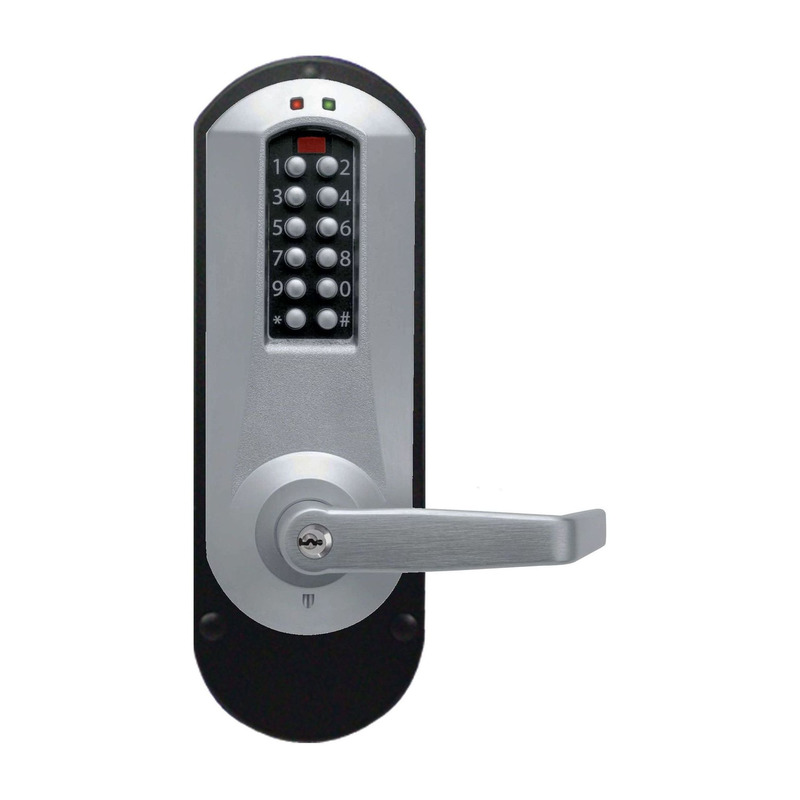

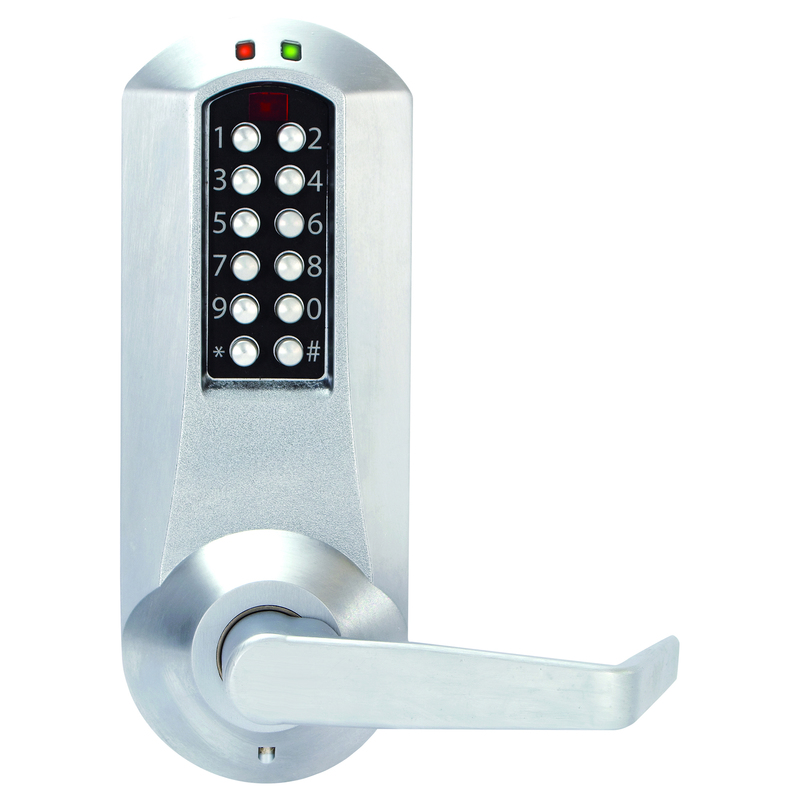

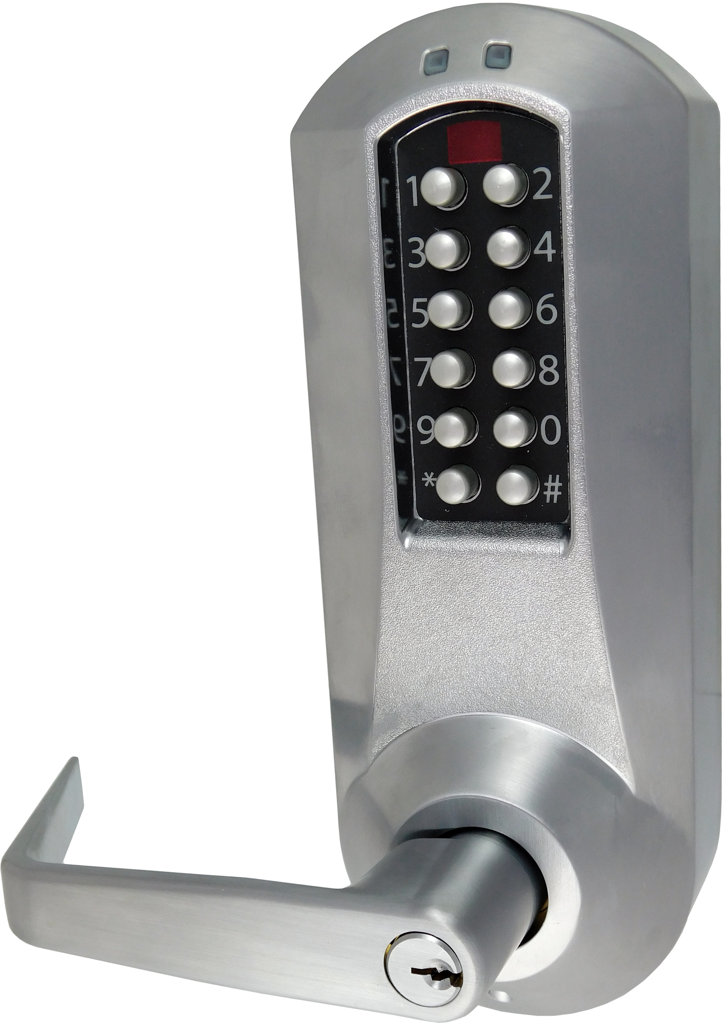

Dormakaba E5010XSWL-626-41 Pushbutton Lock

• No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing the lock from the door
• Handing: Non-handed, pre–assembled for left–hand door installations–easily changed in the field
• Key Override: Key-in-lever cylinders, small format interchangeable cores, large format removable cores
• Operation Modes:
• Pushbutton Access
• Passage (select models)—allows access without using the lock access code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
• Exit Trim—may be "dogged" if Exit Device allows
• Lockout (select models)—disables the lock from the inside so that the code cannot be used to gain access. Access is permitted using the key override only when in this mode (5067 model only).
• Direct Drive Design: Clutch free design—minimizes friction and wear
• Economical: A cost effective access control solution

Features

• Exit Trim—may be "dogged" if Exit Device allows
• Handing: Non-handed, pre–assembled for left–hand door installations–easily changed in the field
• Operation Modes:
• Programming: Lock is easily programmed via keypad without removing the lock from the door
• Pushbutton Access
• Lockout (select models)—disables the lock from the inside so that the code cannot be used to gain access. Access is permitted using the key override only when in this mode (5067 model only).
• No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
• Economical: A cost effective access control solution
• Passage (select models)—allows access without using the lock access code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
• Key Override: Key-in-lever cylinders, small format interchangeable cores, large format removable cores
• Number of Codes: Single access code—one easy-to-manage code for all users
• Direct Drive Design: Clutch free design—minimizes friction and wear
