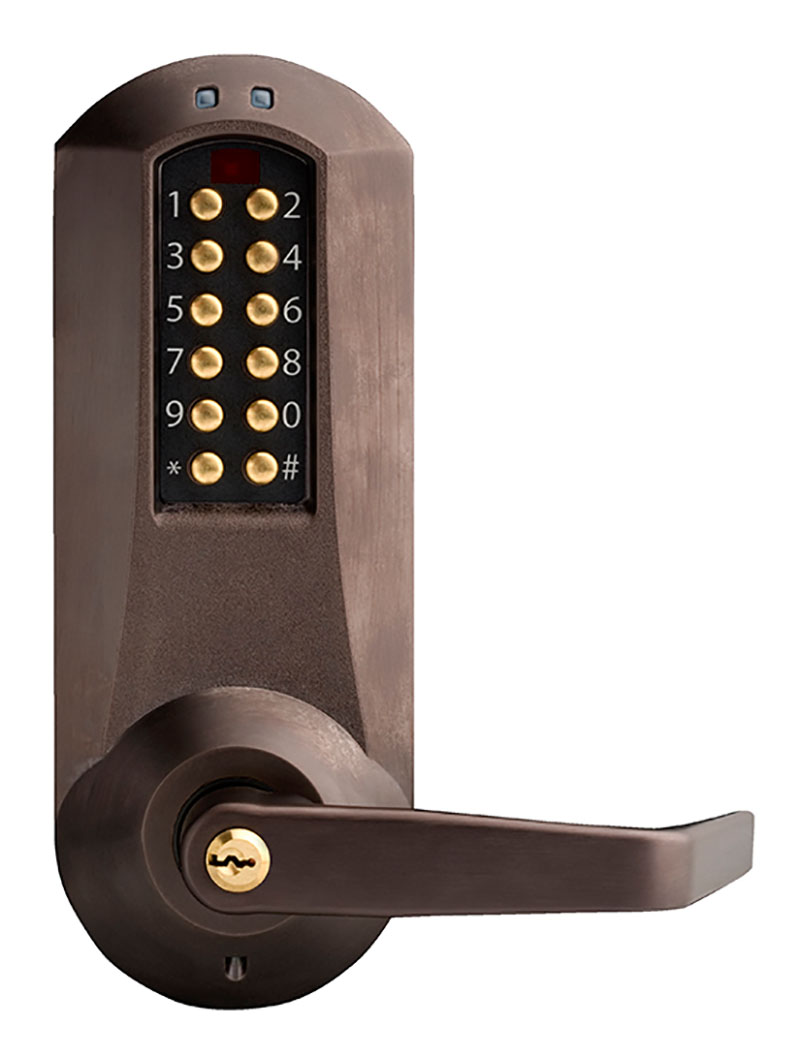

Dormakaba E5066XSWL-744-41 Eplex 5000 Mortise Lock

Kaba Access Dormakaba E5066XSWL-744-41 Eplex 5000 Mortise Lock is designed to streamline access control while providing robust security. This heavy-duty mortise lock features a Winston lever and supports up to 100 access codes, accommodating diverse user needs. With the ability to track 3,000 audit events, it helps ensure accountability and security in commercial settings. Constructed with solid cast housings and levers, the E-Plex 5000 is wear-tested for extensive use in both indoor and outdoor applications. Its non-handed design allows for easy installation on left-hand doors and flexibility in exit trim configurations. The lock offers multiple backset options, including 2 1/8" and 2 3/8" for cylindrical applications and 2 3/4" for mortise setups, ensuring adaptability for various door types. The E-Plex 5000 includes features like a 1/2" latch (with an optional 3/4" latch) and a 3/4" latch with a 1" deadbolt for mortise applications. Finished in a dark bronze with brass accents, this lock not only enhances security but also adds aesthetic appeal to any entryway. Ideal for commercial environments, the Kaba Access E-Plex 5000 Mortise Lock is a reliable choice for modern access management needs.

Eplex 5000 Mortise Lock

E-Plex 5000 Mortise Lock, Winston Lever, 100 Access Codes, 3,000 Audit Events, KIL, Schlage C Keyway, Dark Bronze with Brass Accents

E-Plex 5000 Mortise Lock, Winston Lever, 100 Access Codes, 3,000 Audit Events, KIL, Schalge C Keyway, Dark Bronze with Brass Accents

The E-Plex 5000 Series eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.

• Construction: Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
• Door Handing:
  • Cylindrical and E-Plex Mortise—Non-handed, pre-assembled for left-hand door installations—easily changed in the field
  • Exit Trim—Non-handed
• Backsets:
  • Cylindrical—2 1⁄8" (70 mm), 2 3⁄8" (60 mm)
  • Mortise—2 3⁄4" (70 mm)
  • Exit Trim—Varies by exit device type
• Latch:
  • Cylindrical—1⁄2" (13 mm) latch, 3⁄4" (19 mm) latch (optional)
  • Mortise—3⁄4" (19 mm) latch, 1" (25 mm) deadbolt (optional)
