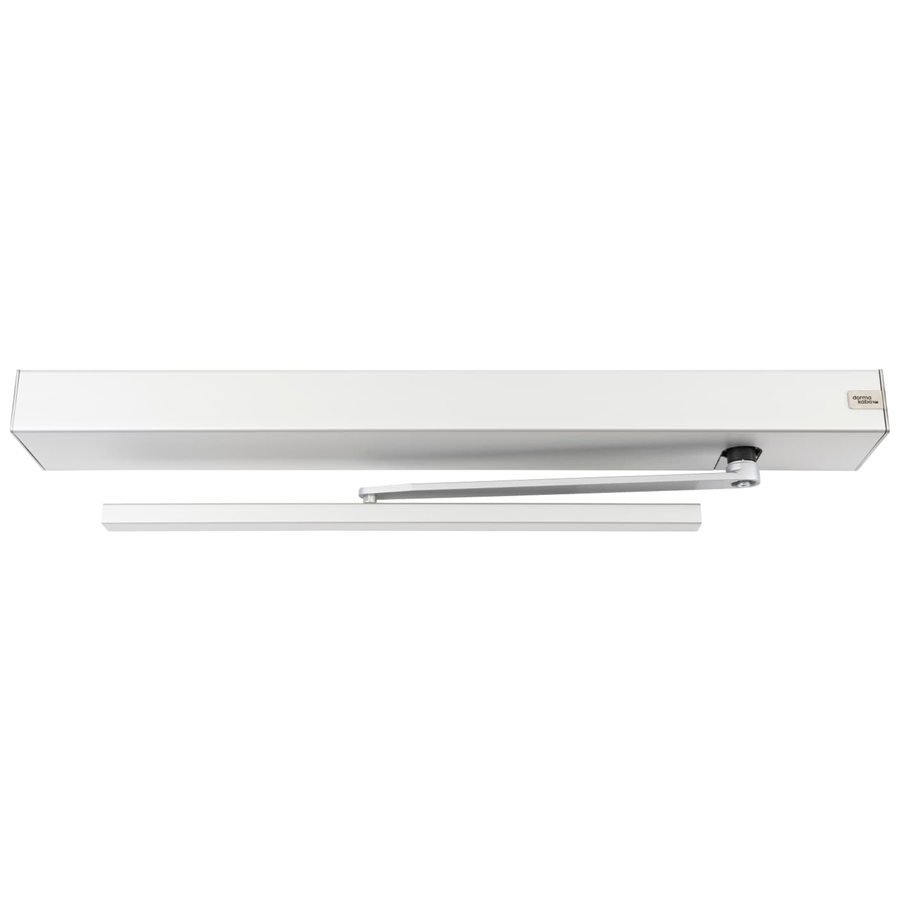

Dormakaba ED100LE 34IN SINGLE PULL CL 34in Medium-Heavy Duty Low Energy Door Operator with Pull Arm, Clear Anodized

DormaKaba Architectural Hardware ED100LE 34IN SINGLE PULL CL Door Operator with Pull Arm is an exceptional solution for enhancing accessibility in various settings, including commercial buildings, hospitals, schools, and hotels. This low energy swing door operator utilizes an innovative electromechanical drive, providing a quiet and efficient transition to touch-free access. Its design accommodates both new and existing swing doors, utilizing a push plate, wave plate, or other actuator devices for seamless operation. The ED100LE offers advanced power assist, ensuring minimal push forces-down to ANSI size 1-while guaranteeing reliable closing. It is fully ADA-compliant, opening doors at controlled speeds and forces to ensure safety for all users, including children and the elderly. With features like a blow-open function for smoke ventilation, a permanent hold-open option, and an onboard power supply, the ED100LE is designed for convenience and versatility. This operator supports doors weighing up to 600 lbs and can handle widths between 28" and 48". Built to last, it has been independently tested to 1 million cycles and operates within an ambient temperature range of 5°F to 122°F. The compact design, with a footprint up to 65% smaller than other operators, enhances its appeal without compromising performance.

Door Operator with Pull Arm, 34in, Medium to Heavy Duty Low Energy, Clear Anodized CL

The ED100LE low energy swing door operator employs an innovative, and super-quiet, electromechanical drive that is a perfect solution for facilities who want a quick, quiet, and painless transition from manual doors to touch-free access such as commercial buildings, hospitals, schools, hotels and multifamily buildings. This swing door operator can automate new or existing swing doors through the use of a push plate, wave plate, or other actuator devices. The ED100LE's advanced automatic power assist combines minimal push forces (as low as ANSI size 1) with reliable closing. All common applications for outswing and inswing doors — either with push arm or pull arm. The ED100LE is easy to install and makes existing doors easily accessible.

Features:

• The ED100LE combines advanced power assist, reliable closing, and special firmware capabilities to help manage the combination of wind and building pressure.
• The operator is especially helpful for children, the elderly, persons with disabilities, or those carrying objects or pushing carts. This fully ADA-compliant device opens doors at precisely controlled speeds and forces, assuring safety for all users.
• The ED100LE also includes a blow-open feature for smoke ventilation (per NFPA code 92B), permanent hold-open, and an onboard power supply delivering 1.5 amps @ 24-volt DC, which eliminates the need for a secondary power supply. It includes twelve programmable options to accommodate even the most challenging door installations.
• In addition, the ED100LE low energy operator boasts a small footprint, up to 65 percent smaller than some other manufacturers' operators.
• Seamless control with integrated hardware power supply and relay.
• Independently tested to 1 million cycles
• Built-in door position status, indicating door open or door closed.
• Close and latch in case of power loss (adjustable closing speed on loss of power).
• Hardware pre-load functionality for reliable operation.
• Built-in interface for connection to any access control system.
• ED100LE offers full power durability in a low-energy setting.

Specifications:

• Header dimensions (H × W × L): 2-3/4" x 5-1/8" x 34" (Fine)
• Operator weight: 26.5 lb
• Internal power supply available for accessories: 24 volts DC ± 5% 1.5 Amps
• Maximum door opening angle: 110° (door stop recommended)
• Maximum wire size: 16 AWG for incoming power, 18 AWG for all other connections
• Maximum door weight: 600 lb at maximum door width of 48"
• Door width: Minimum by operator type 28" for surface applied Maximum 48"
• Reveal depth for pull arm with track: 1-3/16" (30 mm)
• Reveal depth for standard push arm: 0 to 9-3/4"
• Handing: Non-Handed
• Power supply: 115 volts AC ± 10%, 50/60 Hz maximum 3.3 Amps, (SELV)
• Ambient temperature: 5°F – 122°F
