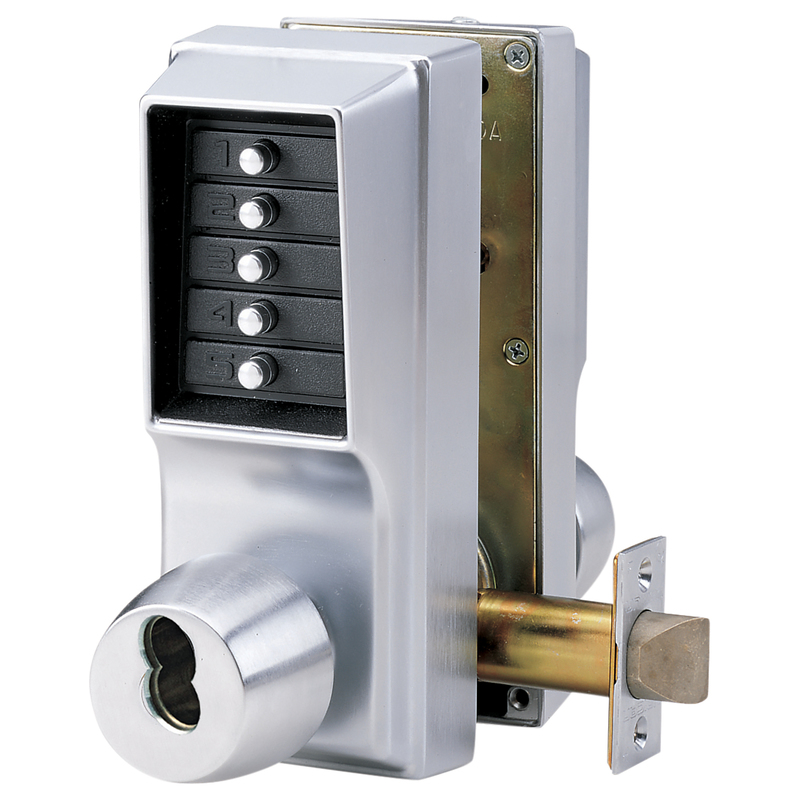

Dormakaba EE1021M/EE1021M-26D-41 Pushbutton Mechanical Lock

Kaba Access Dormakaba EE1021M/EE1021M-26D-41 Mechanical Pushbutton Lock combines robust construction with user-friendly features, making it an ideal choice for commercial settings. This heavy-duty cylindrical knob lock offers both combination and key override entry and exit, ensuring flexible access control. Designed with a satin chrome finish, it not only enhances security but also complements various architectural styles. The lock features a vandal-resistant numeric keypad with solid metal pushbuttons, ensuring durability in high-traffic areas. With a backset of 2¾ inches and a standard ½-inch throw latch, it accommodates a range of door thicknesses from 1¾ to 2¼ inches, with options for thicker doors. Factory-handed for left-hand doors, it can be easily reversed in the field to suit specific installation needs. The Dormakaba EE1021M is prepared for Medeco, Yale, ASSA, and Abloy LFIC cores, providing adaptability to existing key systems. Weighing in at 10.25 lbs., the lock includes a standard strike plate for straightforward installation. This product is perfect for building professionals seeking reliable, secure door hardware that meets the demands of commercial applications while offering ease of use and installation.

Mechanical Pushbutton Lock

Cylindrical Knob Lock, Combination or Key Override Entry, Combination or Key Override Exit, 2-3/4" Backset, 1/2" Throw Latch, Medeco/Yale/ASSA/Abloy LFIC Prep, Less Core, Satin Chrome

Provides interior and exterior access by combination.

• Construction: Heavy-duty cylindrical lock with cast front and back housings; cast knobs
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Door Handing: Factory-handed for left-hand doors; easily field reversible
• Backset: 2¾" (70 mm)
• Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
• Strike: Standard strike plate; ASA strike plate
• Door Preparation: ASA 161-door preparation with additional through bore holes
• Door Thickness: 1¾" (44 mm) to 2¼" (57 mm); modified lock for more than 2" (51) thick door (up to 2¼") available (specify when ordering)
• Minimum Stile Recommended: 5" (127 mm)
• Weight: 10.25 lbs. (4.6 kg)

Resources

• Simplex EE1000 Series Cut Sheet
