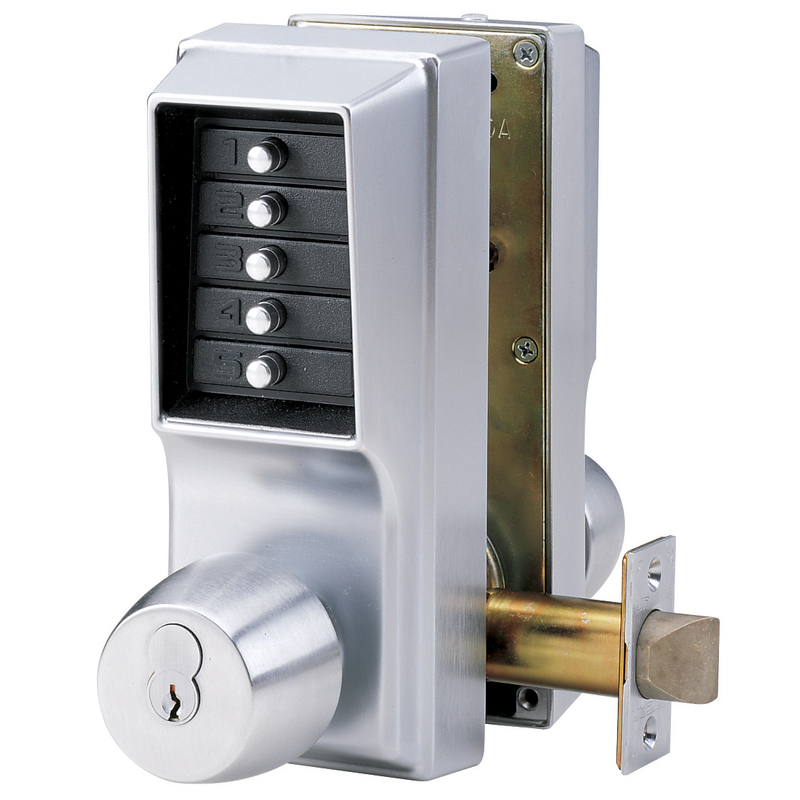

Dormakaba EE1021R/EE1021R-26D-41 Pushbutton Mechanical Lock

Kaba Access Dormakaba EE1021R/EE1021R-26D-41 Mechanical Pushbutton Lock presents a robust solution for secure access control, ideal for commercial applications. This heavy-duty cylindrical knob lock features a combination entry with key override, providing flexibility for both entry and exit. With a 2-3/4" backset and a standard ½" throw latch, it ensures reliable locking performance, while an optional ¾" throw latch offers added security. Designed with durability in mind, the lock boasts a cast front and back housing, complemented by vandal-resistant solid metal pushbuttons for the numeric keypad. The factory-handed design is optimized for left-hand doors but can be easily modified for right-hand use in the field. Suitable for door thicknesses ranging from 1¾" to 2¼", this lock is adaptable and accommodates various installation requirements. The Kaba Access EE1021R is compatible with Sargent LFIC prep and comes with a standard strike plate, ensuring seamless integration into existing door systems. Weighing 10.25 lbs., it combines strength and convenience, making it a reliable choice for professionals seeking high-quality door hardware solutions. With its satin chrome finish, it offers a sleek and modern appearance that complements any commercial environment.

Mechanical Pushbutton Lock

Cylindrical Knob Lock, Combination or Key Override Entry, Combination or Key Override Exit, 2-3/4" Backset, 1/2" Throw Latch, Sargent LFIC Prep, Less Core, Satin Chrome

Provides interior and exterior access by combination.

• Construction: Heavy-duty cylindrical lock with cast front and back housings; cast knobs
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Door Handing: Factory-handed for left-hand doors; easily field reversible
• Backset: 2¾" (70 mm)
• Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
• Strike: Standard strike plate; ASA strike plate
• Door Preparation: ASA 161-door preparation with additional through bore holes
• Door Thickness: 1¾" (44 mm) to 2¼" (57 mm); modified lock for more than 2" (51) thick door (up to 2¼") available (specify when ordering)
• Minimum Stile Recommended: 5" (127 mm)
• Weight: 10.25 lbs. (4.6 kg)

Resources

• Simplex EE1000 Series Cut Sheet
