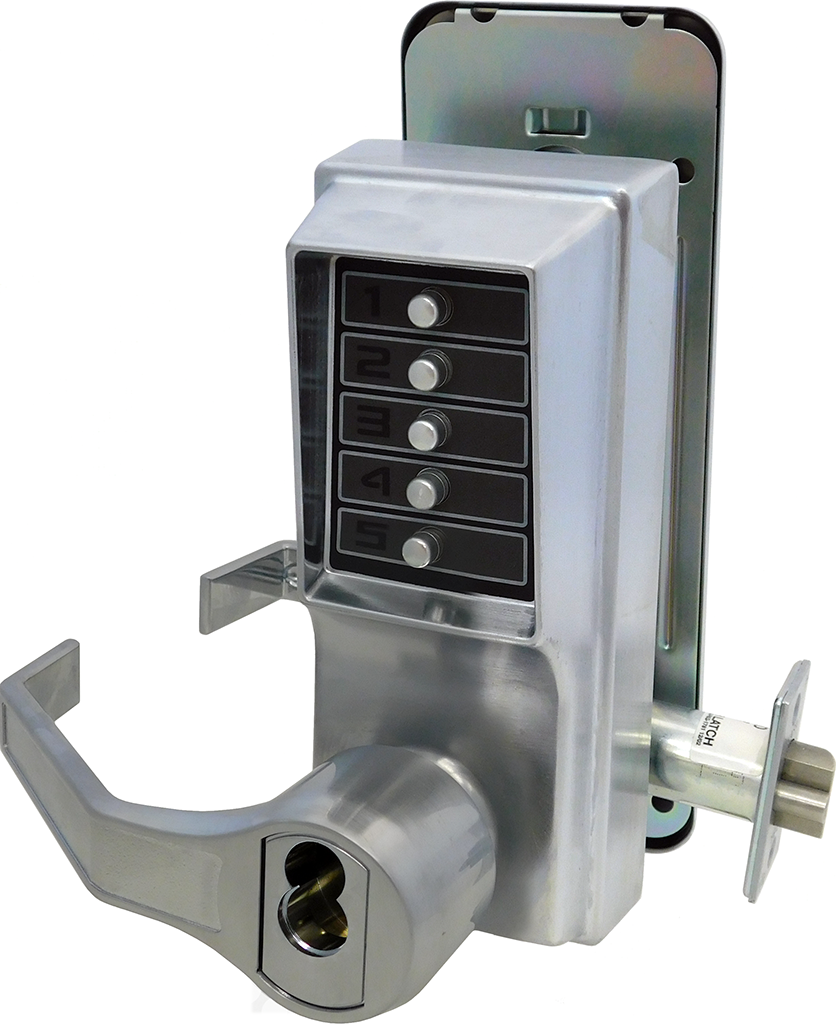

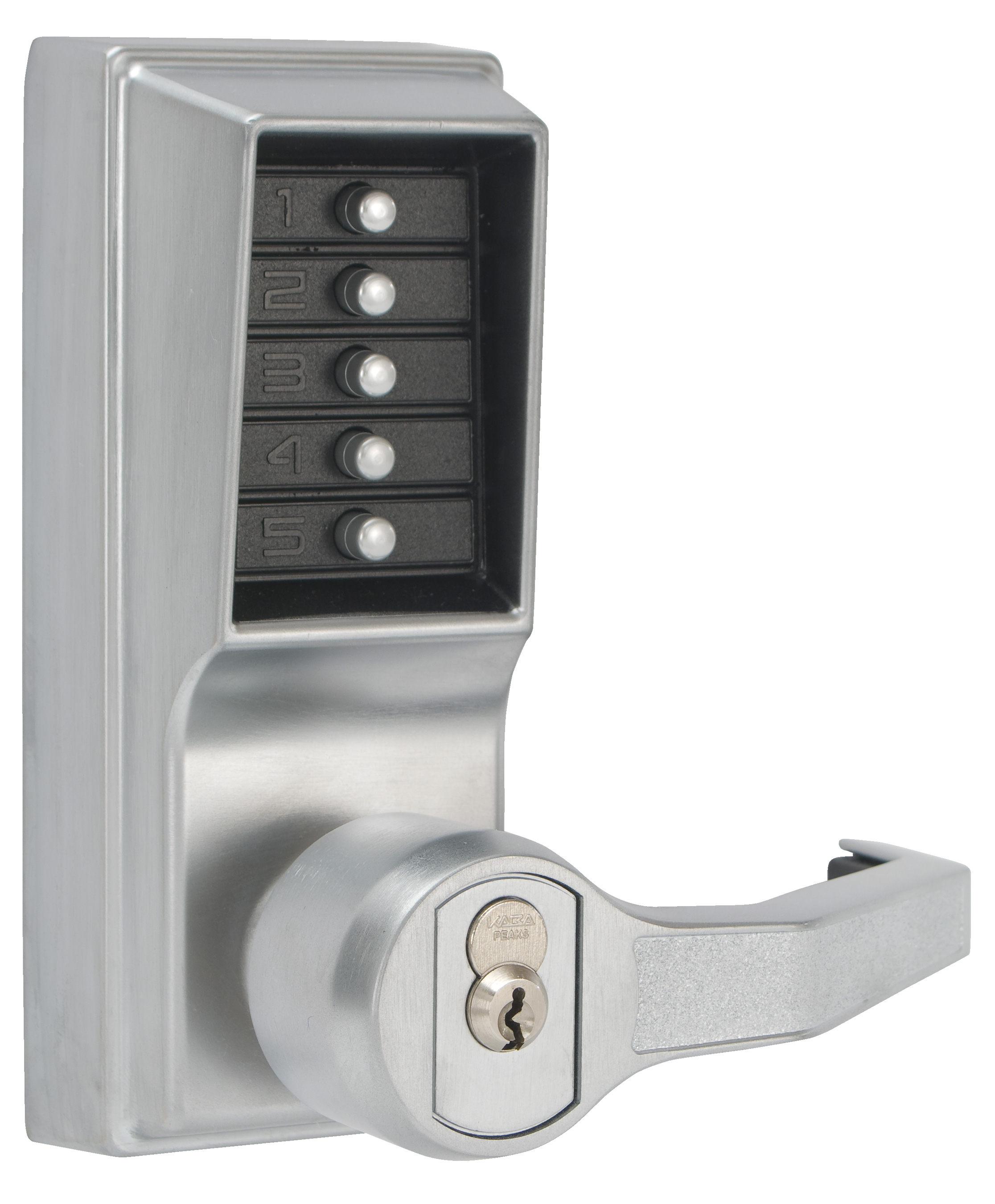

Dormakaba LL1021R26D Left Hand Pushbutton Lever Lock w/ Key Override, Satin Chrome, Sargent Prep

Simplex Dormakaba LL1021R26D Left Hand Mechanical Pushbutton Lever Lock with Key Override offers a secure and user-friendly solution for managing access between public and private spaces. This fully mechanical lock requires no batteries, eliminating ongoing maintenance costs and ensuring reliability. With a single access code, it simplifies management for all users, allowing quick changes to combinations in seconds without removing the lock from the door. Constructed with vandal-resistant solid metal pushbuttons, the LL1021R is built to withstand daily use while maintaining a sleek satin chrome finish. It is designed for easy installation on wood or metal doors, accommodating door thicknesses from 1-3/8" to 2-1/4". The lock features a 2-3/4" backset and is compatible with ASA 161 door preparations, making it versatile for various applications. With dimensions of 3-1/8" x 7-3/8" and a 3-13/16" projection, this lock fits seamlessly into any environment while maintaining functionality. The Simplex LL1021 comes with a 3-year limited warranty, ensuring peace of mind with your investment. Whether for commercial or residential use, this pushbutton lockset combines practicality and durability, making it an excellent choice for secure access control.

Left Hand Mechanical Pushbutton Lever Lock with Key Override Sargent Prep and 2-3/4" Backset Satin Chrome Finish

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

• Fully Mechanical Lock Eliminates the Material and Labor Expense of Battery Replacements
• Single Access Code—One Easy-to-Manage Code for All Users
• Lock is Easily Programmed Via Keypad Without Removing Lock From the Door
• Vandal Resistant, Solid Metal Pushbuttons
• Easily Installs on Wood or Metal Doors. ASA 161 Door Preparation with Additional Through Holes
• Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
• Number of Codes: Single access code-one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door
• Handing: Factory-handed; not field reversible
• Key Override (Optional):
• Interchangeable Cores: Small format-Best and equivalents (6 or 7-pin length); core not included
• Removable Cores: Large format-Medeco/ASSA/Yale/Abloy (5 or 6-pin length); Corbin Russwin (6-pin length); Schlage, and Sargent; core not included
• Operation Modes:
• Pushbutton Access
• Passage (select models)-allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
• Privacy (select models)-disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only when in this mode.
• Economical: A cost effective access control solution
